• Model NO.：QMB206F-GH
• Motor Power：＞10Kw
• Cutter Shaft：2
• Spindle Speed：＜5000rpm
• Process Type：Medium-Sized Processing
• Certification：CE, ISO
• After-sales Service：3 years
• Certificate：CE & ISO
• Product name：double planer
• Transport Package：Plywood Carton
• Specification：3520X1530X1850
• Trademark：Qingcheng
• Origin：China
• HS Code：84659200
• Production Capacity：10000set,Y

Basic Info.

Model NO. QMB206F-GH Motor Power ＞10Kw Cutter Shaft 2 Spindle Speed ＜5000rpm Process Type Medium-Sized Processing Certification CE, ISO After-sales Service 3 years Certificate CE & ISO Product name double planer Transport Package Plywood Carton Specification 3520X1530X1850 Trademark Qingcheng Origin China HS Code 84659200 Production Capacity 10000set/Y

Product Description

2-side Planer/Double Side Planer/Woodworking planer Woodworking Machinery for Solid wood/wooden Furniture

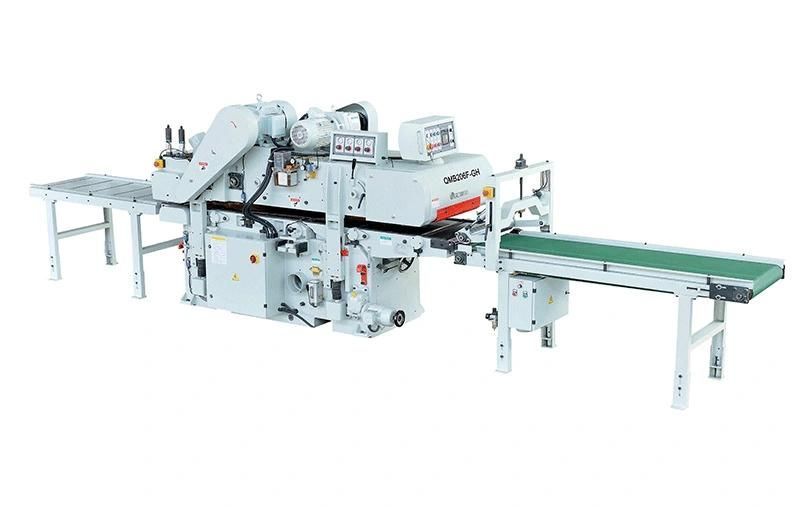

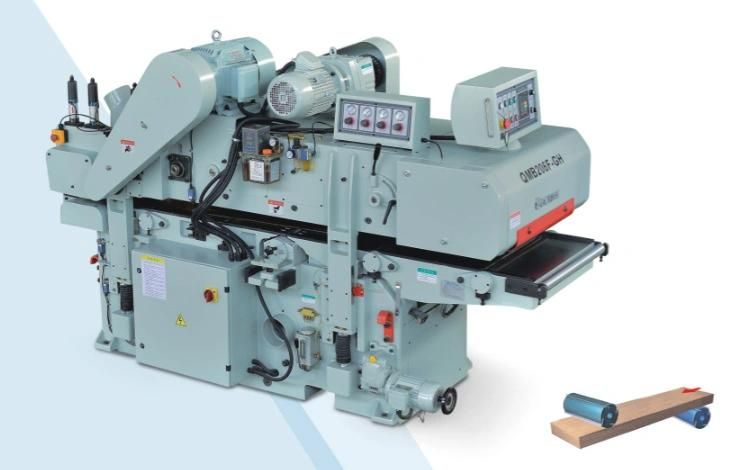

QMB206F/GH Wood Planer






Specifications	Unit	QMB206F-GH
Working width	mm	630
Working thickness	mm	10-170
Min.working length	mm	310
Max cutting depth(Upper and Bottom)	mm	53
Feeding speed	m/min	10-40
spindle speed	r/min	5800
spindle cutting dia	mm	Φ125
Total power	kW/HP	30.75/41
Spindle motor	kW/HP	/
Top Spindle motor	kW/HP	1520
Bottom Spindle motor	kW/HP	1115
Front blade spidle motor	kW/HP	/
Back blade spidle motor	kW/HP	/
Feeding motor	kW/HP	4/5.5
Lifting motor	kW/HP	0.75/1
Suction hood dia	mm	4*Φ150
Overall dimensions	mm	3120X1180X1830
Weight	kg	3600

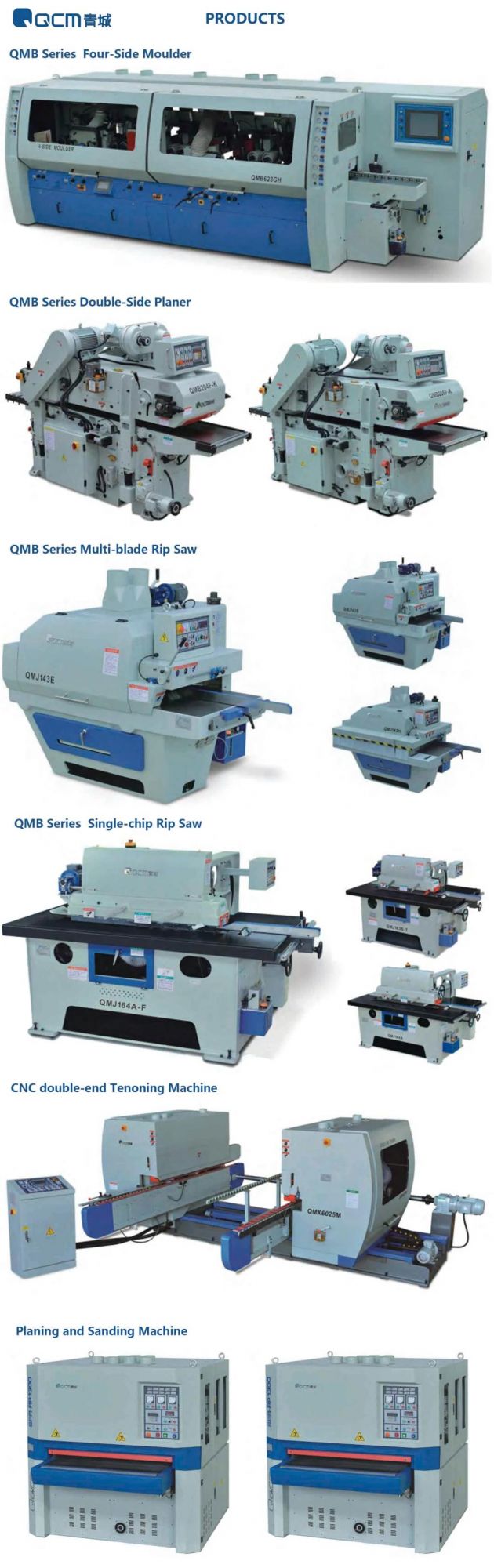

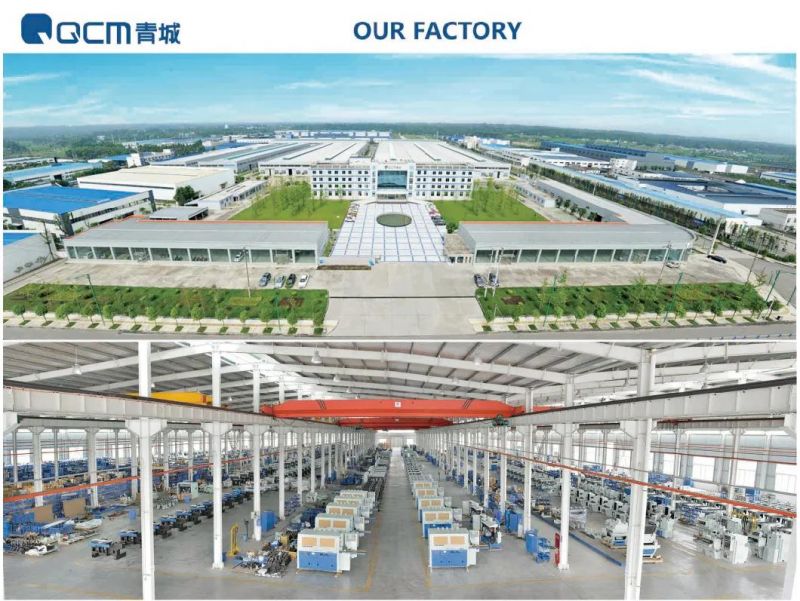

Qingcheng Machinery Co.,LTD established in 1970 which are speclializing in producing all kinds of woodworking machines, like Four Side Moulder, Double Side Planer, Automatic Muti-blade Rip Saw, Automatic Single-side Rip Saw and Double-end Tenoning Machine, Wood Planer etc.

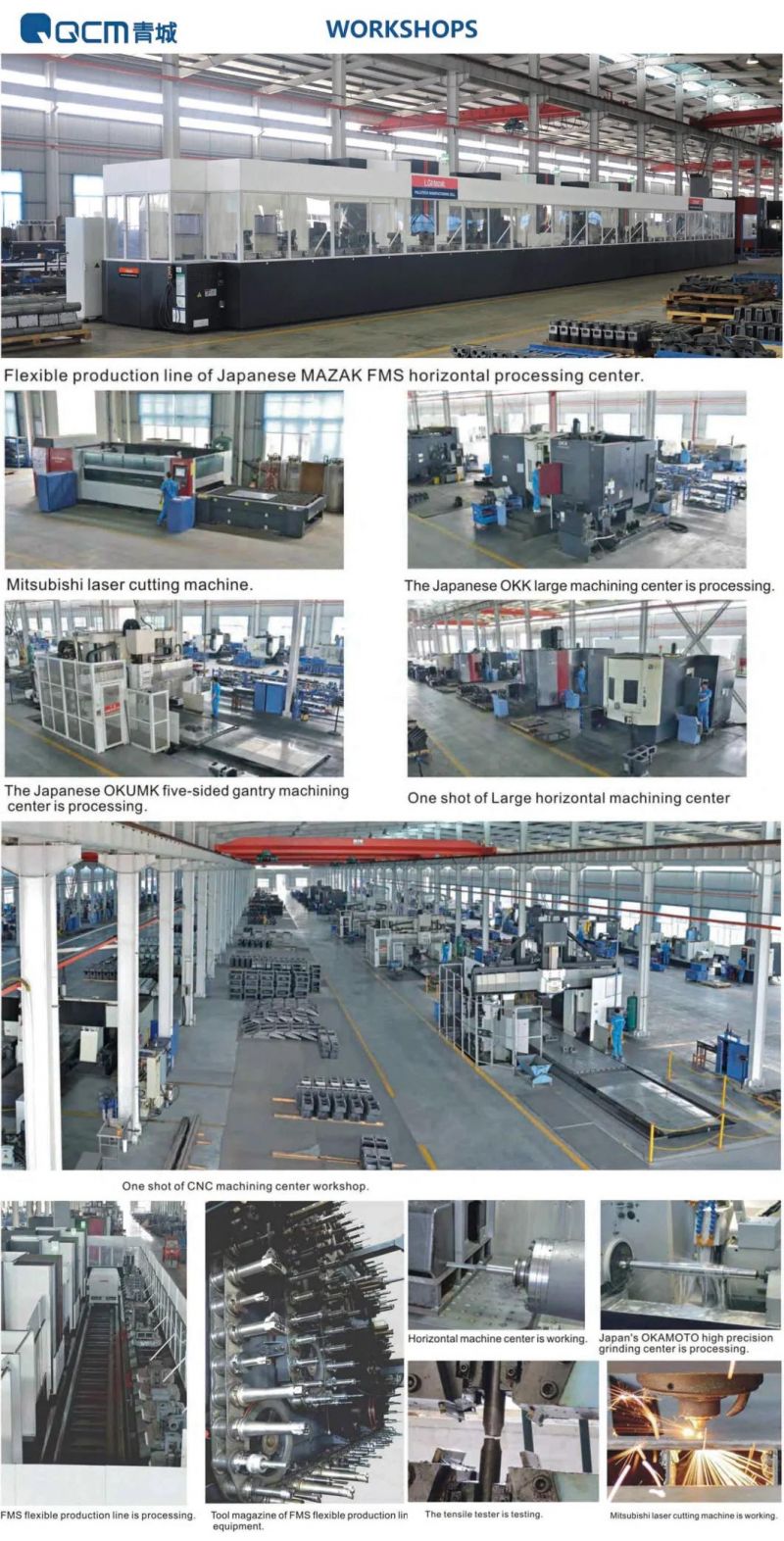

It's been 50years since we have devoted our-self to the development and manufacturing of woodworking machinery. As a top manufacturer in wood machinery, we insist on investment on research and develop and equipment. We have purchased vertical machining centers, muti-function CNC lathes produced by Japan Mazak, horizontal machining centers of Japan MAKINO, Japanese gantry machining centers of OKUMA, and laser cutting machines from Mitsubishi.

Those advanced equipment insure you precision, performance and durability, with mass production in big quantity. So that we can insure our customers fast delivery time, high quality and perfect performance.






FAQ

Below FAQ for your reference, if you have any further questions, we are always here for you.

1, Manufacturer or Trading company?
Yes, we are professional machine producer since 1970.During the last 50 years, we devoted our-self to the development and manufacturing of woodworking machinery with passion and innovation. You will be always welcomed to visit our factory.

2, What's your payment term?
30% deposit and 70% balance should be paid before delivery.

3, How about your after-sale service?
Our engineers are available to service overseas to provide professional technical support.

4, Warranty of double planer?
Its warranty is 12 months.

5, What's your leading time?
Within 2 days for regular stocked machine after receiving deposit.
2 months for OEM machines.

7, What's your delivery term?
---FOB shanghai/Ningbo
