• Model NO.：QMB523W
• Motor Power：＞10Kw
• Cutter Shaft：5
• Spindle Speed：＞5000rpm
• Process Type：Medium-Sized Processing
• Certification：CE, ISO
• After-sales Service：3 years
• Certificate：Ce & ISO
• Product name：planer
• Transport Package：Plywood Carton
• Specification：4680x1850x1830
• Trademark：Qingcheng
• Origin：China
• HS Code：84659200
• Production Capacity：5000set,Y

Basic Info.

Model NO. QMB523W Motor Power ＞10Kw Cutter Shaft 5 Spindle Speed ＞5000rpm Process Type Medium-Sized Processing Certification CE, ISO After-sales Service 3 years Certificate Ce & ISO Product name planer Transport Package Plywood Carton Specification 4680x1850x1830 Trademark Qingcheng Origin China HS Code 84659200 Production Capacity 5000set/Y

Product Description

Universal Spindle 4-side Moulder/Four-Side Moulder/Woodworking planer/Moulder Machinery For Solid wood

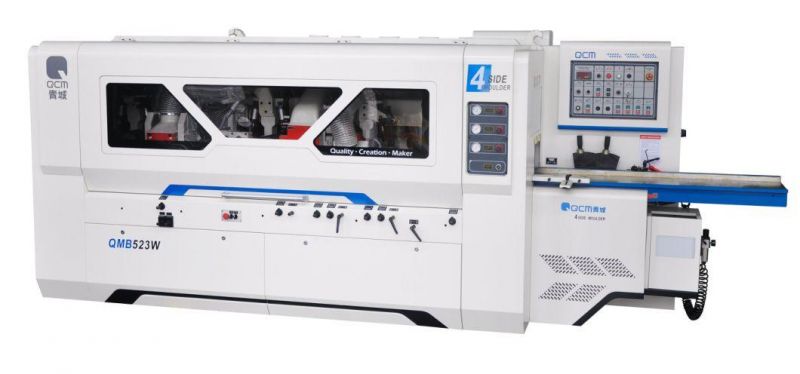

QMB523W Planer


Specifications	Unit	QMB523W
Working width	mm	20-230
Working thickness	mm	8-160
Min.working length(intermittent/continuous)	mm	700/400
Dia of spindle	mm	Φ40
Dia of feeding roller	mm	Φ140
Feeding speed	m/min	8-33
Rotation speed of spindle	r/min	6800
Cutter dia of first bottom cutter	mm	Φ125
Left/Right vertical cutter	mm	Φ108-Φ200
The first upper cutter	mm	Φ108-Φ200
The Second upper cutter	mm	/
Back bottom cutter	mm	/
Universal spindle	mm	Φ108-Φ160
Total power	kW/HP	38.25/51
The first bottom cutter	kW/HP	5.5/7.5
Left vertical cutter	kW/HP	7.5/10
Right vertical cutter	kW/HP	5.5/7.5
The First upper cutter	kW/HP	7.5/10
The second upper cutter	kW/HP	/
The second bottom cutter	kW/HP	/
Universal spindle	kW/HP	7.5/10
Feeding motor	kW/HP	4/5.5
Beam lifting motor	kW/HP	0.75/1
upper cutter lifting motor	kW/HP	/
Radial adjustment of the vertical spindle	kW/HP	/
Rear pressing plate elevation	kW/HP	/
Side feeding motor	kW/HP	/
Belt conveyor	kW/HP	/
Disc conveyor	kW/HP	/
Suction hood dia	mm	5*Φ150
Air supply pressure	Mpa	0.6
Overall dimensions	mm	4680x1850x1830
Weight	kg	5500

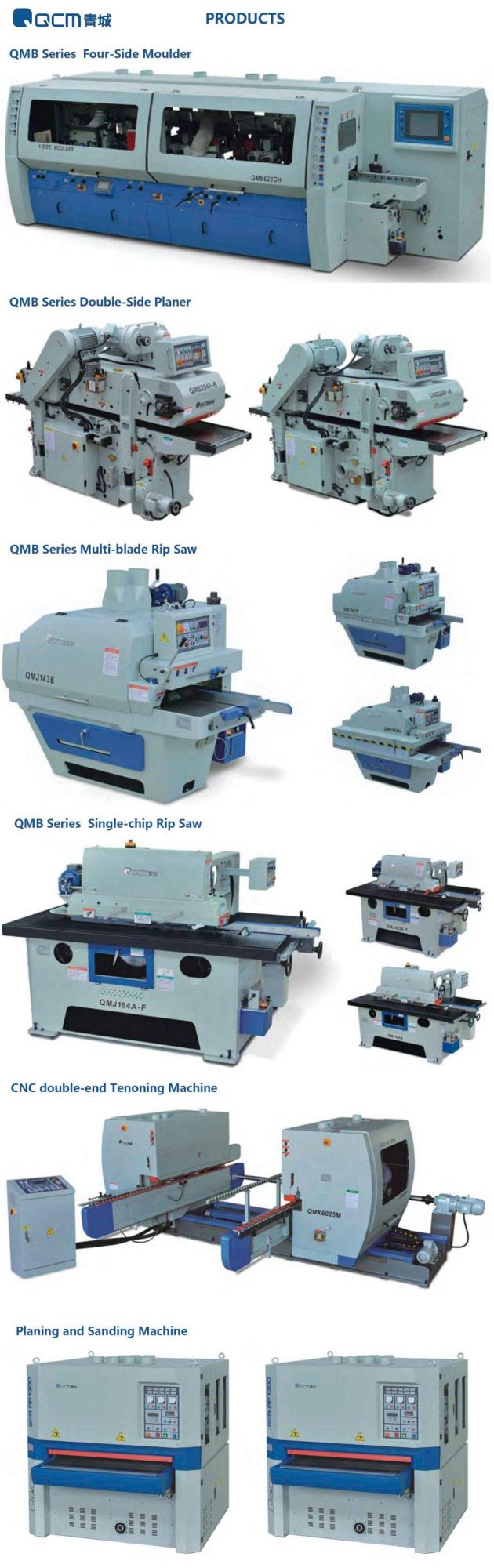

Qingcheng Machinery Co.,LTD established in 1970 which are speclializing in producing all kinds of woodworking machines, like Four Side Moulder, Double Side Planer, Automatic Muti-blade Rip Saw, Automatic Single-side Rip Saw and Double-end Tenoning Machine, Wood Planer etc.

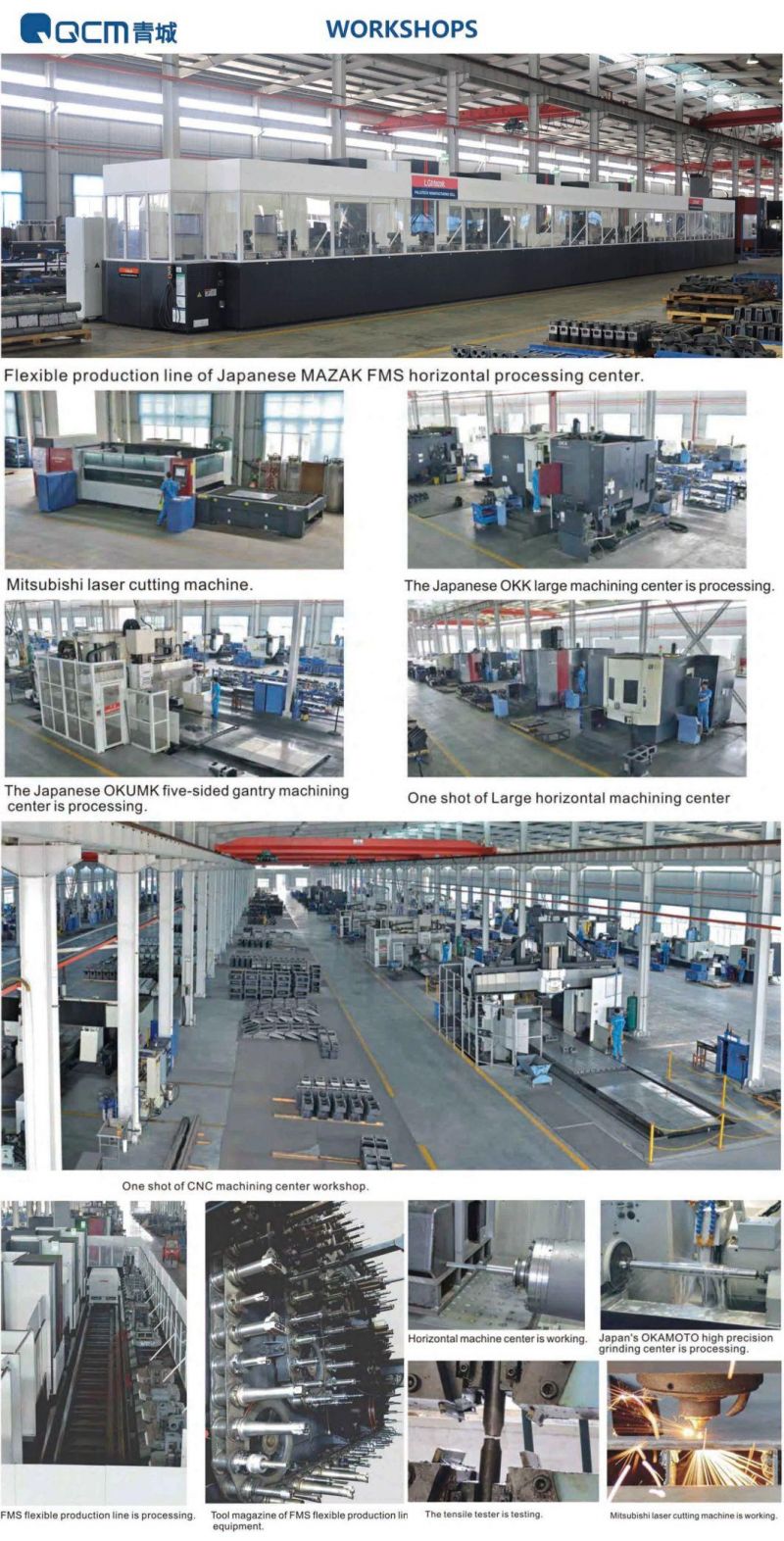

It's been 50years since we have devoted our-self to the development and manufacturing of woodworking machinery. As a top manufacturer in wood machinery, we insist on investment on research and develop and equipment. We have purchased vertical machining centers, muti-function CNC lathes produced by Japan Mazak, horizontal machining centers of Japan MAKINO, Japanese gantry machining centers of OKUMA, and laser cutting machines from Mitsubishi.

Those advanced equipment insure you precision, performance and durability, with mass production in big quantity. So that we can insure our customers fast delivery time, high quality and perfect performance.






FAQ

Below FAQ for your reference, if you have any further questions, we are always here for you.

1, Manufacturer or Trading company?

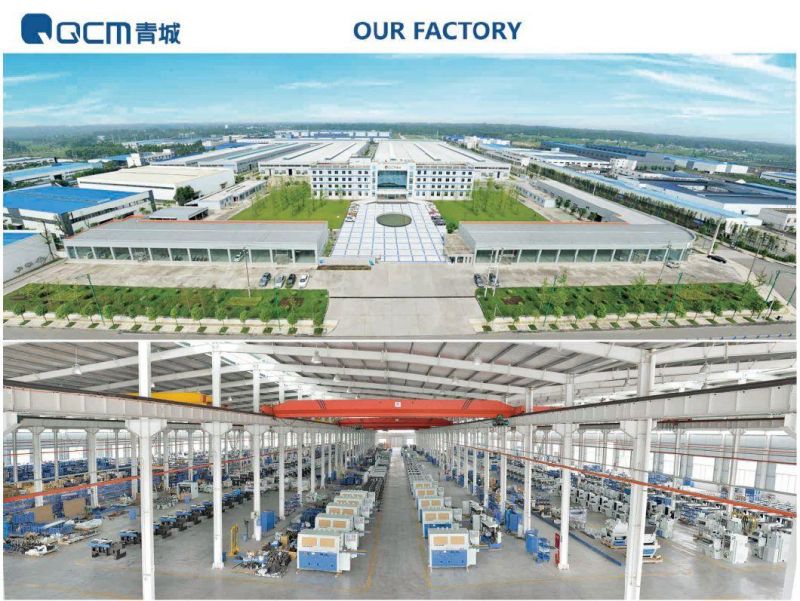

Yes, we are professional machine producer since 1970.During the last 50 years, we devoted our-self to the development and manufacturing of woodworking machinery with passion and innovation. You will be always welcomed to visit our factory.

2, What's your payment term?
30% deposit and 70% balance should be paid before delivery.

3, How about your after-sale service?
Our engineers are available to service overseas to provide professional technical support.

4, Warranty of planer moulder?
Its warranty is 12 months.

5, What's your leading time?
Within 2 days for regular stocked machine after receiving deposit.
2 months for OEM machines.

7, What's your delivery term?
---FOB shanghai/Ningbo
