Woodworking Machinery

Brush Sanding Machine with 1300mm Working Width

QINGDAO SOSN MACHINERY CO., LTD.
  • Automatic Grade:Automatic
  • Variable Speed:Variable Speed
  • Certification:CE, ISO
  • Customized:Non-Customized
  • Condition:New
  • Color:Iron Grey

Base Info

  • Model NO.:Sk1300-P6
  • Working Width:1300mm
  • Min. Working Length:500mm
  • Working Thickness:2-150mm
  • Polishing Roll Diameter:300mm
  • Polishing Roller Speed:Frequency Conversion
  • Feeding Speed:2.5-12.5m,Min
  • Total Motor Power:15.47kw
  • Net Weight:4600kg
  • Transport Package:Strong Stretch Film
  • Specification:3600*2100*2100mm
  • Trademark:SOSN
  • Origin:China
  • Production Capacity:200 Sets ,Month

Description

Basic Info.

Model NO. Sk1300-P6 Working Width 1300mm Min. Working Length 500mm Working Thickness 2-150mm Polishing Roll Diameter 300mm Polishing Roller Speed Frequency Conversion Feeding Speed 2.5-12.5m/Min Total Motor Power 15.47kw Net Weight 4600kg Transport Package Strong Stretch Film Specification 3600*2100*2100mm Trademark SOSN Origin China Production Capacity 200 Sets /Month

Product Description

SK1300-P6 brush sanding machine with 1300mm working width
6 working groups: 2 disc+2 horizontal + 2 vertical
Working video:
https://youtu.be/VgRHIZDOW-8

https://youtu.be/bk_4sooFplE
https://youtu.be/5y3JxLnp0nI
Brush Sanding Machine with 1300mm Working Width

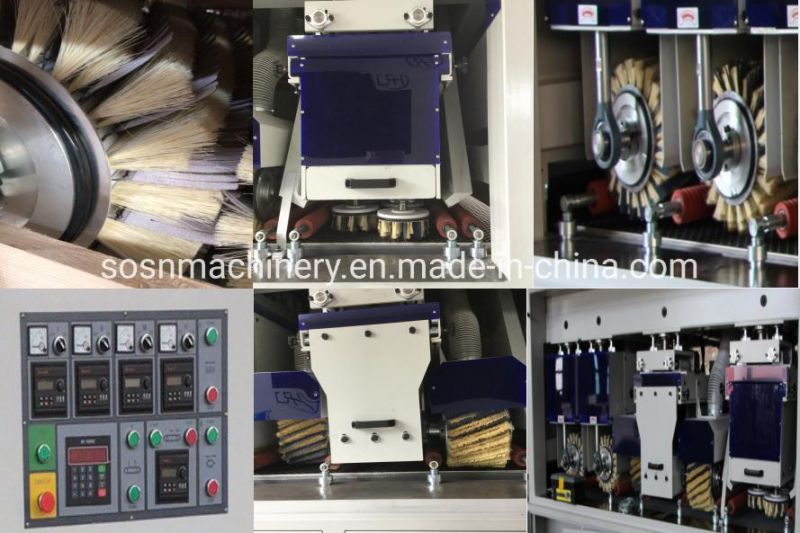

Button control


1).Features:

The vertical and horizontal combination type abnormity sander needle has excellent sand cutting effect for wooden doors, cabinet doors, shutters, furniture, photo frames and carved furniture parts.
-- vertical and horizontal combined type special sanding machine can effectively solve the problems of engraving furniture parts and vertical sand mark of cupboard door.
-- this machine adopts the concept of modular design abroad, each sanding  unit uses frequency conversion speed regulation, to meet the requirements of different parts processing technology, so that the effect of sand is more perfect.
-- each group of sanding units designed for withdrawable rack or replacement of sand, emery cloth sanding components can be more portable, easy operation and maintenance.
-- models have two sets of lifting devices. The first set a table to achieve the overall adjustment of integral lifting height of sand, second sets of devices can make each sanding unit lift alone, in order to meet the different workpiece sanding process requirements, make the sanding effect more perfect.

2).Configuration:
-- Germany Bosch converter
-- Switzerland ribben gause
-- Chint electric
-- Mexico sisal

3).Technical parameters:
Working width1300mm
Min. working length500mm
Working thickness2-150mm
Polishing roll diameter300mm
Polishing roller speedFrequency conversion
Feeding speed2.5-12.5m/min
Total motor power15.47kw
Disk motor power1.5KW*1
Horizontal roller motor 1.5KW*2
Spiral roller motor power3KW *2
Lifting motor 0.37KW*4
Table lifting motor0.55KW
Conveyor motor2.2KW
Swing motor0.37KW *2
Brush disc diameterφ180mm*20
Cross brush diameterφ350mm*35
Brush roller diameterφ300mm*45
Dust outlet φ120mm*8
Overall dimensions3600*2100*2100mm
Net weight4600kg

4).Machine details for your reference:

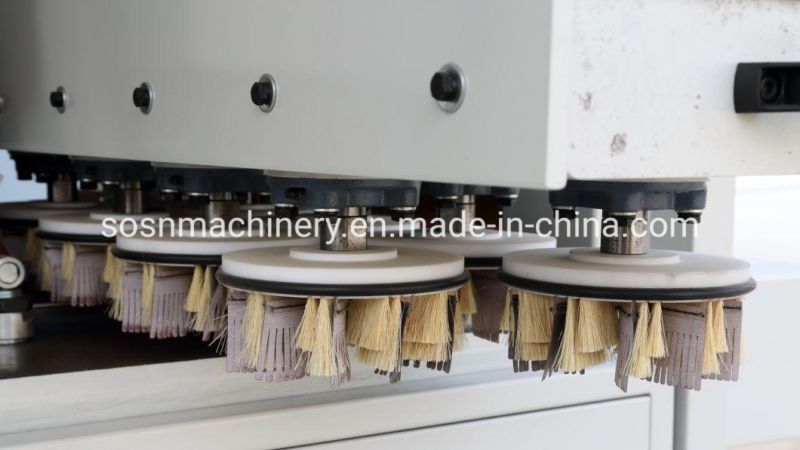

Brush Sanding Machine with 1300mm Working Width The two disc brush sanding unit is for brushing the grooves with light force, and will not damage the surface structure.
 Brush Sanding Machine with 1300mm Working Width

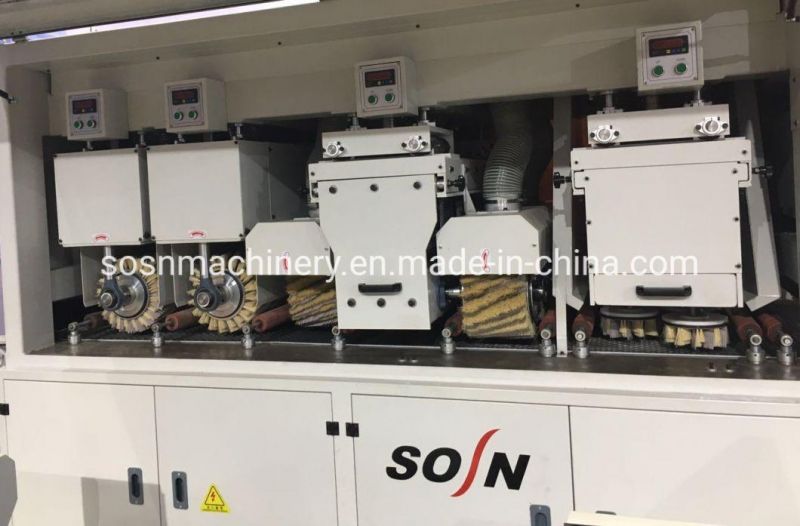

The two horizontal brush sanding unit is mainly for brushing the bevel edge of the panel edges.
 Brush Sanding Machine with 1300mm Working Width

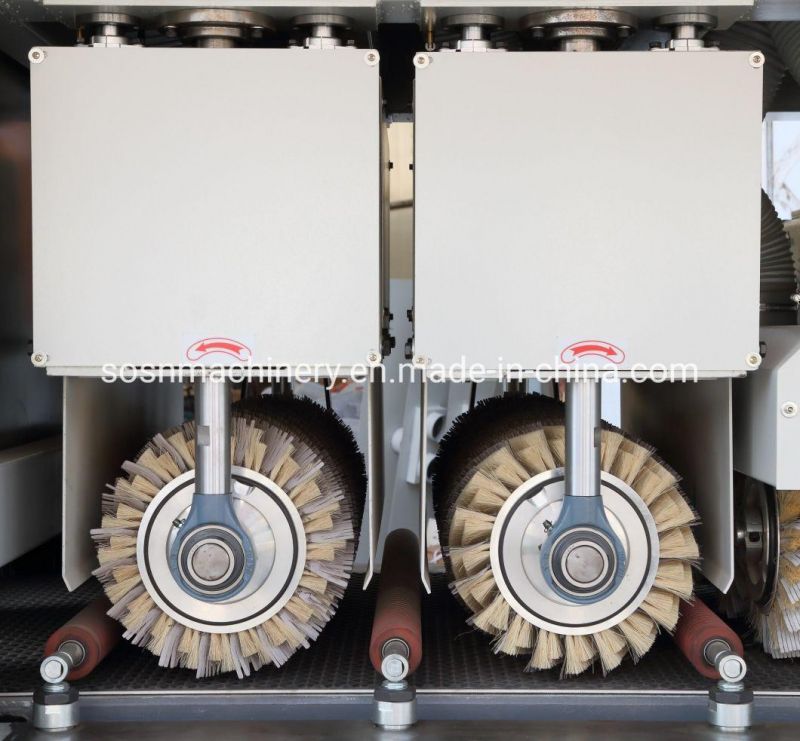

The two vertical  brush sanding unit is mainly for brushing the bevel edge of the panel front sand back edges and the other side

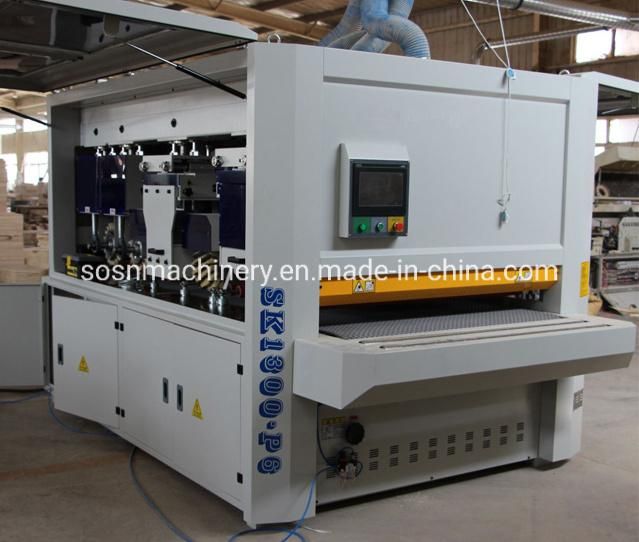

Brush Sanding Machine with 1300mm Working Width

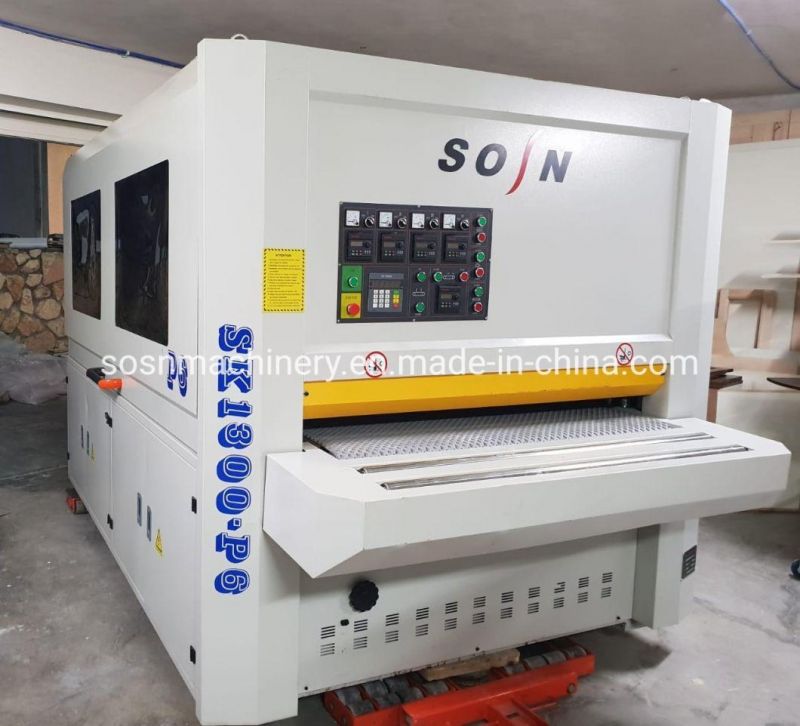

Brush Sanding Machine with 1300mm Working Width

5).Packing picture:
Brush Sanding Machine with 1300mm Working Width

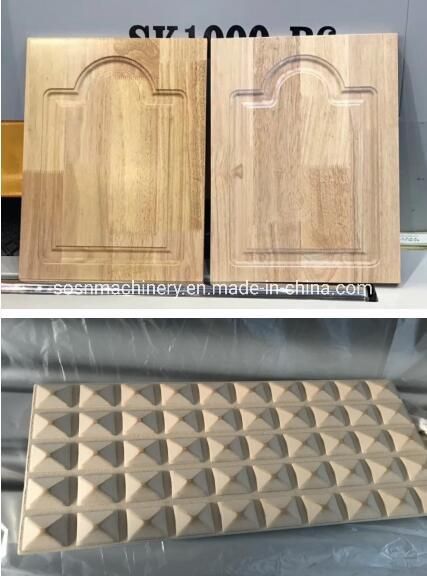

6).Sample:
Brush Sanding Machine with 1300mm Working WidthBrush Sanding Machine with 1300mm Working Width
7).SOSN factory:
Brush Sanding Machine with 1300mm Working Width
:-) Should you have any need of this machine, please contact me anytime~
