• Model NO.：SK1000-P6
• Color：Customized

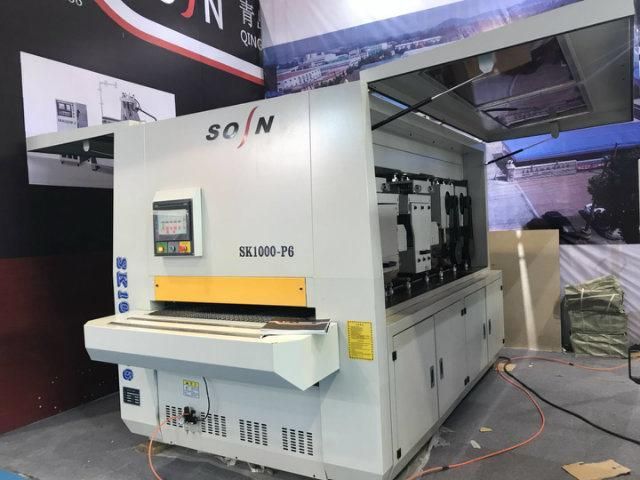

• Name：Heavy Duty Brush Sanding Machine
• Max. Working Width：1000 mm
• Min. Working Length：500 mm
• Working Thickness：2-150 mm
• Belt Size：1330*2200 mm
• Total Power：13.87kw
• Products：Door, Carbinet, Photo Frame .Drawer Frame
• Transport Package：Stretch Film
• Specification：3650*1850*2100mm
• Trademark：SOSN
• Origin：China
• Production Capacity：200 Sets,Month

Basic Info.

Model NO. SK1000-P6 Color Customized Name Heavy Duty Brush Sanding Machine Max. Working Width 1000 mm Min. Working Length 500 mm Working Thickness 2-150 mm Belt Size 1330*2200 mm Total Power 13.87kw Products Door, Carbinet, Photo Frame .Drawer Frame Transport Package Stretch Film Specification 3650*1850*2100mm Trademark SOSN Origin China Production Capacity 200 Sets/Month

Product Description

Wood Sander Plywood Sanding Wood Polishing Machine

feature :

1 . Vertical and horizontal combination of special-shaped sander can effectively solve the carved furniture parts, and the cabinet door vertical sand marks problem.

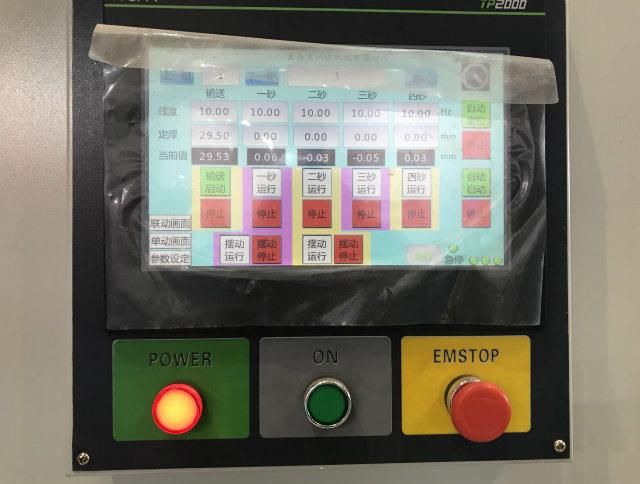

 2 This model uses foreign modular design concept, touch screen + PLC control, each group of sanding units are used frequency control to meet the requirements of different parts processing technology, so that sanding effect is more perfect.
3. Each group of sanding unit is designed to be out of the sand frame, you can more easy to  change the  sandpaper or sanding parts, easy maintenance operations.
4. . There are two sets of lifting devices in this model. The first set of devices can make the overall table up and down to achieve the overall adjustment of the height of the sand frame, the second set of devices can make each group of sanding unit alone lift, in order to meet the requirements of different workpiece sanding process, sanding effect more perfect.

Main parameters :

Working  width	1000mm
Min.Working  length	500mm
Working  thickness	2-150mm
Polishing roller speed	Frequency
Feeding  speed	3-12.5m/min
Total  motor  power	13.87kw
Overall dimensions	3650*1850*2100mm
Net weight	4200kg
Disc motor	1.5KW*1
Cross motor	1.5KW*2
Screw roller motor	2.2KW *2
Up and down motor	0.37KW*4
Table up and down motor	0.55KW
Feeding motor	2.2KW
Swing motor	0.37KW *2

machine details:







package :



Have any need, pls feel free to tell me
We will try our best to supply you the considerate service
