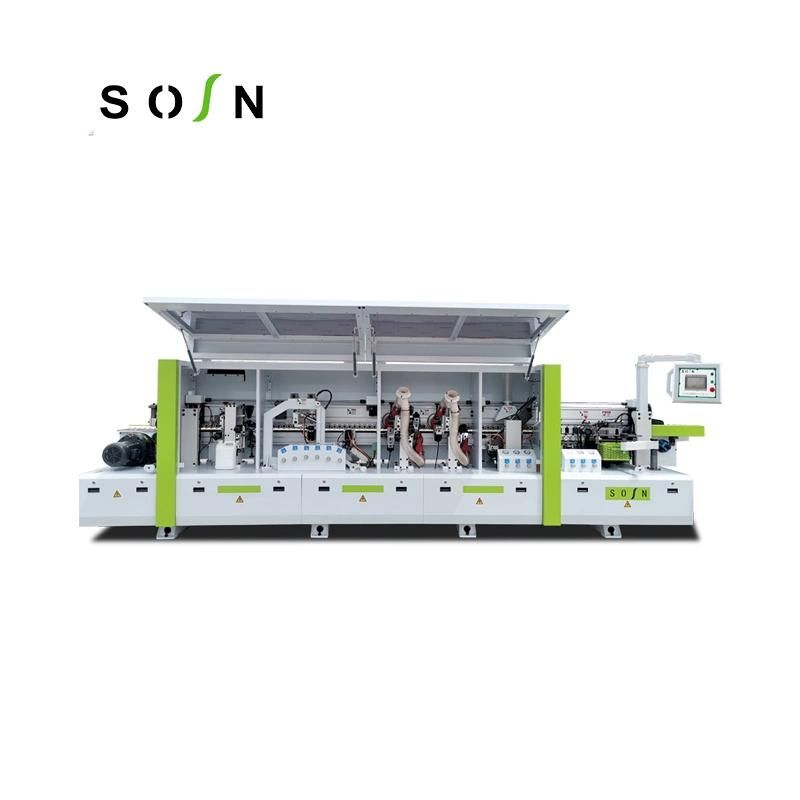

Woodworking Machinery PVC Edge Banding Machine with Corner Rounding

QINGDAO SOSN MACHINERY CO., LTD.
  • Warranty：2 Year Warranty
  • Function：Gluing, Edge Banding, End Trimming, Rough Trimming, Fine Trimming, Contour Tracking, Scraping, Buffing
  • Type：Linear Edge Banding Machine
  • Edging thickness：0.4-3mm
  • Automatic Grade：Automatic
  • Panel Feeding Speed：20m,min

Base Info

  • Model NO.：FZ-450D
  • Certification：CE, ISO
  • Panel Thinkness：10-60mm
  • Min.length panel：120mm
  • Min.width panel：80mm
  • Manufacturing Principles：Glue Tank Underneath
  • Customized：Customized
  • After-sales Service：2 Year Warranty
  • Name：Edge Banding Machine
  • Total Power：11.13 Kw
  • Air Pressure：0.8 MPa
  • Feeding Speed：12-20 M,Min
  • Transport Package：Plywood Package
  • Specification：6100*1000*1600 mm
  • Trademark：SOSN
  • Origin：China
  • Production Capacity：200 Sets ,Month

Description

Basic Info.

Model NO. FZ-450D Certification CE, ISO Panel Thinkness 10-60mm Min.length panel 120mm Min.width panel 80mm Manufacturing Principles Glue Tank Underneath Customized Customized After-sales Service 2 Year Warranty Name Edge Banding Machine Total Power 11.13 Kw Air Pressure 0.8 MPa Feeding Speed 12-20 M/Min Transport Package Plywood Package Specification 6100*1000*1600 mm Trademark SOSN Origin China Production Capacity 200 Sets /Month

Product Description

woodworking machinery pvc edge banding machine with corner rounding  FZ-450D
Woodworking Machinery PVC Edge Banding Machine with Corner Rounding

Main function:Gluing, end trimming, rough trimming, fine trimming, corner trimming, scraping, buffing

Adopt to the linear sealing of PVC, wood plank and veneer etc.
using imported quality engines and electric components
Serialized products, a wide range of selection by customers
High precision and efficiency

Features of edge banding machine
a,Edge Banding Material:PVC, Melamine,ABS,Veneer,Solid Wood Strip,etc
b,Workpiece:Plywood, Fire board, MDF board,Solid Wood,Particle board,etc.
c,imported quanlity engines and electric components.
d.serialized products,a wide range of selection for customers.
e.high precision&efficiency.
Main technical parameter:
Motor power 11.13 kw
Overall size 6100x1100x1600mm
Feed speed12-20m/min
Panel thickness10-60mm
Edge banding tape thickness0.4-3mm
Panel width ≥ 80mm
Working air pressure 0.8Mpa
Weight 2500kg

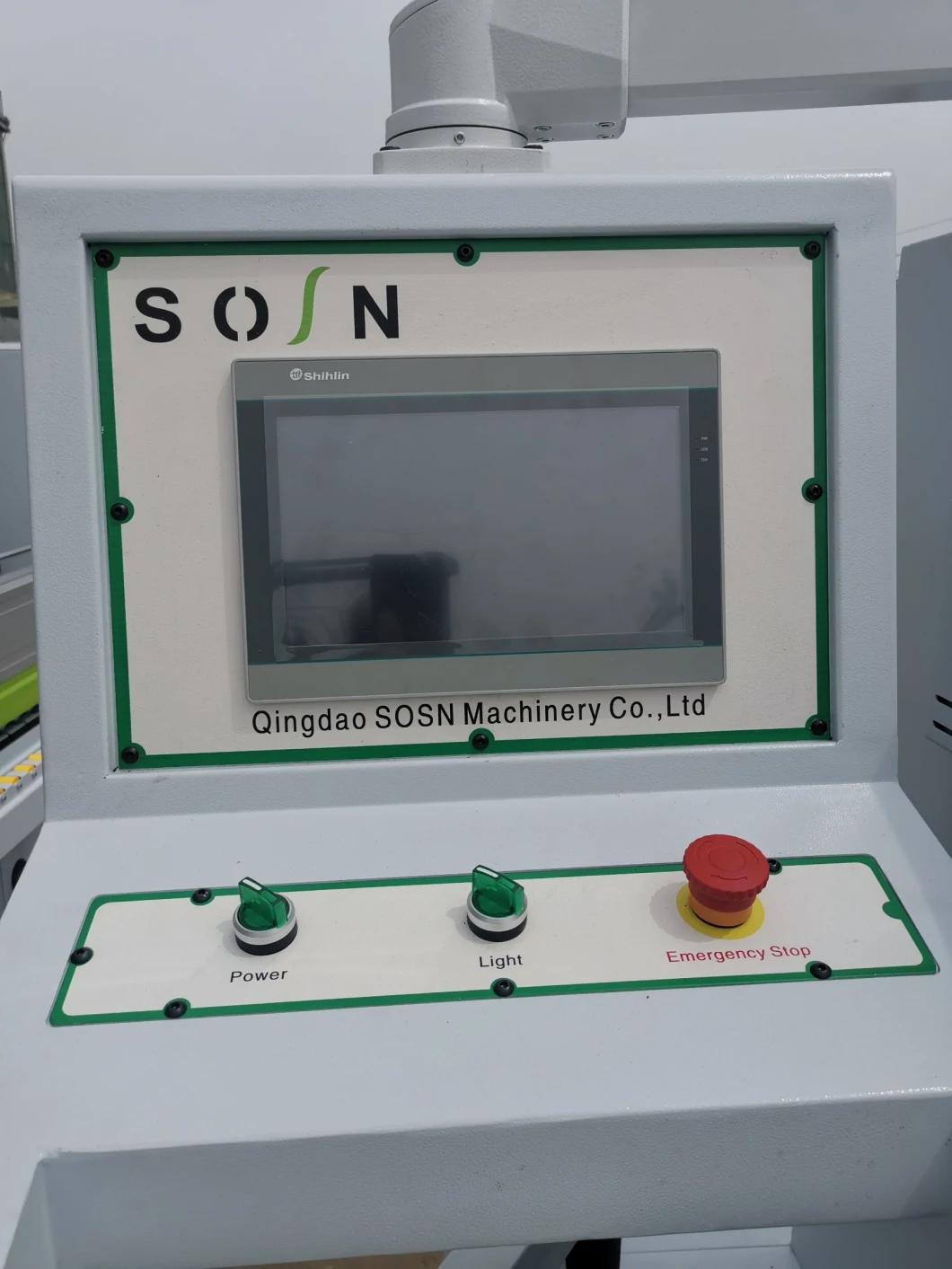

Shihlin Touch screen:
Woodworking Machinery PVC Edge Banding Machine with Corner RoundingPre heating function:
Woodworking Machinery PVC Edge Banding Machine with Corner Rounding

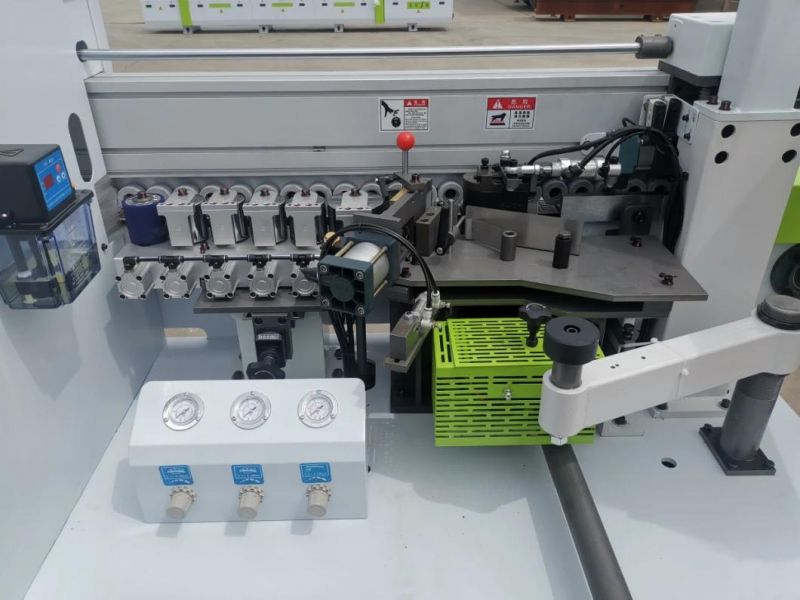

Gluing function:
Woodworking Machinery PVC Edge Banding Machine with Corner Rounding

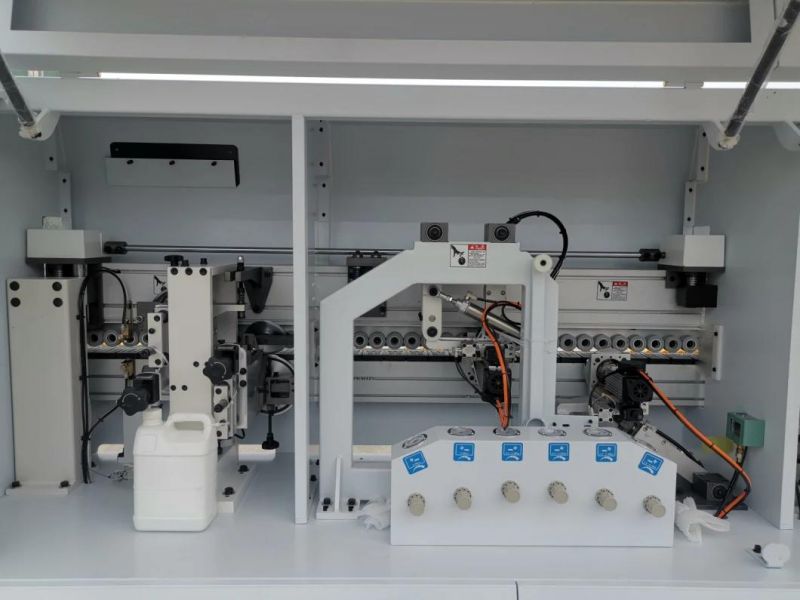

end cutting trimming+ rough trimming+fine trimming
Woodworking Machinery PVC Edge Banding Machine with Corner Rounding

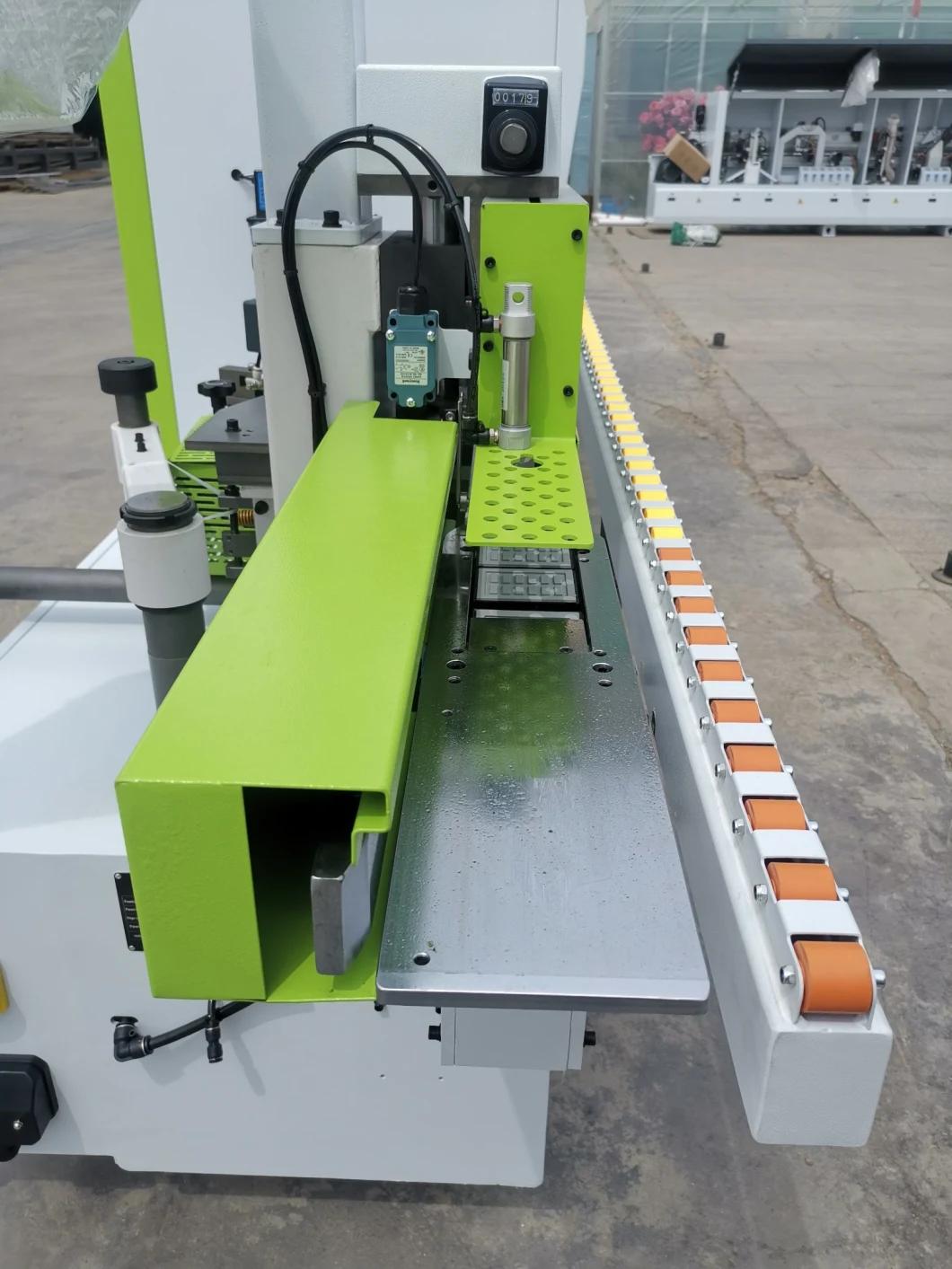

Corner rounding trimming
Woodworking Machinery PVC Edge Banding Machine with Corner Rounding

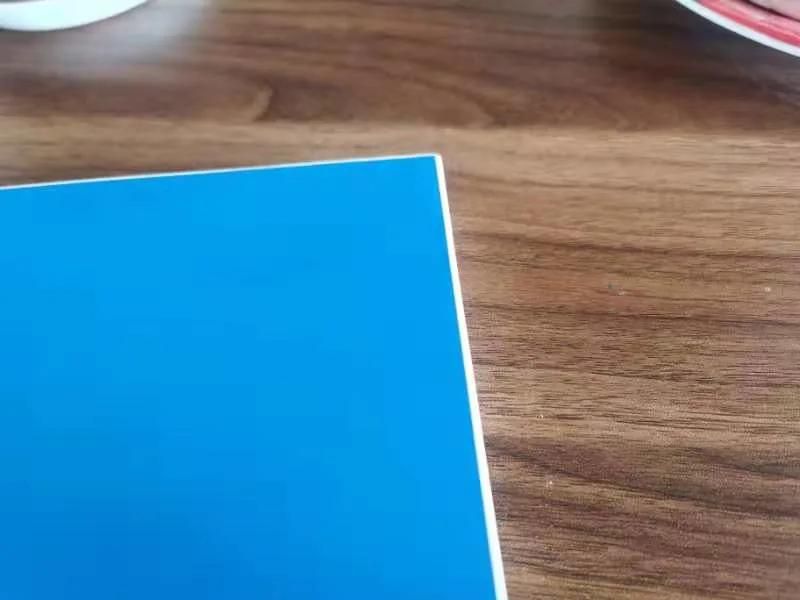

Working sample:
Woodworking Machinery PVC Edge Banding Machine with Corner Rounding
