• Model NO.：A3-1325
• Inverter：3.7kw Fuling Inverter
• Worktable：Vacuum Worktable
• Motor：Stepper Motor
• Driver：Leadshine Drivers
• Square Rail：Hiwin 25
• Spindle：Pneumatic

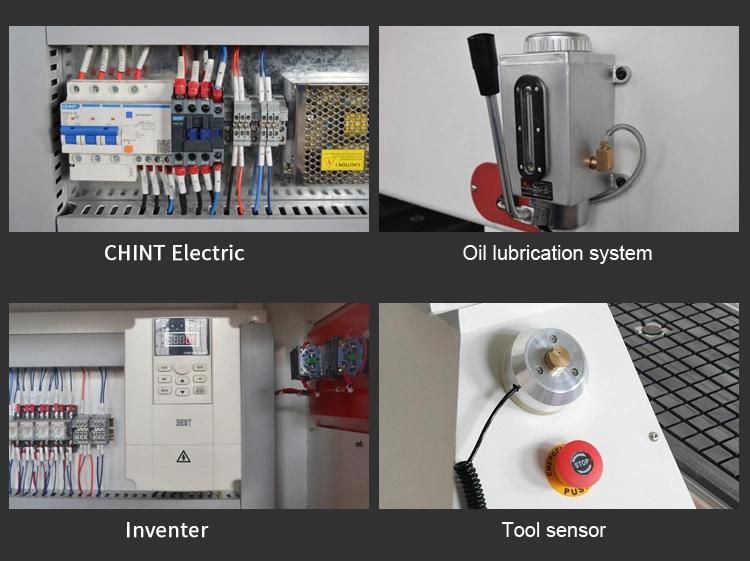

• Lubrication System：Yes
• Work Table：Heavy-Duty
• Transport Package：Wooden Case
• Specification：1300*2500mm
• Trademark：SIGN
• Origin：Jinan City, Shandong Province, China
• HS Code：8465990000
• Production Capacity：100 Set,Month

Model

A3-1325

X,Y,Z Working Area

1300x2500x200mm

Table Size

1300*2500mm

Z feed Height

200mm (300mm heighten Gantry optional)

Working delicasy

0.01-0.025mm

X,Y,Z repositioning Positioning Accuracy

±0.05mm

Frame

steel tube structure

X, Z Structure

Round orbit and ball screw

Y Structure

Hiwin Rail Linear Bearings and Ball Screw

Power (not include the spindle)

2.0KW

Table surface

 vacuum table

Max. power Consumption

 3.5KW

Max.Rapid Travel   Rate

33000mm/min

Max.Working   Speed

25000mm/min

Spindle Speed

6000-24000RPM

Drive Motors

Stepper system

Working   Voltage

AC220V/50/60Hz

Command Language

G code

Control System:

 DSP control system

X,Y Resolution

 <0.01mm

Surrounding for software

Windows98/2000/xp

Running   Environment

Temperature:   0-45°C Relative humidity: 30%-75%

Application:

Wood furniture Industry, Furniture decoration, music instrument, wooden arts and crafts, large scale board engraving, solid wood furniture, solid wooden mural, composite door, free-paint door, cabinet doors, advertising industry, Die industry, Relief sculpture, toy production, bedside cupboard, screen sculpture etc.

Materials:

Woods, acrylics, artificial stones, artificial marble, bamboos, organic boards, double-color board, PVC board, aluminum, brass and other materials.

Samples

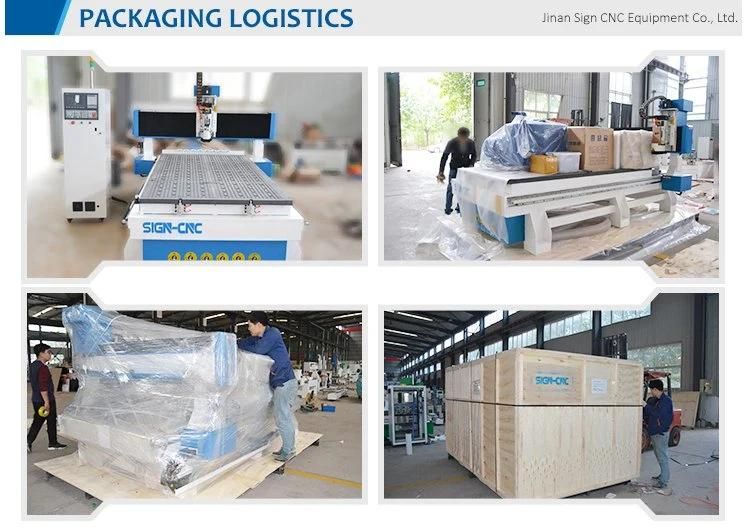

Packing and shipping




     Jinan Sign CNC Equipment Co., Ltd. locates in beautiful city of Jinan. It's a high-tech enterprise, engaged in research and development, production, sales in the integration of motion control system integration, mechanical and electrical integration products.

     Our products lnclude: advertising CNC router, woodworking CNC router, stone CNC router, embossment CNC router, CNC Laser engraving machine, CNC Laser cutting bed, CNC Laser marking machine, CNC Plasma cutting machine, cutting plotter and mould machine.

     Our productions are widely used in advertising, gifts, electronic appliances, furniture manufacturing, organic glass, packaging and printing, all kinds of non-metal processing and cutting etc industry.

     We have a strong professional technical team to provide the best products and have experienced managers with the most perfect price system integration schemes for our customers. We have been established business partner with many customers from Russia, Ukraine, U.S., Japan, South Korea, Canada, Italy, Turkey, Iran, Iraq, Egypt, Brazil, Pakistan etc. more than 50 countries.

      We have been experienced in exporting the CNC machine for over 5 years, familiar with the different requirements from all kinds lines. Meanwhile, we insist the principle of "the best products, the most reasonable price, the maximum benefits for customers", there are prestigious fame in the industry business field.

     All response and suggestion from you, we promise to give you a satisfactory reply in 12 hours.
     Looking forward to cooperating with you as soon as possible!
