• Model NO.：MB2061
• Cutter Shaft：8
• Spindle Speed：7~30m,min
• Process Type：Heavy Processing
• Certification：CE, ISO
• Model：MB2061
• Maximum processing width：610mm
• Minimum processing width：20mm
• Maximum processing Thickness：200mm
• Minimum processing Thickness：10mm
• Minimum processing length：320mm
• Planer shall rotation：6500r,min
• Feeding speed (frequency control)：7-30M, min
• Upper planer shaft power：11kw
• Lower planer shaft power：7.5kw
• Feed motor power：2.2kw
• Upper base lift motor power：0.55kw
• Total power：21.25kw
• Dimensions：2942 X 1260 X 1780mm
• Machine weight：2700kg
• Transport Package：Film Package or Plywood Case
• Specification：2942*1260*1780mm
• Trademark：ZICAR
• Origin：China
• HS Code：8465100000
• Production Capacity：100pieces,Month

Basic Info.

Model NO. MB2061 Cutter Shaft 8 Spindle Speed 7~30m/min Process Type Heavy Processing Certification CE, ISO Model MB2061 Maximum processing width 610mm Minimum processing width 20mm Maximum processing Thickness 200mm Minimum processing Thickness 10mm Minimum processing length 320mm Planer shall rotation 6500r/min Feeding speed (frequency control) 7-30M/ min Upper planer shaft power 11kw Lower planer shaft power 7.5kw Feed motor power 2.2kw Upper base lift motor power 0.55kw Total power 21.25kw Dimensions 2942 X 1260 X 1780mm Machine weight 2700kg Transport Package Film Package or Plywood Case Specification 2942*1260*1780mm Trademark ZICAR Origin China HS Code 8465100000 Production Capacity 100pieces/Month

Product Description

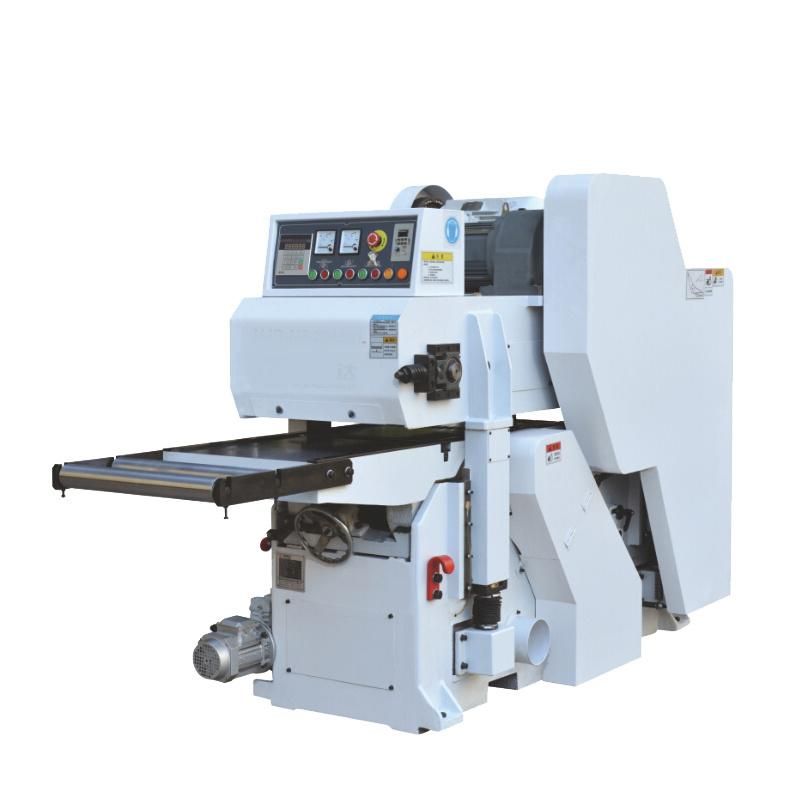

ZICAR Wood MB2061 Good Quality Plywood Double-side Moulder Planer
Product Description



Features

1. The machine bed is cast from high grade cast iron to ensure the stability of the machine.

2. This adopts step-less material feeding, material feeding speed ranges from 5 to 24 m/min.

3. Each main shaft is driven by independent electric motor, cutting fore is poweful.

4. Main shaft is adjusted to focus on the front, operation is convenient.

5. Hard chrome plating work table is durable.

6. Multi-group drive rollers improve feeding efficiency.

7.International brands electrical parts are applied for good stability.

8. Spare parts are thick and solid to maintain high precision, high stability and high reliability.

9. Pneumatic compressed feeding roller is applied, the pressing force can be adjusted by stages.

10. Which is favorable for smooth feeding of timbers with different thickness.

11. Completely sealed safety shield can avoid flying of saw dust and isolate noise efficiently and protect operators.
 Product Parameters


Model	MB2061
Maximum processing width	610mm
Minimum processing width	20mm
Maximum processing thickness	200mm
Minimum processing thickness	10mm
Minimum processing length	320mm
Planer shaft rotation	6500r/min
Feeding speed(frequency control)	7-30m/min
Upper planer shaft power	11kw
Lower planer shaft power	7.5kw
Feed motor power	2.2kw
Upper base lift motor power	0.55kw
Total power	21.25kw
Dimensions	2942*1260*1780mm
Machine weight	2700kg

 Detail Images

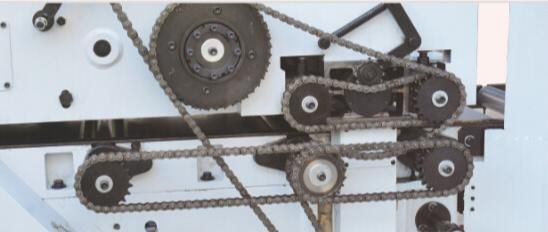

3 sets of active feeding wheels and 1 set of passive feeding system for the lower workbench,
The upper 2 sets of active feed wheels make the feeding smoother.

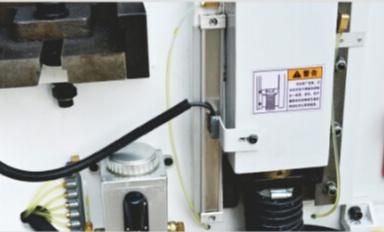

Magnetic grid sensor for thickness display, the accuracy is much higher than Proximity sensor. instructor.

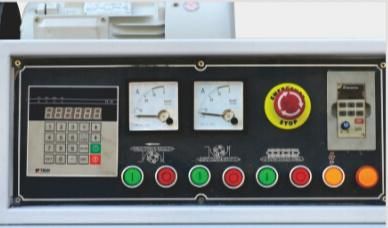

The new panel design is more intuit-ive and more beautiful, with variable frequency feeding. Speed adjustment is convenient.



Screw arbor (Heay Dty)optional
Arbor screw precision machining
Provide fine planing surfacing,and no noise

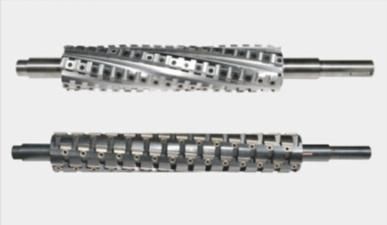

Spiral cutter shaft with detachable Luxembourg blade.

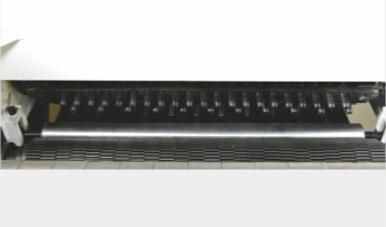

The feeding system is pinned and encrypted, and the narrow material can be used in a wider range.Our Company

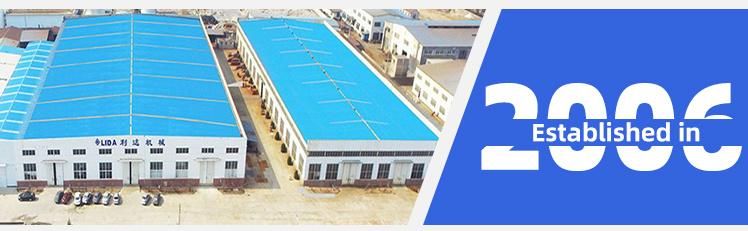

JAYA INTERNATIONAL, has been dealing in woodworking machinery for more than 27 years,started from Jaya Trading at the beginning of 1992. In 2008, we made great investment andbecame the holding company of YanTai Lida woodworking machinery Co.,ltd, which has over59 years' history of manufacturing all kinds of China- ·made woodworking machinery since1960, especially for the MQ & ML series combined woodworking machine, it has the extremelyimportant guiding function in the circle. During the past few years, with the development of thecompany and the staff, we also expanded our production line to related fields like general machinery, panel furniture making machinery ,CNC router, Laser machinery, Plywood makingmachine and related hardware, ect.

Thanks for our top quality, excellent service and competitive price, thanks for all the supportfrom our customers, now our machine has got great reputation as the brand ZICAR forwoodworking machinery, MATIC for general machinery , HARRIER for CNC/ laser Machinery,PLYTEC for plywood making machine all over the world with the following advantages:

* More than 300 employees, 56 technicians, covering an area of 35000 square meters.
* ISO9001:2000, CE certified, 15 national patents
* One-stop service, meet needs of the customers from individuals to international companies.
* OEM service accepted.
* Separate trading office: Jaya Trading with 35 experienced sales offering full scale service.
* lnquiries are typically answered within 8 hours.
* After sale Service: experienced and knowledgeable team of technical support
* Annual turnover: USD 20 million

We trust that our experience and intimate knowledge of this line will entitle us to yourconfidence.
The more you know us, the more you trust us!


FAQ

1.Our Payment Way?

L/C and T/T or other ways.

2.Delivery Time?

30 days after downpayment.We have our own forwarder and we havelong term cooperation with each other and have closely relationshipwith each other,so there is no problem in shipment.

3.Our Warranty?

(1)One year guarantee from the delivery date of this machine under the normal operation of oneshift per day.

(2)We will be responsible for the maintenance of damaged part which is under normal situationduring warranty period, and all the round-trip courier transportation cost of damaged/repairedreplacement parts in warranty period should be borne by the buyer. Wearing parts are notincluded.

(3)24 hour technical support by email or calling.

(4)User-friendly English manual for machine using and maintaining.

4.Our srvices?

(1)One-stop service, meet needs of the customers from individuals to international companies.

(2)OEM service accepted.

(3)Separate trading office: Jaya Trading with 30 experienced sales offering full scale service.

(4)After sale Service: experienced and knowledgeable team of technical support , provideengineer oversea service.
