• Model NO.：R-R-R1300
• Color：Customized
• Max.working width：1300mm
• The shortest processing length：500mm
• Maximum processing thickness：160mm
• Converyor speed：6-30,min
• Total power：63.55kw
• The first motor power sander：18.5kw
• Second sand shelf motor power：22kw
• Third sand shelf motor power：18.5kw
• Conveyor motor wattage：4kw
• Lifting motor：0.55kw
• The first sand shelf planing roller diam：180mm
• The second sand frame rubber covered rol：240mm
• Third sander roller diameter：240mm
• Working pressure：0.6MPa
• Dust collection：12500m3,h
• Transport Package：Rubber Sheet,Stretch Film Packaging
• Specification：2800x2700x2200mm
• Trademark：ZICAR
• Origin：China
• HS Code：846593
• Production Capacity：100sets,Month

Basic Info.

Model NO. R-R-R1300 Color Customized Max.working width 1300mm The shortest processing length 500mm Maximum processing thickness 160mm Converyor speed 6-30/min Total power 63.55kw The first motor power sander 18.5kw Second sand shelf motor power 22kw Third sand shelf motor power 18.5kw Conveyor motor wattage 4kw Lifting motor 0.55kw The first sand shelf planing roller diam 180mm The second sand frame rubber covered rol 240mm Third sander roller diameter 240mm Working pressure 0.6MPa Dust collection 12500m3/h Transport Package Rubber Sheet/Stretch Film Packaging Specification 2800x2700x2200mm Trademark ZICAR Origin China HS Code 846593 Production Capacity 100sets/Month

Product Description

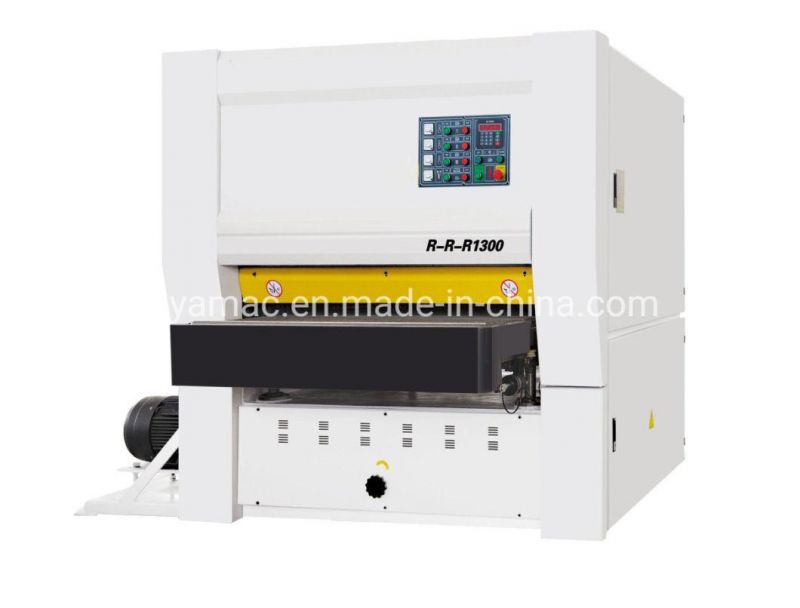

ZICAR Wood Sanding Machine Sander Machinery R-R-R1300

Product Description




 Features
 1.Imported cutter roller, roller and the thickness of soft rubber (or a combination of sand,sand polishing process frame) of the first plane, high eficiency and energy saving;

2.The back plate to avoid casting device, in the process of rebound.
Product Parameters


Model	R-R-R1300
Max working width	1300mm
The shortest processing length	500mm
Maximum processing thickness	160mm
Conveyor speed	6-30m/min
Total power	63.55kw
First sand frame motor power	18.5kw
Second sand frame motor power	22kw
Third sand frame motor power	18.5kw
Conveyor motor wattage	4kw
Lifting motor power	0.55kw
First sand frame steel roller diameter	180mm
Second sander roller diameter	240mm
Third sander roller diameter	240mm
Abrasive belt size	1330x2200mm
Working pressure	0.6Mpa
Dust collection	12500m³/h
Outline dimension	2800x2700x2200mm
Weight	4700kg

Detail Images

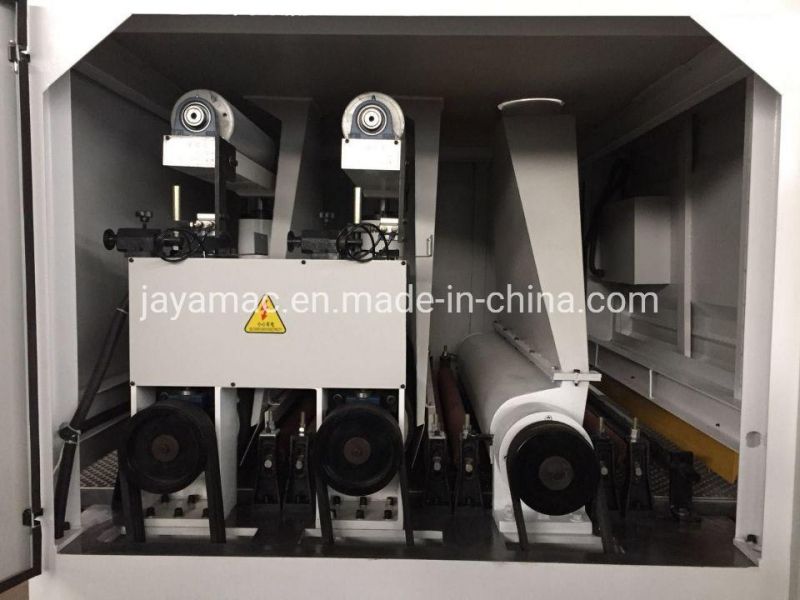

Three sand rack


Thickening hanging board



Built-in cylinder



Double sand rack
