• Model NO.：CR4
• Y Working Area：2500mm
• Z Working Area：280mm
• Table size：1380X2750mm
• Traveling Positioning Accuracy：0.05mm
• Repositioning Positioning Accuracy：0.05mm
• Table Type：Vacuum table
• Vacuum pump：5.5KW water vacuum pump
• Max. Power Consumption：20KW
• Max. Rapid Travel Rate：45000mm,min
• Max. Working Speed：25000mm,min
• Inverter：7.5kw INVERTER
• Spindle Speed：0-18000rpm,min
• Working voltage：AC220V,380V 50Hz,60Hz
• Transport Package：Stretch Film or Plywood Case
• Specification：3300*2150*1850mm
• Trademark：ZICAR
• Origin：China
• HS Code：846599
• Production Capacity：500 Sets,Per Year

Basic Info.

Model NO. CR4 Y Working Area 2500mm Z Working Area 280mm Table size 1380X2750mm Traveling Positioning Accuracy 0.05mm Repositioning Positioning Accuracy 0.05mm Table Type Vacuum table Vacuum pump 5.5KW water vacuum pump Max. Power Consumption 20KW Max. Rapid Travel Rate 45000mm/min Max. Working Speed 25000mm/min Inverter 7.5kw INVERTER Spindle Speed 0-18000rpm/min Working voltage AC220V/380V 50Hz/60Hz Transport Package Stretch Film or Plywood Case Specification 3300*2150*1850mm Trademark ZICAR Origin China HS Code 846599 Production Capacity 500 Sets/Per Year

Product Description

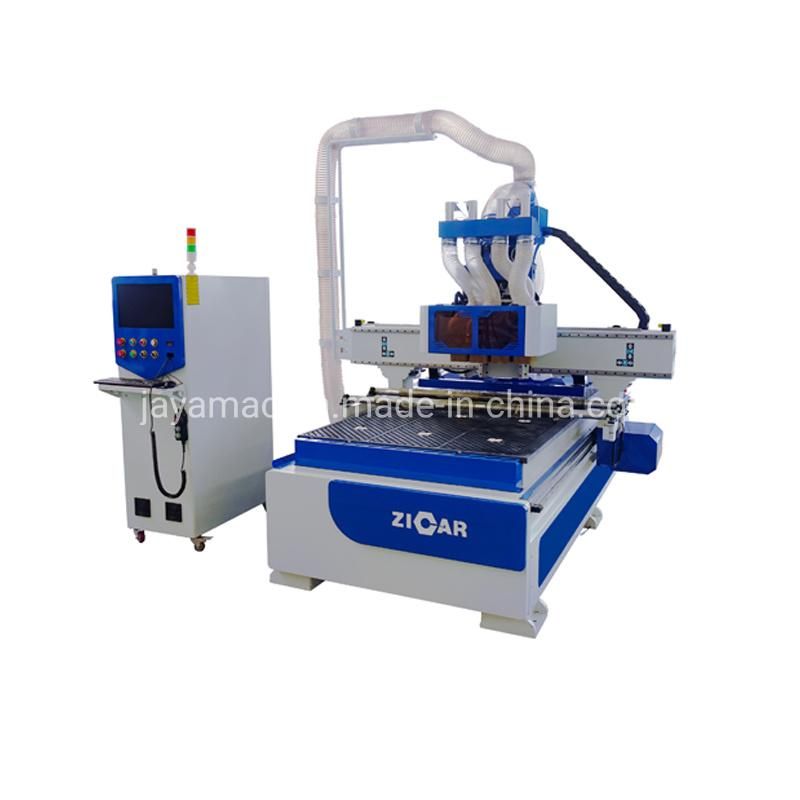

ZICAR CNC ROUTER CR4



Features:

1.CR4 is universal type with extrodinary value, but at a very economical price.

2.The worktable is vacuum working table, with very powerful absorbing power, can absorb materials of different size.

3.The spindle is with fast working speed, high working efficiency. The engraving is precise enough, without any sawtooth ripple.

4.Adopt high speed stepper motor and drivers.

Product parameters:


Model	CR4
X Working Area	1300mm
Y Working Area	2500mm
Z Working Area	280mm
Table size	1380x2750mm
Traveling Positioning Accuracy	±0.05mm
Repositioning Positioning Accuracy	±0.05mm
Table Type	Vacuum table
Vacuum pump	5.5KW water vacuum pump
X,Y ,Z Structure	XY gear wheel, Z ball screw
Max. Power Consumption	≤20KW
Max. Rapid Travel Rate	45000mm/min
Max. Working Speed	25000mm/min
Spindle	2*4.5kw and 2*6.0kw air cooled spindle
Inverter	7.5kw INVERTER
Spindle Speed	0-18000rpm/min

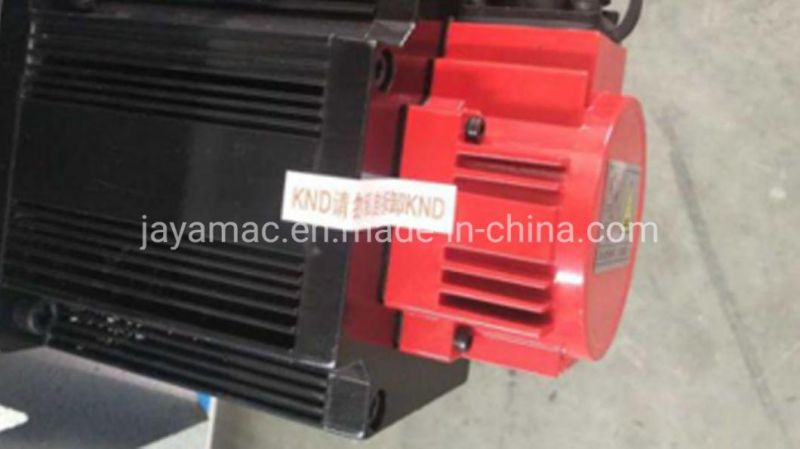

Driver& Motor	XY axis with 750w and Z aixis with 1.8kw FEILIMEI servo motor,Z axis with Japan shimpo reducer
Command	G-code*.u00*.mmg*.plt
Working voltage	AC220V/380V 50Hz/60Hz
Control System	Taiwan LNC2200 controller system
Guide rail	Longma 25mm  Square rail (TAIWAN BRAND)
Control cabinet	Independent cabinet
N.W./G.W.	2300KGS /2900KGS
Packing Size	3300*2150*1850mm

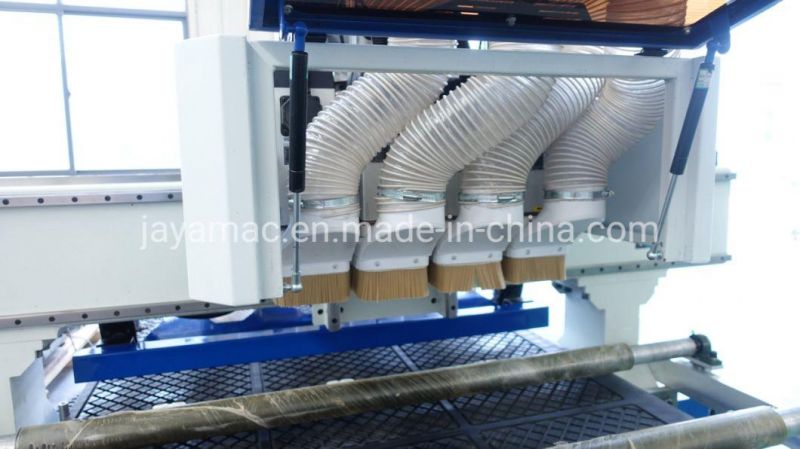

Dust Collector with 2 bages	3.0kw dust collector with diamater 150mm
Auto Pressing wheel	Yes
Automatic feeding device	Yes

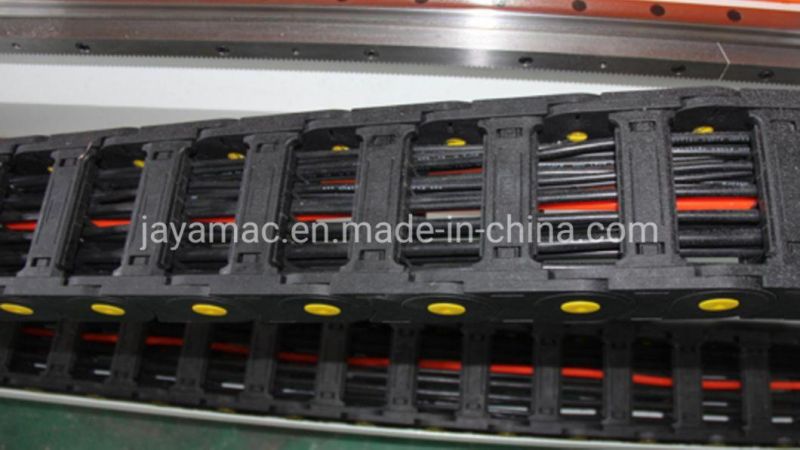

Details:

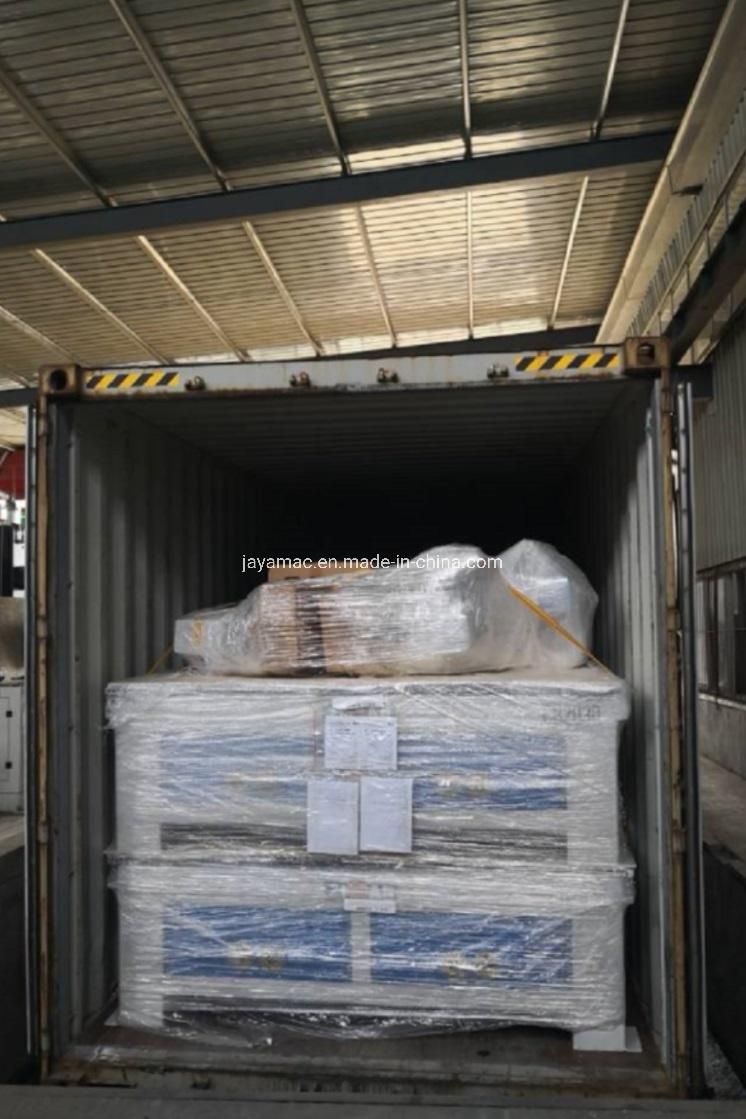

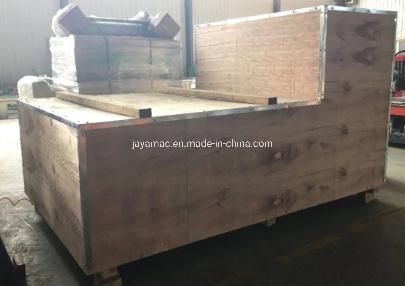

Package:



Company Profile:

JAYA INTERNATIONAL, has been dealing in woodworking machinery for about 30 years, started from Jaya Trading at the beginning of 1992. In 2008, we made great investment and became the holding company of YanTai Lida woodworking machinery Co.,ltd, which has over 60 years' history of manufacturing all kinds of China-made woodworking machinery since 1960, especially for the MQ & ML series combined woodworking machine, it has the extremely important guiding function in the circle.  During the past few years, with the development of the company and the staff, we also expanded our production line to related fields like general machinery, panel furniture making machinery ,CNC router, Laser machinery, Plywood making machine and related hardware, ect.

Thanks for our top quality, excellent service and competitive price, thanks for all the support from our customers, now our machine has got great reputation as the brand ZICAR for woodworking machinery, MATIC for general machinery , HARRIER for CNC/ laser Machinery, PLYTEC for plywood making machine all over the world with the following advantages:

* More than 300 employees, 56 technicians, covering an area of 35000 square meters.

*ISO9001:2000, CE certified, 15 national patents

* One-stop service, meet needs of the customers from individuals to international companies.

*OEM service accepted.

* Separate trading office: Jaya Trading with 35 experienced sales offering full scale service.

*Inquiries are typically answered within 8 hours.

* After sale Service: experienced and knowledgeable team of technical support

*annual turnover:USD 20 million

We trust that our experience and intimate knowledge of this line will entitle us to your confidence.

FAQ:

1.Our Payment Way?

L/C and T/T or other ways.

2.Delivery Time?

30 days after downpayment.We have our own forwarder and we havelong term cooperation with each other and have closely relationshipwith each other,so there is no problem in shipment.

3.Our Warranty?

(1)One year guarantee from the delivery date of this machine under the normal operation of oneshift per day.

(2)We will be responsible for the maintenance of damaged part which is under normal situationduring warranty period, and all the roundtrip courier transportation cost of damaged/repairedreplacement parts in warranty period should be borne by the buyer. Wearing parts are notincluded.

(3)24 hour technical support by email or calling

(4)User-friendly English manual for machine using and maintaining

4.Our srvices?

(1)One-stop service, meet needs of the customers from individuals to international companies.
(2)OEM service accepted.
(3)Separate trading office: Jaya Trading with 30 experienced sales offering full scale service.(4)After sale Service: experienced and knowledgeable team of technical support , provideengineer oversea service.
