• Model NO.：S300
• Movement Method：Contour Control
• Control Method：Closed-Loop Control
• Numerical Control：CNC,Mnc
• Processing Precision：0.01~0.02(mm)
• Performance Classification：MID-Range CNC Machine Tools
• Configuration：9kw Air Cooling Spindle + Circular Tool Change
• Other：Also Include Drilling Bank (5+4)
• Transport Package：Wrapped in Layers of Wrapping Film and Ponchos
• Specification：1300*2500*300mm
• Trademark：Mars
• Origin：China
• HS Code：8465990000
• Production Capacity：3000 Sets,Year

BasicX/Y/Z Axis Working Area1230*2450*200mmMachine Size3700*3100*1900mmWorking TableWhole line frame structure, firm and not deformation, vacuum adsorption table plus automatic positioningBody StructureHeavy-duty thicken steel structure w/ temperingMainControl SystemTaiwan LNC/NK 260 control systemDrive SystemJapan Yaskawa servo motorSpindle Motor Power9KW air cooling spindle; 0 ~ 24000 rpm/min






OthersTool MagazineTracking mode Carousel, 16pcsDrilling HeadItaly HSD 5+4 gang drillTransmissionXY axis rack and pinion PMI, Z axis ball screw TBIGuide RailTaiwan PMI/Hiwin 25mm rectangular linear railInverterZoncn/Delta/Fuling brandVacuum Pump1*7.5KW water vacuum pumpCableMARS cable, anti-static, anti-interference, bending resistanceBeamReinforced steel beamMax Processing Speed30m/minWorking Accuracy±0.02mmDictate FormatG-Code / HPGLWorking VoltageAC380V/ 3PH/ 50HZNet Weight3000KG

Accessories:



Performance Features:

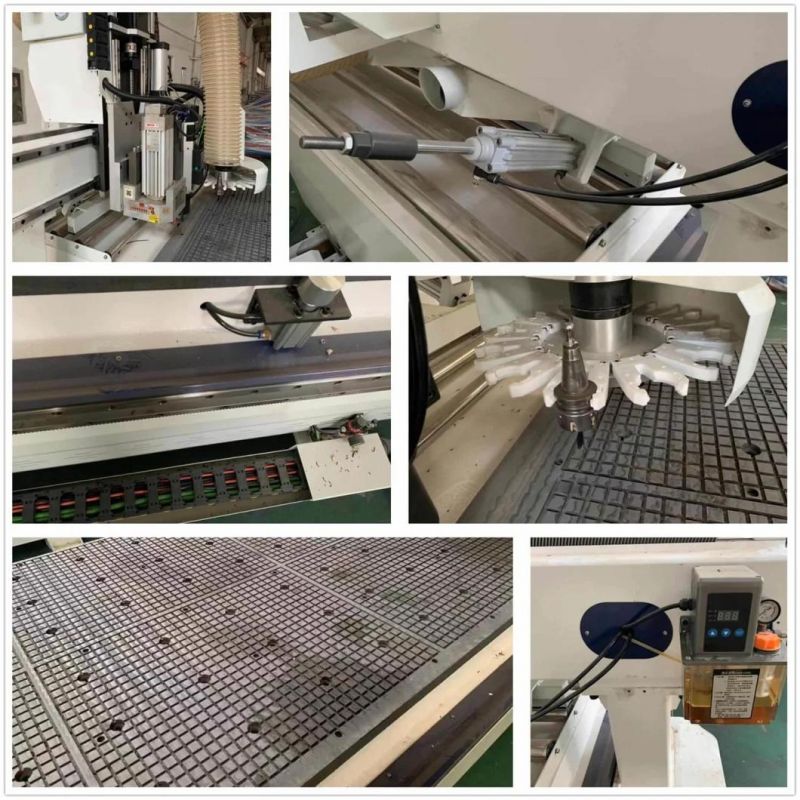

1	Equipped with all the leading international brand components, Taiwan LNC control system, Japan Yaskawa servo motor and driver
2	Carousel type tool magazines support automatic tool changer, improve processing efficiency
3	9KW high-power air-cooling spindle can withstand high-speed, heavy loading, low noise characteristics
4	Vacuum table, high adsorption capacity, able to adsorb materials of different sizes
5	Taiwan-made guide rail and ball screw, high precision, long service life, good stability
6	Intelligent protection work table can prevent table damages caused by misuse or software errors. Intelligent processing cross-border protection can prevent mechanical collisions while design layout exceeds processing area
