China Solid Wood Furniture Four Side Moulder Planer for Woodworking
Qingdao High-Class Service Import & Export Co., Ltd.- Type：Four-Side Planer
- Working Depth：8-125mm
- Working Width：20-200mm
- Drivetrain：Worktable Elevating Drivetrain
- Enter Method：Pushing
- Motor Power：38.85kw
Base Info
- Model NO.：HC520GH
- Cutter Shaft：5
- Spindle Speed：8000rpm
- Process Type：Heavy Processing
- Certification：CE, ISO
- Name：Four Side Planer
- Working Thickness：8-125mm
- Feeding Speed：10-60m,Min
- Spindle Diameter：40mm
- Total Power：38.85kw
- Weight：4300kg
- Machine Size：3630*1790*1750mm
- Transport Package：Standard Packing or Packing According to Customer
- Specification：3630*1790*1750mm
- Trademark：HICAS
- Origin：Qingdao
- HS Code：84659500
- Production Capacity：50
Description
Basic Info.
Model NO. HC520GH Cutter Shaft 5 Spindle Speed 8000rpm Process Type Heavy Processing Certification CE, ISO Name Four Side Planer Working Thickness 8-125mm Feeding Speed 10-60m/Min Spindle Diameter 40mm Total Power 38.85kw Weight 4300kg Machine Size 3630*1790*1750mm Transport Package Standard Packing or Packing According to Customer Specification 3630*1790*1750mm Trademark HICAS Origin Qingdao HS Code 84659500 Production Capacity 50Product Description
China Solid Wood Furniture Four Side Moulder Planer for Woodworking
Description
| Model | HC520GH |
| Working width | 20-200mm |
| Working thickness | 8-125mm |
| Min processing length(continuously / non-continuously) | 150/159mm |
| Active working table lifting stroke | 7mm |
| Active limit bar lifting stroke | 8mm |
| Spindle speed | 8000r/min |
| Feeding speed | 10-60m/min |
| spindle | 5 |
| Spindle diameter | 40mm |
| Cutter diameter | 125*40*18mm |
| Feeding wheel diameter | 140*35*50mm |
| Machine power | 38.85kw |
| 1st bottom spindle | 5.5kw |
| Right spindle | 5.5kw |
| Left spindle | 5.5kw |
| 1st upper spindle | 7.5kw |
| 2nd upper spindle | / |
| 2nd bottom spindle | 5.5kw |
| Feeding power | 7.5kw |
| Beam Lifting power | 0.75kw |
| belt conveyor power | 1.1kw |
| Left axle feeding motor | 0.75kw |
| Centrifugal disc conveyor power | 3kw |
| Dust collection port diameter | 120mm*5pc |
| Gas floating pressure | 0.3-0.6mpa |
| Machine size | 3630*1790*1750mm |
| Machine weight | 4300KG |
Product Usage:

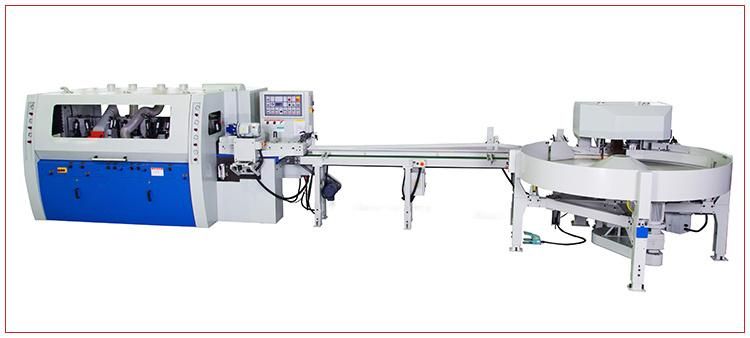

This product is mainly based on the requirement of efficient and automatic production in the large number of solid wood processing industry. The centrifugal disc conveyor is equipped for automatic feeding, which goes into the longitudinal conveyor and then into the high-speed four-sided plane. The automatic four-way reimbursement processing of feeding materials, especially the high-speed four-way planing with groove positioning structure, can overcome the phenomenon of running materials and sticking materials in the normal four side planer short materials processing. Its maximum processing width is 200mm, its maximum processing thickness is 125mm, its minimum processing length is 150mm (continuous), and its feeding speed is 10-60m/min. It is an ideal equipment to realize the upgrading and upgrading of solid wood processing industry.

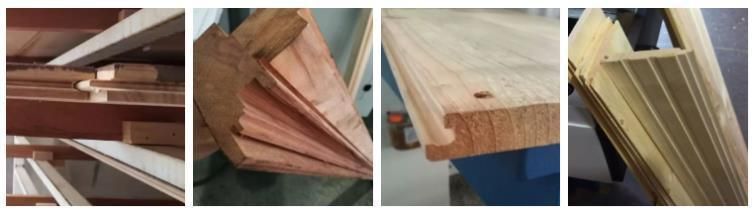

Sample
About Us
1.15 years experience in chinese woodworking machinery market.
2. 8 years exportation experience, have customers in more than 40 countries.
3.Engineer team with +20 years experience.
4.Diamond supplier in made-in-china.
5.Our products are widely sold in made-in-china.
6.Guarantee and After-sale service:
a. 12 months warranty for the whole machine
b. Technical support by phone, email or WhatsApp/Skype around the clock.
c. Friendly English version manual and operation video CD disk
d. Engineer available to service machinery overseas.

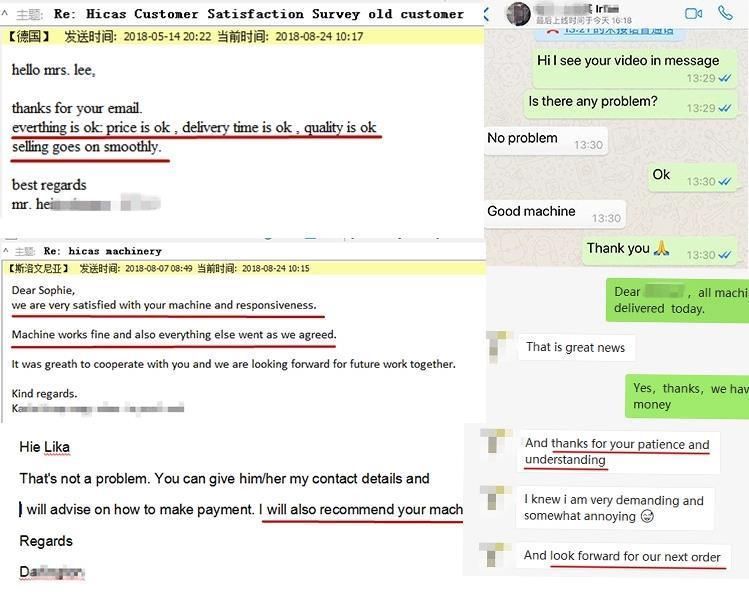

7. Customer feedbacks
