• Model NO.：FZ-450DJ
• Certification：CE, ISO
• Panel Thinkness：10-60mm
• Min.length panel：80mm
• Min.width panel：30mm
• Manufacturing Principles：Glue Tank Overhead
• Customized：Customized
• After-sales Service：Video, Email, Phone
• Name：Automatic Edge Banding Machine
• Min Panel Length：80mm
• Min Panel Width：30mm
• Control Type：Automatic
• Procedure：Gluing, End Cutting, Fine Trimming, Buffing
• Panel Thickness：12-60mm
• Edge Thickness：0.4-3mm
• Feeding Speed：12-20m,Min
• Weight：2800kg
• Motor Power：15.6kw
• Transport Package：Stretch Film
• Specification：7000*1000*1600mm
• Trademark：SOSN
• Origin：China
• HS Code：84659900
• Production Capacity：300set,Month

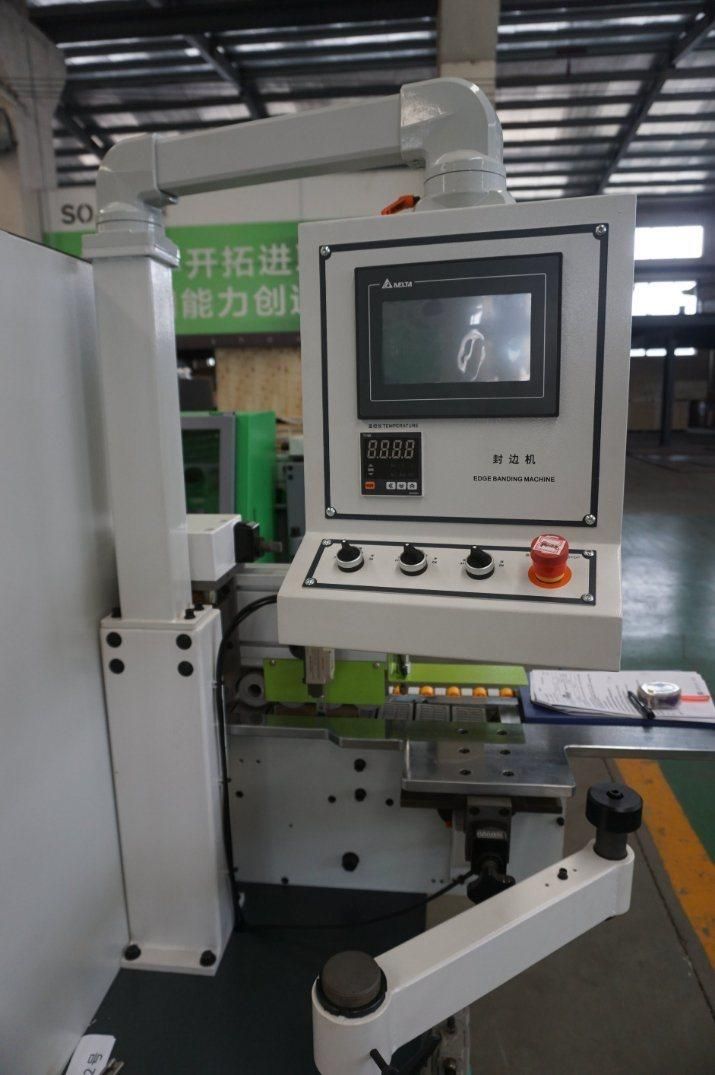

---Touch screen:Delta brand,
Woodworking industry's leading brand touch screen, Quick response, avoide accidental touch.---Premilling:
premilling of edge banding machine with diamond premilling tools( the toll height can be customerized), is to delete the waves ,burrs, or the out of vertical problems for the panel, which is mainly cut by the panel saw/ beam saw, then do the edging work, to make the edge banding tape can be perfectly fit with the panels .--Gluing

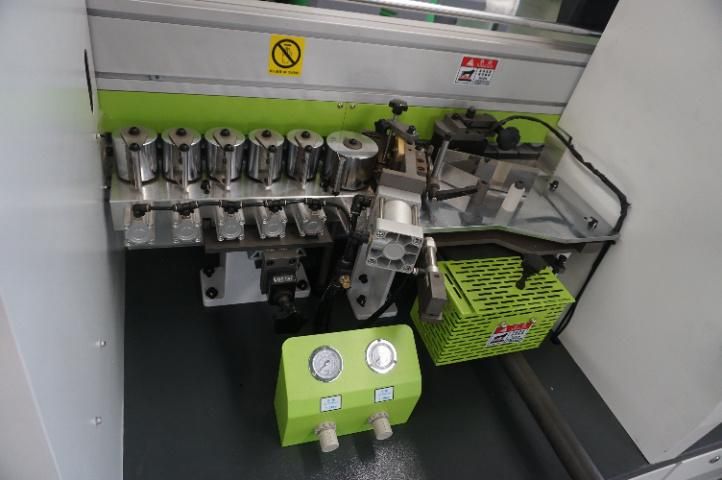

6-wheel pressing are more precise than 4 wheels, glue line Slightly non-running belt, firm fit, different tape can be easily transported, optional cylinder control the glue switch, make the edge banding with stable glue quantity, uniform thickness
--End cutting
end cutting of edge banding machine is to cut off the excess edge banding.
gas Cylinder with 2 pressure regulating valves and1 pressure relief valve) air pressure, More stable, more stable all together

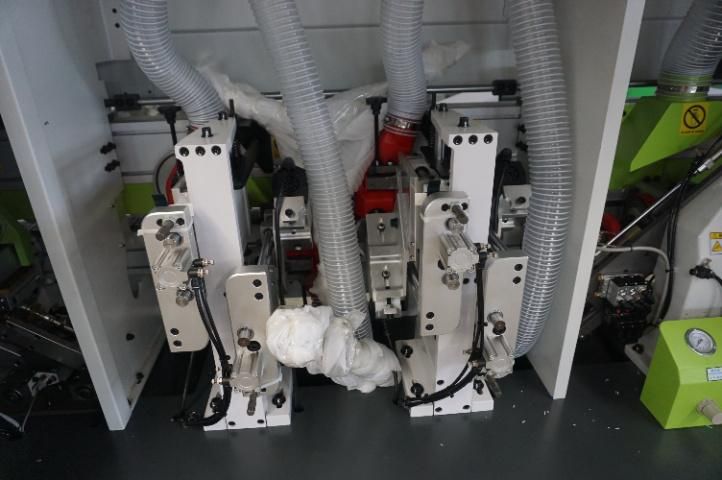

--Rough trimming and fine trimming
Adjust knife by the digital meter, easy to operate, six Edge alloy flat knife trims off the excess edges
---Corner rounding:
Trim the four corners after sealing into small arcs and rounder Slippery and not stingy.
Self-designed tracking movement and gas path design Make the contour chamfering action more stable.

--Scrapping
The super hard alloy R R knife scrapes the fine lines of the edge banding strip, Make it round.

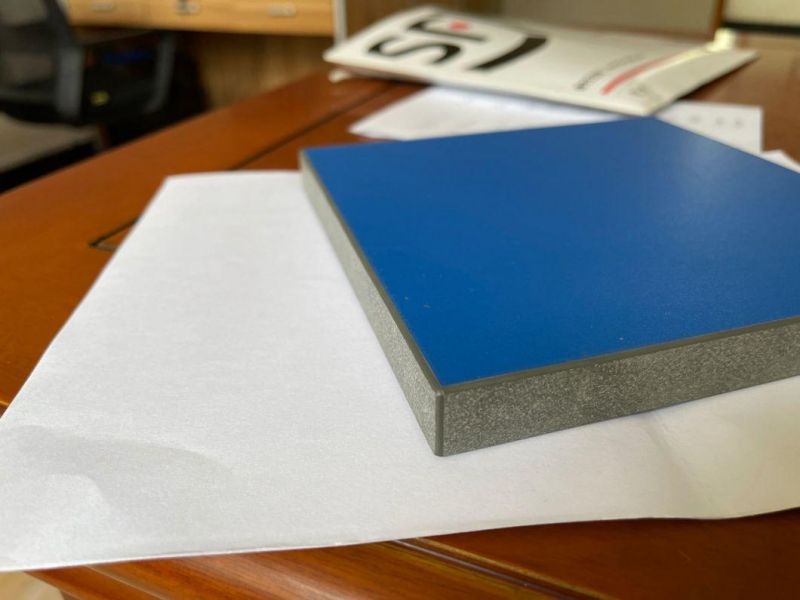

----working effect
with the premilling and corner rounding function ,make the edge effect more beautiful

Optional: double glue system, PUR gluing, hogging, automatic control of PVC thickness adjustment.
Contact us for each function details explanation.

5).Parameter of PVC edge banding machine.

Overall size	6750*1100*1800mm
Feed speed	15-23m/min
Panel thickness	10-60mm
Edge banding tape thickness	0.4-3mm
Panel width	>=80mm
Working air pressure	0.8mpa
Panel length	>=100mm
Voltage	380v/50hz or customerized

6).Features of the Edge banding machine

a,Edge Banding Material:PVC, Melamine,ABS,Veneer,Solid Wood Strip,etc

b,Workpiece:Plywood, Fire board, MDF board,Solid Wood,Particle board,etc.

c,imported quanlity engines and electric components.

d.serialized products,a wide range of selection for customers.

e.high precision&efficiency.

7) .Package for edge banding machine.
After test the PVC edge banding machine all well, firstly do the cleaning work before package.

Strong strech film will be used for the package of  the edge banding machine.

8).Our factory :
As leading manufacture of edge banding machine, woodworking machines in China, sincerely welcome your visiting to our factory.

NOTE:
1. We can arrange shipment for you if you need.
2. We guarantee the machine body for one year, three months for easy-broken parts.
3. Package: strong stretch film or standard export wooden case package.
4. Delivery time:20-25 days after getting the deposit.

Reasons to choose SOSN:
1: professional team--as much as possible to meet your needs.
2: quick delivery--timely and effective.
3: excellent after-sale services--no worries anymore.
4: friend partner relationship--a win-win cooperation.

 We have auto, semi-auto and manual Edge banding machines for your choice.

With professional experience for woodworking machines, we are your trusted supplier,  pls contact me to start our cooperation.
welcome your inquiry anytime !!
