Sawdust Straw Stalk Wood Briquette Machine/Press
Shandong Lintianzhiyuan CNC Equipment Co., Ltd.- Work Forms：Screw
- Processing Technics：Hot Press
- Structure：Box Type
- Pressing Shape：Flat Press
- Platen Surface Pressure：High Pressure
- Pressing Layer：Single Layer
Base Info
- Model NO.：ZBJ-80
- Work Mode：Continuous
- Controlling Mode：CNC
- Automatic Grade：Semiautomatic
- Certification：CE
- Diameter：40mm , 50mm , 60mm , 70mm , 80mm , 90mm
- Type：Wood Process and Matching Equipment
- Capacity：180 - 450kg,H
- Color：Green,Blue,etc
- Power：15-22kw
- Voltage If The Machine：380V,50Hz,3phase
- Export Package：International Standard Export Package of The Machi
- Payment Terms.：T,T, L,C
- Keywords：Wood Briquette Machine
- Certifications：CE
- Transport Package：HDF
- Specification：set
- Trademark：Leabon
- Origin：Zhengzhou, Henan
- HS Code：8474809090
- Production Capacity：200 Units Per Month
Description
Basic Info.
Model NO. ZBJ-80 Work Mode Continuous Controlling Mode CNC Automatic Grade Semiautomatic Certification CE Diameter 40mm / 50mm / 60mm / 70mm / 80mm / 90mm Type Wood Process and Matching Equipment Capacity 180 - 450kg/H Color Green,Blue,etc Power 15-22kw Voltage If The Machine 380V,50Hz,3phase Export Package International Standard Export Package of The Machi Payment Terms. T/T, L/C Keywords Wood Briquette Machine Certifications CE Transport Package HDF Specification set Trademark Leabon Origin Zhengzhou, Henan HS Code 8474809090 Production Capacity 200 Units Per MonthProduct Description

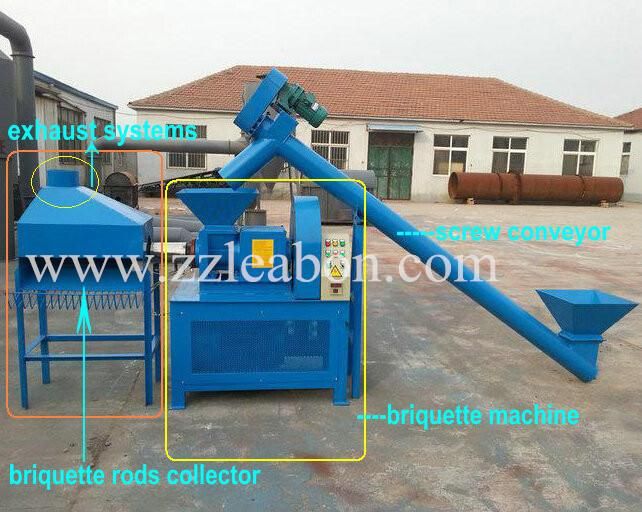

Sawdust Straw Stalk Wood Briquette Machine/Press
Features of wood briquette machine
1. High capacity, low energy consumption.
2. We have be approved by European SGS.
3. Compact design and perfect package making transport and storage easily.
4. Diameter and shapes can be customized.
5. Automatic temperature control system.
6. High throughput capacity and high quality briquettes.
Requirement of Raw Material:
Moisture: 8~12%
Size: ≤ 5mm
Final Product:
The out diameter of finished briquettes is 40-90mm. The length of the finished product can be controlled and changed according to your requirements. The briquettes can be used to heat boiler, fireplace, barbeque etc...

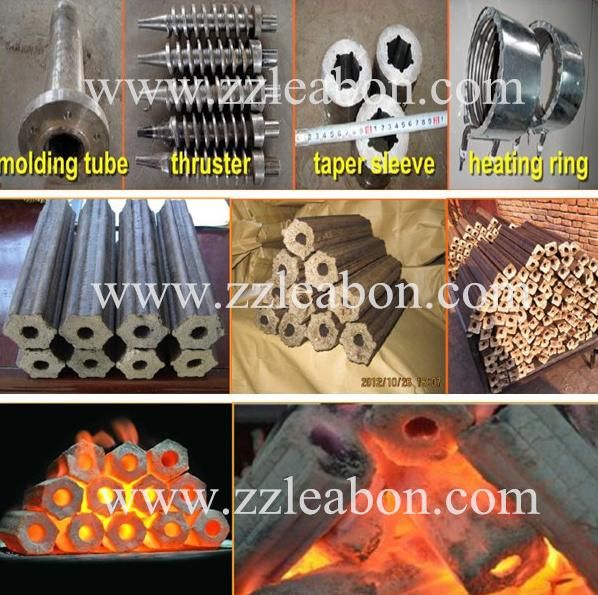

Spare parts and Final Briquette Rods
Main data of Briquette Machine
| Model Specifications | ZBJ-50 | ZBJ-80 |
| Capacity (kg/h) | 180-210 | 350-400 |
| Motor Power (kw) | 11-15 | 22 |
| Diameter of final product (mm) | 40, 50, 60 | 70, 80, 90 |
| Dimension Size (mm) | 1600*620*1350 | 2020*870*1500 |
| Grass Weight (kg) | 600 | 1180 |
Spare parts:
More details:
