• Model NO.：1325
• Inverter：4.5kw Inverter with Good Quality
• Table：Vacuum Absorption Table with T Slot with Pump
• X Y Z：Oblique Gear Rack, Ball Screw
• Drive System：Japan Yaskawa Servo Motor
• Type：Gantry Moving Machine
• Customized：Yes
• Control System：DSP or Mach3
• Dust Collection：Double Bags 3.0kw
• Working Area：Customized According to Customer Request
• Service：OEM or ODM
• Techincal Service：Oversea Service
• Spindle：Italy Hsd Air Cooled
• Working Size：1300mmx2500mm
• Transport Package：Woodcase
• Specification：1300x2500x200mm
• Trademark：ALLWIN
• Origin：Jinan, Shandong, China
• HS Code：8465990000
• Production Capacity：500,Month

Basic Info.

Model NO. 1325 Inverter 4.5kw Inverter with Good Quality Table Vacuum Absorption Table with T Slot with Pump X Y Z Oblique Gear Rack, Ball Screw Drive System Japan Yaskawa Servo Motor Type Gantry Moving Machine Customized Yes Control System DSP or Mach3 Dust Collection Double Bags 3.0kw Working Area Customized According to Customer Request Service OEM or ODM Techincal Service Oversea Service Spindle Italy Hsd Air Cooled Working Size 1300mmx2500mm Transport Package Woodcase Specification 1300x2500x200mm Trademark ALLWIN Origin Jinan, Shandong, China HS Code 8465990000 Production Capacity 500/Month

Product Description

Technical Features:
1)Welded steel pipe lathe bed, strong and never out of shape
2)Double motors and drivers of Y axis which can ensure steady movement
3)Rack gear transmission ensures fast speed and high accuracy
4)Imported HIWIN square rail ensures high accuracy and heavy workload
5)Adopt vacuum system option. Made by advanced international technology, with double cavities, configured with vacuum pump of strong adsorption, can absorb different size materials
6)Machine with leadshine driver and stpper motor, you can choose YAKO 2811 driver or YASKAWA servo motor and driver.
7)Humanistic design,the machine can be disassembled,so it is easily transported.
Service. We have 10 experienced engineers and 1 technical online customer service to supply 18-hour online service. If you have any problems, we can solve them online via skype and whatsapp
B. Also, remote control service via the software Team Viewer is provided for the customer to install the software and adjust the program.

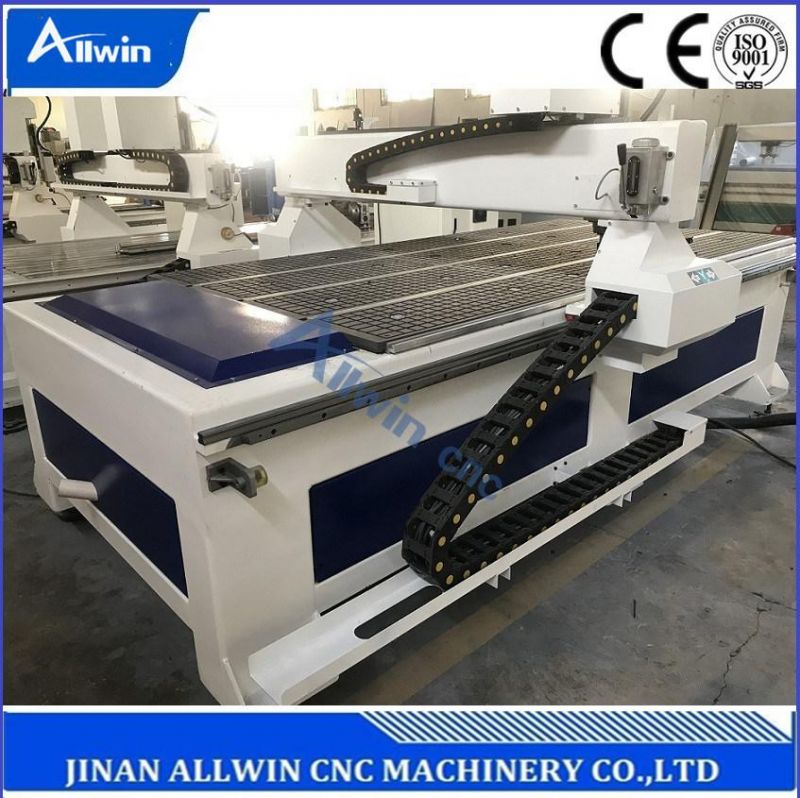

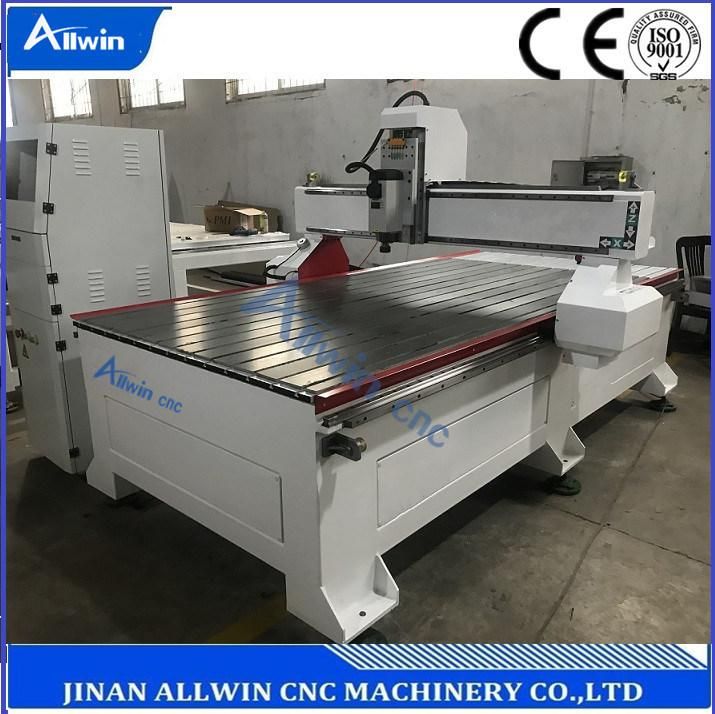

CNC ROUTER 1325

NO.	Description	Parameter
1	X,Y,Z Working Area	1300x2500x200mm
2	X,Y,Z Traveling Positioning Accuracy	±0.03/300mm
3	X,Y,Z Repositioning Accuracy	±0.03mm
4	Table Surface	T-slot Table
5	Frame	Welded Structure
6	X, Y Structure	Rack and Pinion Drive, Hiwin Rail Linear Guide
7	Z Structure	Hiwin Rail Linear Guide and TBI Ball Screw
8	Max. Power Consumption	(Without Spindle)  2.5kw~3Kw
9	Max. Rapid Travel Rate	25000mm/min
10	Max. Working Speed	18000mm/min
11	Spindle Power	3KW water cooling spindle
12	Spindle Speed	0-24000RPM
13	Drive Motors	Stepper Motor/Servo motor
14	Working Voltage	AC380V/50/60Hz,3PH (Option: 220V)
15	Command Language	G Code
16	Operating System	DSP System (Options: Ncstudio/Mach3 PC Software)
17	Computer Interface	USB
18	Flash Memory	128M(U Disk)
19	Collet	ER25
20	X,Y Resolution	<0.01mm
21	Software Compatibility	Type3/UcancameV9 Software, (Option: Artcam Software)
22	Running Environment  Temperature	0 - 45 Centigrade
23	Relative Humidity	30% - 75%
24	Inverter	Best
25	Electrical components	China good brand
26	Limit switch	OMRON
27	Driver	Leadshine

FAQ
1.How long about the machine's guarantee?
2 years
2.How about your after-sales service ?
Technical support by phone, WhatApp,Skype,e-mail or QQ around the clock.
3.How can we install the machine?
English version manual and operation video CD disk.
4.How about the payment terms?
30% T/T for deposit, 70%T/T paid before shipping. T/T, West Union, Paypal
5.Do you Arrange Shipment For The Machines?
Yes, dear customers, for FOB or CIF price, we will arrange shipment for you.
For EXW price, clients need to arrange shipment by themselves or their agents
