• Model NO.：CR1325
• Guide rail：20mm square guide rail for XYZ axis;
• Control System：NCSTUDIO controller system
• Working voltage：AC220V,380V 50,60Hz
• Inverter：3.7KW XFT inverter
• Drive Motor：stepper motor&Leadshine driver
• Spindle Speed：0-24000r,min
• Spindle Power Motor：3.0KW water Cooling spindle made in China
• Max. Working Speed：25000mm,min
• Transport Package：Film Package
• Specification：1300*2500*200mm
• Trademark：Zicar
• Origin：China
• HS Code：8465990000
• Production Capacity：500

Basic Info.

Model NO. CR1325 Guide rail 20mm square guide rail for XYZ axis; Control System NCSTUDIO controller system Working voltage AC220V/380V 50/60Hz Inverter 3.7KW XFT inverter Drive Motor stepper motor&Leadshine driver Spindle Speed 0-24000r/min Spindle Power Motor 3.0KW water Cooling spindle made in China Max. Working Speed 25000mm/min Transport Package Film Package Specification 1300*2500*200mm Trademark Zicar Origin China HS Code 8465990000 Production Capacity 500

Product Description

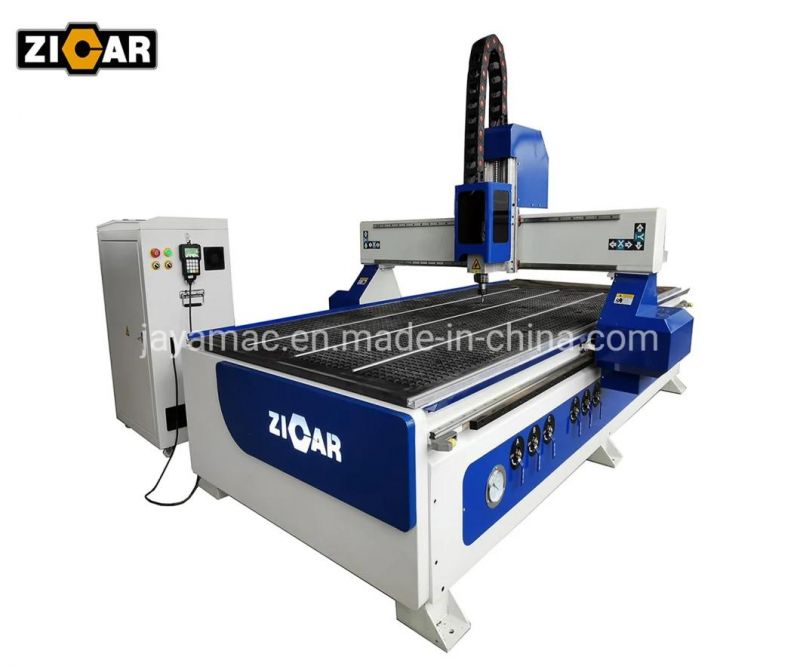

CNC Router CR1325
Features:

The machine is widely used in furniture processing industry, home decoration, wooden doors manufacturing.
Applicable industry: wood furniture, wooden crafts processing industry, suitable for large panel cutting and large relief carcving products.
Applicable material: solid wood panel, artificial board, acrylics, PVC, MDF and so on.

Specifications:


X Working Area	1300mm
Y Working Area	2500mm
Z Working Area	200mm
Traveling Positioning Accuracy	±0.05mm
Repositioning Positioning Accuracy	±0.05mm
Table Surface	T-slot aluminum working table
Body structure	Steel structure with six legs
X,Y ,Z Structure	German gear wheel for XY axis, Taiwan TBI ball screw for Z axis
Max. Power Consumption(Without spindle)	1.84KW
Max. Working Speed	25000mm/min
Spindle Power Motor	3.0KW water Cooling spindle made in China
Spindle Speed	0-24000r/min

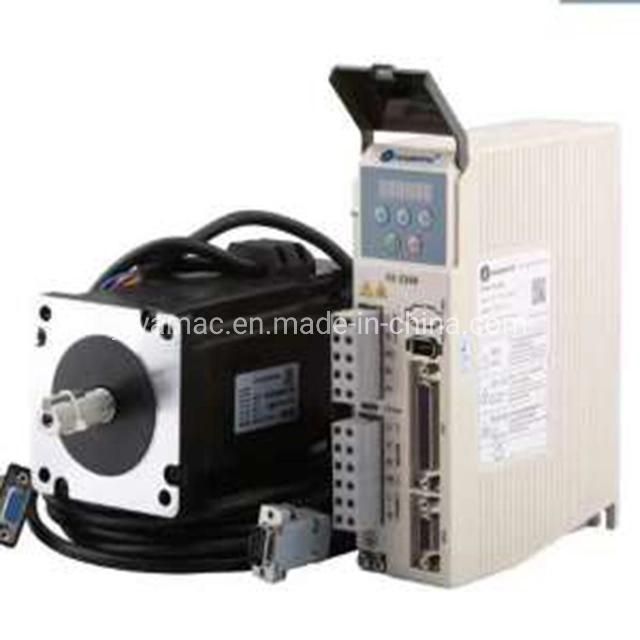

Drive Motor	stepper motor&Leadshine driver
Inverter	3.7KW XFT inverter
Command	G-code*.u00*.mmg*.plt
Working voltage	AC220V/380V 50/60Hz
Control System	NCSTUDIO  controller system
Guide rail	20mm square guide rail for XYZ axis;
Oiling system	Manually oiling
Control cabinet	Independence cabinet
Dust collector	3.0kw dust collector
Applicable material	Wood,plywood,acrylic,metal,aluminum,brass,glass etc

Detail Photos:

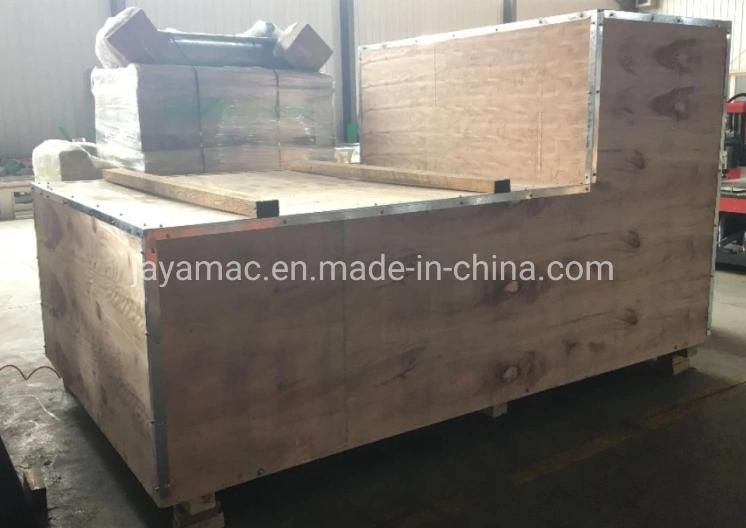

Packing pictures:



Company Information:
