• Model NO.：MZ2
• Energy Saving：Energy Saving
• Warranty：1 Year
• Customized：Customized
• Condition：New
• Model：MZ2
• Max Drilling Depth：60 mm
• Motor Power：1.5 Kw*2
• Pressure of Compresser Air：0.6-0.8MPa
• Manimum drilling diameter：35mm
• Number of auger shaft：21
• Rotation speed：2800r,min
• Packing Size：1400X1300X1400mm
• Overall size：2000X1200X1500mm
• Transport Package：Wooden Box
• Specification：2000X1200X1500mm
• Trademark：Zicar
• Origin：China
• HS Code：8465950000
• Production Capacity：500

Basic Info.

Model NO. MZ2 Energy Saving Energy Saving Warranty 1 Year Customized Customized Condition New Model MZ2 Max Drilling Depth 60 mm Motor Power 1.5 Kw*2 Pressure of Compresser Air 0.6-0.8MPa Manimum drilling diameter 35mm Number of auger shaft 21 Rotation speed 2800r/min Packing Size 1400X1300X1400mm Overall size 2000X1200X1500mm Transport Package Wooden Box Specification 2000X1200X1500mm Trademark Zicar Origin China HS Code 8465950000 Production Capacity 500

Product Description

Products Description

Features1. Foldable guide bar for rip fence.
2. Boring unit pneumatical tiltable 0,45,90 degrees.
3. Drill board in single line with CE certificate.
4.This machine is suitable to the mortise process of solid wood,shaving wood and MDF.
5. It is easier operation,high efficieny and accuracy.
6. It can drill at the directions both horizontal and vertical,which is the necessary machine for wood industry.Specifications

Model	MZ2
Manimum drilling diameter	35mm
Manimum drilling depth	60mm
Number of auger shaft	21
Rotation speed	2800r/min
Motor power	1.5kw*2
Air pressure	0.6-0.8Mpa
Overall size	2000x1200x1500mm
Packing Size	1400x1300x1400mm

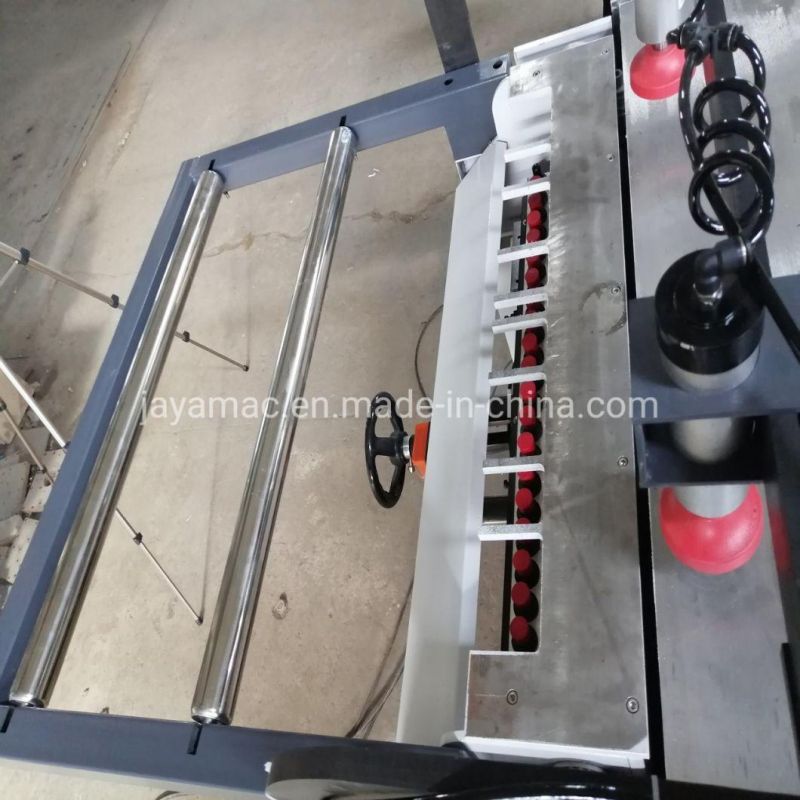

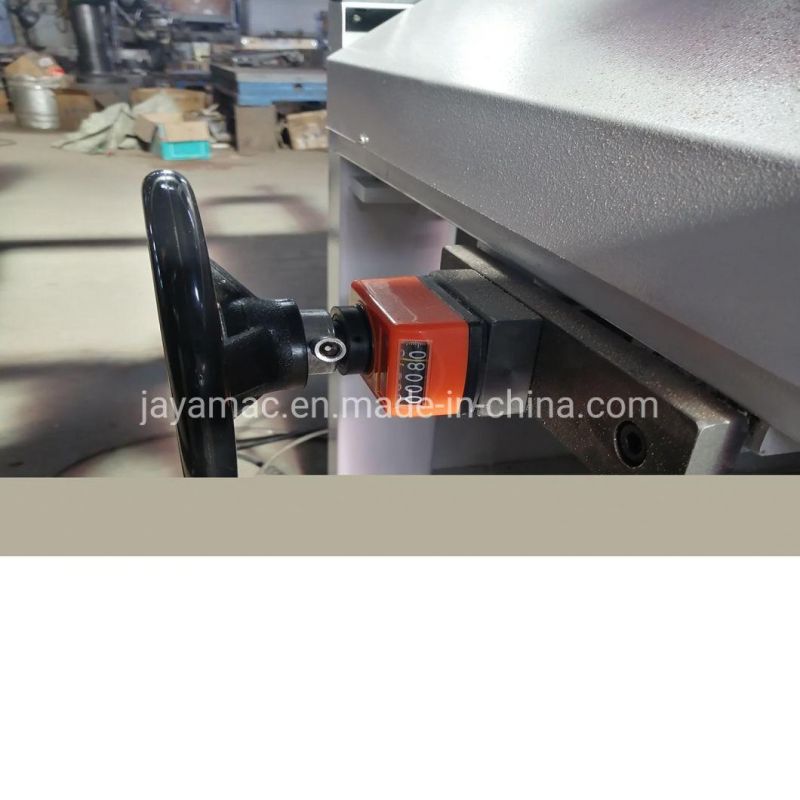

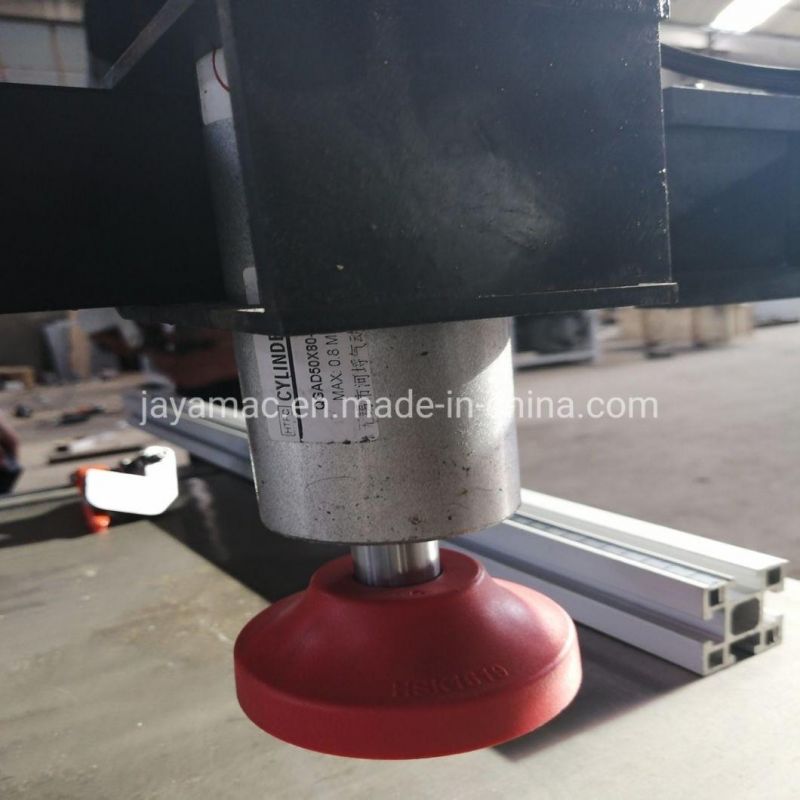

Detail photos




Packing pictures


Company InformationJAYA INTERNATIONAL,  has been dealing in woodworking machinery for more than 20 years, started from Jaya Trading at the beginning of 1992.Our own factory,Yantai Lida Woodworking Machinery Co., Ltd, has over 52 years' history of manufacturing all kinds of China-made woodworking machinery since 1960, especially for the MQ series Multi-use woodworking machine & ML series Combined woodworking machine, it has the extremely important guiding function in the circle. During the past few years, with the development of the company and the staff, we also expanded our production line to related fields like general machinery, CNC routers, Laser machinery, Plywood making machine and related hardware, ect.

OthersAll inquiries will be answered within 24 Hours
We are right here waiting for an opportunity to serve you with our rich experiences.
We take care of every screw out from our hand, and will be very glad to become your reliable, responsible and considerate partner in business and much more, like what we are doing for our clients from Europe, America, Africa and Southeast Asia.
