China Professional 2-2.5tph Wood Pellet Machine Biomass Pellet Mill for Sale

Jiangsu Liangyou Zhengda Co., Ltd.
  • Type:Wood Pellet Mill
  • Voltage:380V
  • Automatic Grade:Automatic
  • Controlling Mode:Artificial
  • Energy Saving:Energy Saving
  • Certification:CE, ISO

Base Info

  • Model NO.:WZLH680
  • Warranty:1 Year
  • Customized:Customized
  • Condition:New
  • Color:Multi Color
  • After-sales Service:Engineer Available
  • Capacity(T/H):2-2.5
  • Main Power(Kw):160,185
  • Pellet Size(mm):6-8
  • Power of Screw Feeder(Kw):3
  • Power of Force Feeder(Kw):1.5
  • Transport Package:Iron Pallet and Soft Guard
  • Specification:CE, ISO9001, SGS
  • Trademark:FDSP
  • Origin:Jiangsu, China (Mainland)
  • HS Code:8479300000
  • Production Capacity:5 Sets,Month

Description

Basic Info.

Model NO. WZLH680 Warranty 1 Year Customized Customized Condition New Color Multi Color After-sales Service Engineer Available Capacity(T/H) 2-2.5 Main Power(Kw) 160/185 Pellet Size(mm) 6-8 Power of Screw Feeder(Kw) 3 Power of Force Feeder(Kw) 1.5 Transport Package Iron Pallet and Soft Guard Specification CE, ISO9001, SGS Trademark FDSP Origin Jiangsu, China (Mainland) HS Code 8479300000 Production Capacity 5 Sets/Month

Product Description

China professional 2-2.5TPH wood pellet machine biomass pellet mill for sale
Product Description
1. It is widely used to make pellets from light substance, such as wood chips,
sawdust, straw, pasture, Chrysanthemum, palm leaf and so on;
2. The feeder's especial structure
Makes materials conveyed evenly, it is specially designed for pellet of light substancewith the densityof 0.3-0.6g/ cm3;
3. Feeder, conditioner and chute
Are made of stainless steel with long service life;
4. It is with magnet and over load protection system, which protects the machine
during production;
5. Feeder
Has a variable speed controller to meet different outputs requirements;
6. It makes gear directly-connecting as the driver, and is with quick-release die fixed by clamps, which will increase the output by 15% when compared to a machinewith a belt conveyer;
7. The bearing and oil seal in the main drive
Are imported from Japan to ensure highly-efficient, stability and high quality;
8. The alloy steel die is with international advanced equipment and techniques, and has long service life, and can make slippery pellets of the highest quality.

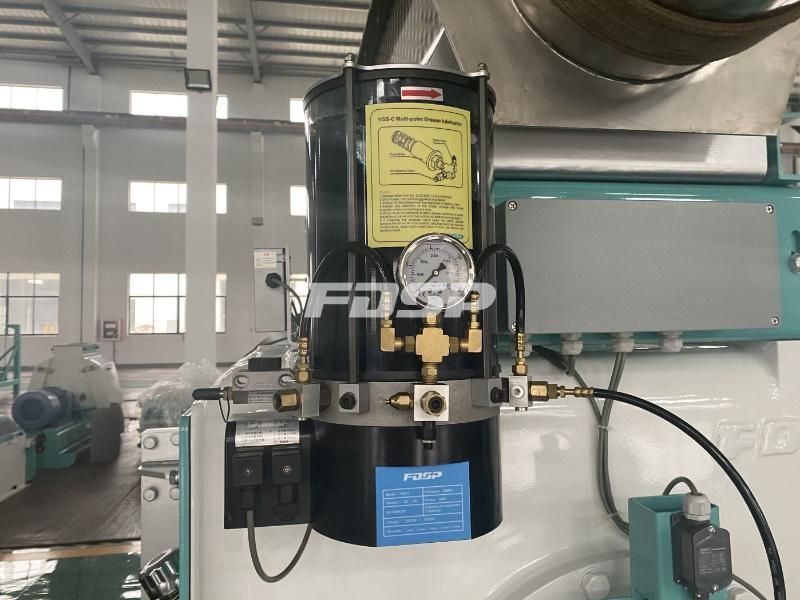

9. The Lubrication System is made up of thetracing and inspecting system controlled by the microcomputer, auto-lubricating system on time and compelled lubricating system by hand.

China Professional 2-2.5tph Wood Pellet Machine Biomass Pellet Mill for SaleChina Professional 2-2.5tph Wood Pellet Machine Biomass Pellet Mill for Sale

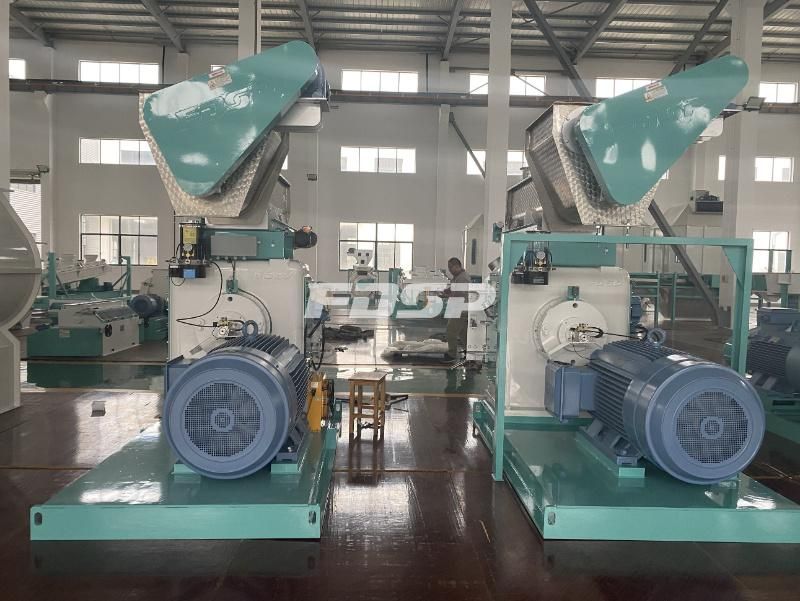

Ring die wood pellet mill is the most important process in the wood pellet production line. It is widely used in compacting of wood, straw, other biomass sources into pellet. Capacity ranges from 1T to 10T per hour. Our wood pellet mill adopt Imported bearings from Sweden, the main motor is from Siemens, high  quality components make the pellet mill more efficient and durable.

Performance Parameter
ModelWZLH420WZLH520WZLH680WZLH780
Capacity(T/H)0.8-1.21.5-1.82-2.52.5-3.5
Main motor power(kw)75/90110/132160/185200/220
Feeder power(kw)2.2344
Ring die dia(mm)420520680780
Pellets dia(mm)6-86-86-86-8

Usage of Wood PELLETS
Fuel for Burning(85-90%)
Hole 6/8/10mm: Household stoves
Hole 8/10mm: Industrial

Heating value: 17.5-19.5MJ/kg.
Density: 1.1-1.5kg/cm3
Moisture: ≤ 8%.
Ash content: <1.5%.


About Us
Jiangsu Liangyou Zhengda Co., Ltd which has about 20 years of experience in the comprehensive development and utilization in agriculture field. It covers an area of 15000 square meters, locating in the zhongguancun science &technology industrial park in Liyang City, JiangSu Province, PRC.
FDSP has sold Feed machinery and fertilizer machinery throughout China and exported to Korea, South Africa, Russia, Thailand, Taiwan, Philippines, Malaysia, Australia, Egypt, Syria, Nigeria, Ethiopia, India, Bangladesh, Pakistan, Iran etc.


Customers From All Over The World
We insist on "Faith & Federation , Develop & Creativity, Service & sincerity , Pluck & Prestige " ,also we own outstanding R&D team with the sense of innovation and cooperation.
China Professional 2-2.5tph Wood Pellet Machine Biomass Pellet Mill for Sale

Our Service:
Warranty:1 year
Our professional service includes: Free training, Guidance Installation and Debugging.
If you have any question, please contact us freely. Our after-sales service team on-line will do the best to accomplish your sincere requirement on time.


Certifications:
FDSP has obtained ISO9001:2008 international quality system certification, CE certification for feed machinery, fertilizer machinery, biomass equipment and complete sets of production line, SGS certification.
China Professional 2-2.5tph Wood Pellet Machine Biomass Pellet Mill for Sale

FAQ
1.Q:Are you a factory or trading company?
A:We are a factory .
2.Q:Where is your factory located? How can I visit there?
A:Our factory is located in Liyang City, Jiangsu Province, China, near Shanghai.You can fly to Shanghaiairport directly.All our clients, from home or abroad, are warmly welcome to visit us!
