• Model NO.：JZ-D-188
• Weight：5500kgs
• Size：4500*1340*2100mm
• Transport Package：Container
• Specification：steel
• Trademark：JJZ
• Origin：China
• HS Code：8419320000
• Production Capacity：1000sets,Year

Basic Info.

Model NO. JZ-D-188 Weight 5500kgs Size 4500*1340*2100mm Transport Package Container Specification steel Trademark JJZ Origin China HS Code 8419320000 Production Capacity 1000sets/Year

Product Description

Veneer dryer machineProduct Description:
Veneer dryer is the main equipment for plywood production. It is also called lifting veneer dryer. It solves the problem of high moisture content of rotary veneer. Therefore, veneer dryer is mainly used for drying veneer. Based on reducing the moisture content of veneer, the loss of veneer is minimal. In order to meet the technological requirements, veneer dryer is composed of transmission chamber, drying chamber and cooling chamber.


Advantages:

1. We use simultaneous closed equipment for this machine, high effiency.

2. It is applied in drying, leveling of peeled veneer .

3. The plane heating plate of this machine is formed by welding many pieces of quadrate tube, thus temperature is uniformly distributed.

4. The hot plate is made of aeronautical materials , so its service life is longer and is of high flatness to ensure the quality of the finished board.

5. Detachable frame and solid cylinder with a stable function, full automatic hydraulic system!

6. We can also as the size you request to meet your need.

Product Description:

Model	JZ-D-166
Normal pressure	100Tons
Loading in direction	Transversal side
Size of Hot platen	1400*2400*40mm
Cylinders	100*1050mm
Spacing of layer	70mm
Hot platen number	16 layers
Capacity	1cbm/h
Product Dimension	1400X3200X2520mm
Payment terms	T/T 30%,Balance before leave factory

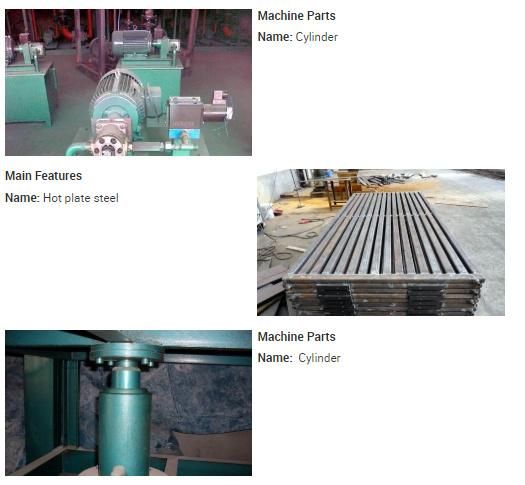

Detail images:



Certifications:

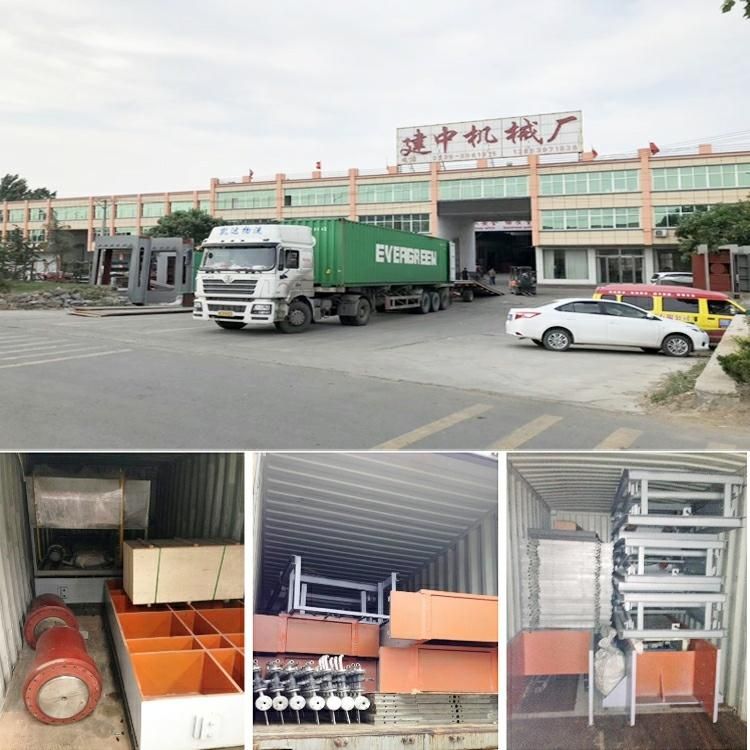

Packing&Shipping:




Our Services:



About us:

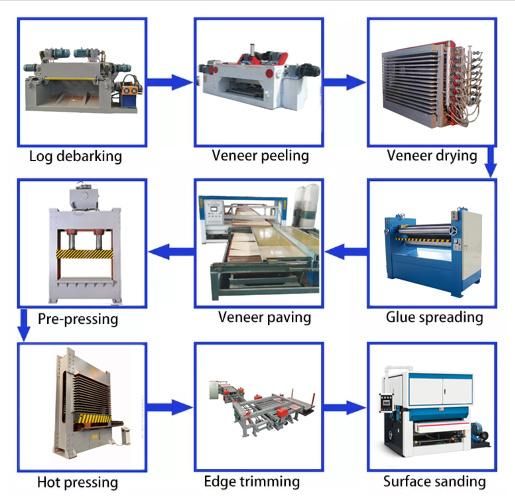

LINYI JIANZHONG WOOD MACHINERY CO.,LTD was established in 1998, which is located in Linyi, Shandong province, with a 30000 square meters' factory. Our company specializes in wood working machinery that includes wood debarker, veneer peeling machine, veneer dryer, glue spreader, glue mixer, plywood hot press machine, plywood cold press machine, planking machine, plate turnover, lift table, plywood sawing machine, grinding oblique machine, plywood paving machine and plywood sanding machine, with abundant domestic sales experience and export experience.
With the whole plywood production line and the strong research team, the machines which independently developed by our company have gained national patents and good reputation. With the huge economic forces and production well as rich experience, we can provide the perfect equipments and the solution to the wood working industry. Besides, our products can be found everywhere in China and we also export to Australia, Southeast Aisa and so on. Currently, our products have been exported to more than 20 countries and regions, we provide life-cycle service solutions and technical support for our customers.

History:




Please be comfortable to contact us right now to get more information if you have some interests!

All kinds of plywood and plywood woodworking machinery products can be customized according to your requirements~
