• Model NO.：TJ,4X8
• Controlling Mode：CNC
• Power Source：Electric
• Processing Accessory：None
• Certification：CE, ISO, FDA, Coc
• Roller Adjust Way：by Compressed Air
• Transport Package：Container
• Specification：4500x2990x1850mm
• Trademark：METRO MACH
• Origin：China
• HS Code：8465990000
• Production Capacity：500sets,Year

Basic Info.

Model NO. TJ/4X8 Controlling Mode CNC Power Source Electric Processing Accessory None Certification CE, ISO, FDA, Coc Roller Adjust Way by Compressed Air Transport Package Container Specification 4500x2990x1850mm Trademark METRO MACH Origin China HS Code 8465990000 Production Capacity 500sets/Year

Product Description

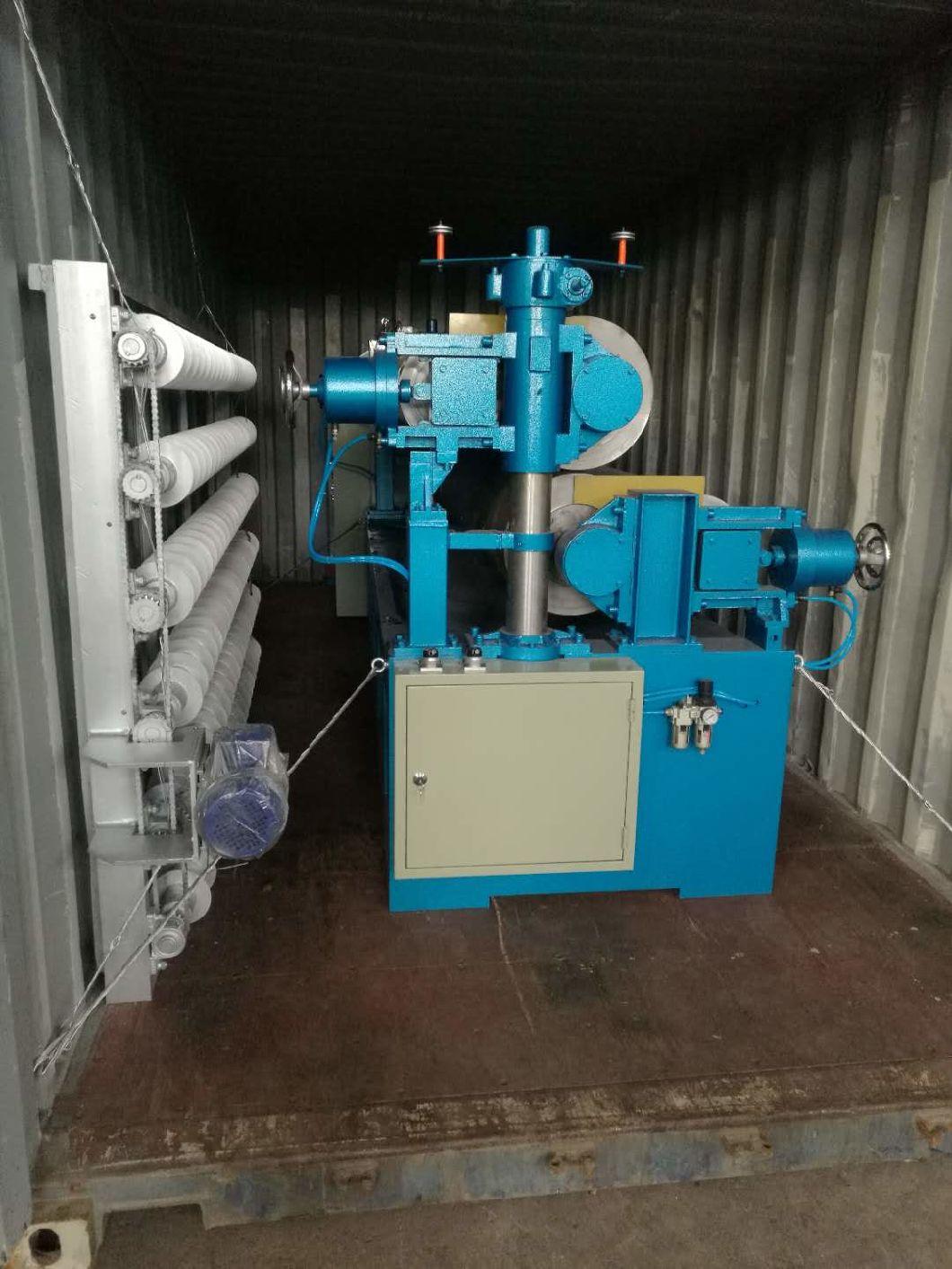

Four Rollers Heavy Glue Spreader For PlywoodMain features:
1. Adopt the big diameter and high precision thick rollers: high rigidity, glue uniform.
2. Separately designed gears transmission box: Low noisy, work stable, long working life.
3. Start device specical designed for the rollers lifting and fasten: Safety, fast and convenient.
4. Roller speed and veneer out-put conveyor speed can be adjusted separately to meet different working requirements.
5. Emergency stop device to prevent any accidents.

Main technical specifications:

Glue sprader machine model	BTJ-8QZ
Rubber spreadering rollers	Φ418mm x 2pcs
Metal squeezing rollers	Φ295mm x 2pcs
Rubber spreading rollers speed	0-60rpm
Metal squeezing rollers speed	0-17rpm
Veneer out-put conveyor speed	0-90m/min
Glue spreader motor power	7.5Kw
Veneer out-put conveyor motor power	0.75Kw
Glue spreader machine overall dimension	4500x2950x1850mm
Glue spreader weight	5500Kgs
