• Model NO.：ZDP-R-RP1300
• Condition：New
• Color：Customized
• Transport Package：Plywood Case
• Specification：Net weight: 2200kg
• Trademark：QDZD
• Origin：China
• HS Code：84659300
• Production Capacity：500sets

Basic Info.

Model NO. ZDP-R-RP1300 Condition New Color Customized Transport Package Plywood Case Specification Net weight: 2200kg Trademark QDZD Origin China HS Code 84659300 Production Capacity 500sets

Product Description

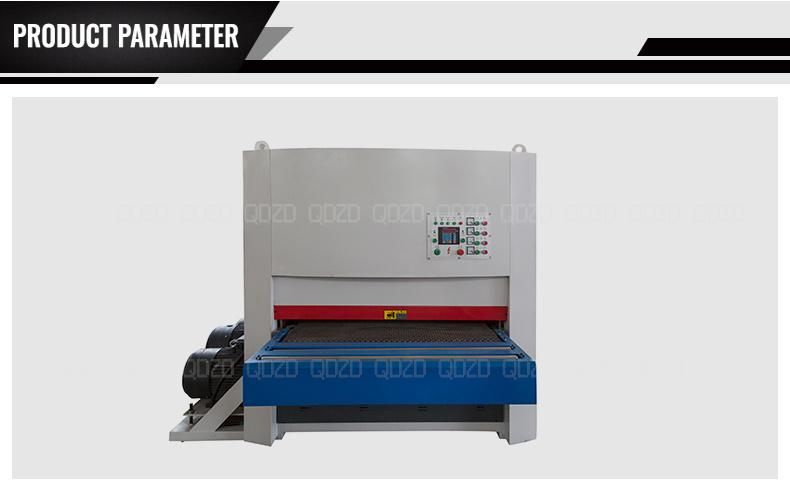

1300mm wide belt sander sanding machine with planer for 4*8 board

Mainly used for surface sanding and fixed thickness sanding, suitable for timber, wood panels, blockboard, plywood, plywood, insulation panels, insulation materials, calcium silicate board, fiberboard, and other products.

Specification:


Max. working width	630mm	1000mm	1300 mm
Working thickness	2.5-110 mm	2.5-110 mm	2.5-110 mm
No.1 sanding belt speed	20 m/s	20 m/s	20 m/s
No.2 sanding belt speed	18 m/s	18 m/s	18 m/s
Sanding belt size	650*1900mm	1020*2020	1320*2020 mm
Conveyor speed	6~38 m/min	6~38 m/min	6~38 m/min
Total power	29.5kw	41kw	81kw
Working pressure	0.55 MPA	0.55 MPA	0.55 MPA
Consumption of compressed air	5000 m³/h	5000 m³/h	5000 m³/h
Overall dimension	1450*2450*2050mm	1700*2450*2050mm	2150*3000*2050mm
Net weight	3000kg	3600kg	4500kg


Feature:

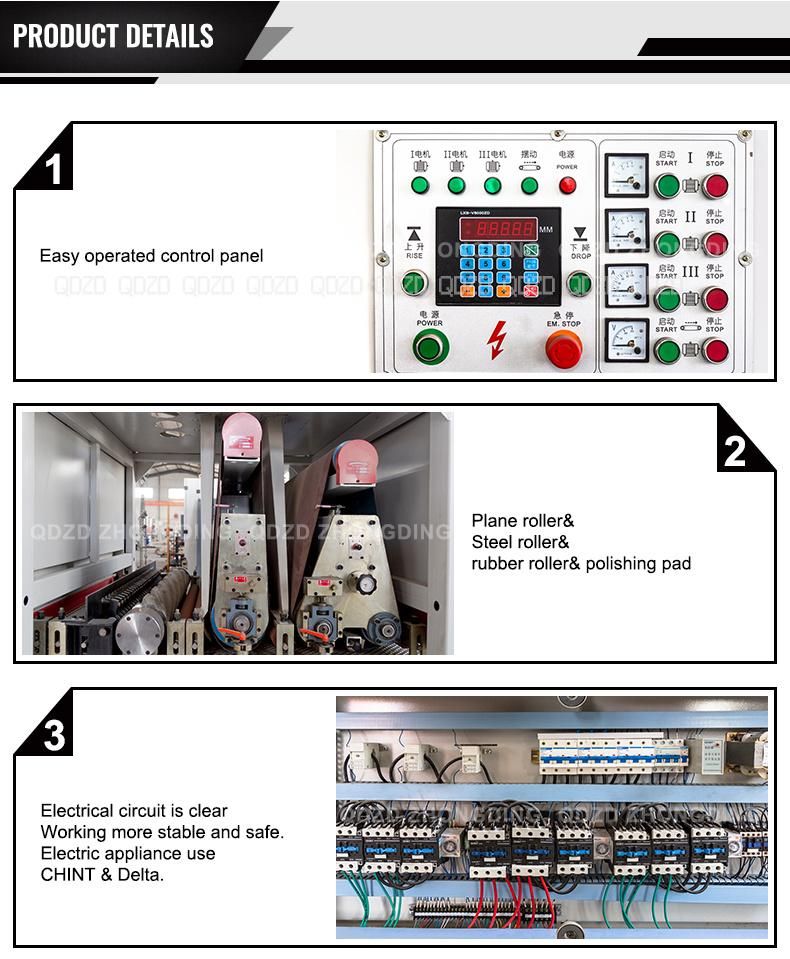

1.Front microcomputer control panel, easy operation, high accuracy.
2. Block siding and beams using precision castings, small deformation, well shock-absorbing effect.
3. Steel roller goes up and down, partial sanding easy to adjust, the fixed thickness thick roller with a thicker adhesive layer to improve the accuracy of sanding.
4. Has the fault displaying function, maintenance more convenient, If problems happen, the device is powered down.
5. If belt deviation and lack of pressure, the machine will stop working automatically and conveyor bed shutdown. Automatically to ensure safety, the workpiece will not be destroyed.
Mainly used for surface sanding and fixed thickness sanding, suitable for timber, wood panels, blockboard, plywood, plywood, insulation panels, insulation materials, calcium silicate board, fiberboard, and other products.
1.Front microcomputer control panel, easy operation, high accuracy.
2. Block siding and beams using precision castings, small deformation, well shock-absorbing effect.
3. Steel roller goes up and down, partial sanding easy to adjust, the fixed thickness thick roller with a thicker adhesive layer to improve the accuracy of sanding.
4. Has the fault displaying function, maintenance more convenient, If problems happen, the device is powered down.
5. If belt deviation and lack of pressure, the machine will stop working automatically and conveyor bed shutdown. Automatically to ensure safety, the workpiece will not be destroyed.
