• Model NO.：ZDULR-R1300
• Color：Customized
• Transport Package：Plywood Case
• Specification：Net weight: 2200kg
• Trademark：QDZD
• Origin：China
• HS Code：84659300
• Production Capacity：500sets

Basic Info.

Model NO. ZDULR-R1300 Color Customized Transport Package Plywood Case Specification Net weight: 2200kg Trademark QDZD Origin China HS Code 84659300 Production Capacity 500sets

Product Description

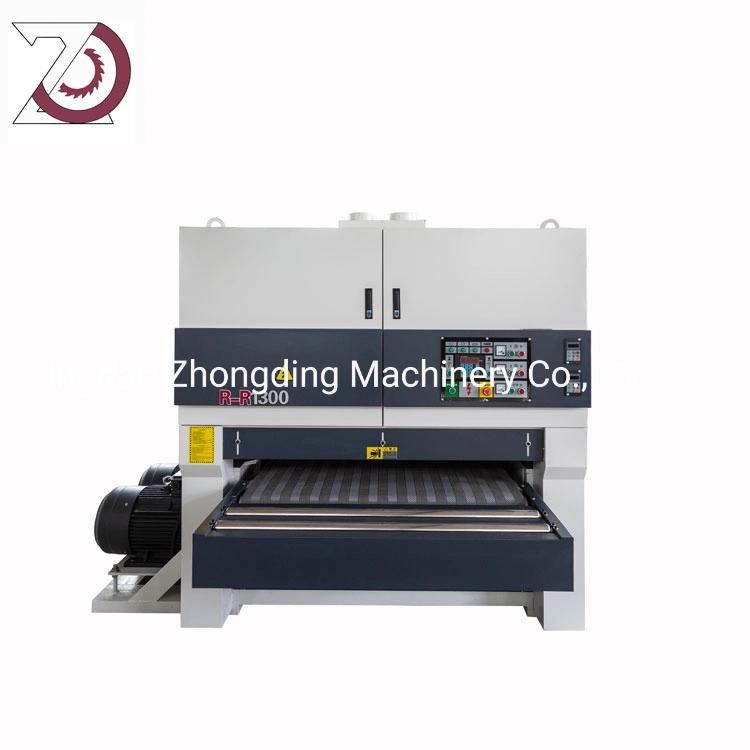

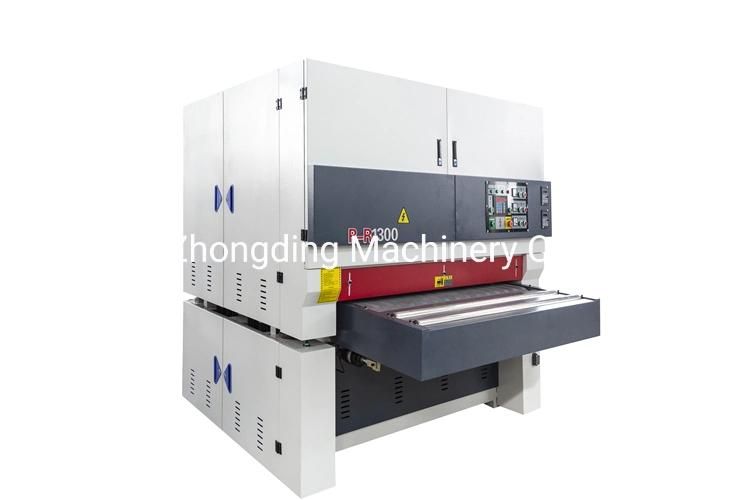

Woodworking sanding machine upper body float wide belt sander
Mainly used for surface sanding and fixed thickness sanding, suitable for timber, wood panels, block board, plywood, plywood, insulation panels, insulation materials, calcium silicate board, fiberboard, and other products.
Specification:


Max. working width	40-1300 mm
Working thickness	3-100 mm
Working length	460mm
Feeding speed	frequency control
Sanding belt size	1320*2020
Conveyor speed	6~38 m/min
Total power	27.12kw
Working pressure	0.55 MPA
Consumption of compressed air	5000 m³/h
Overall dimension	2100*2450*2100mm
Net weight	4500kg

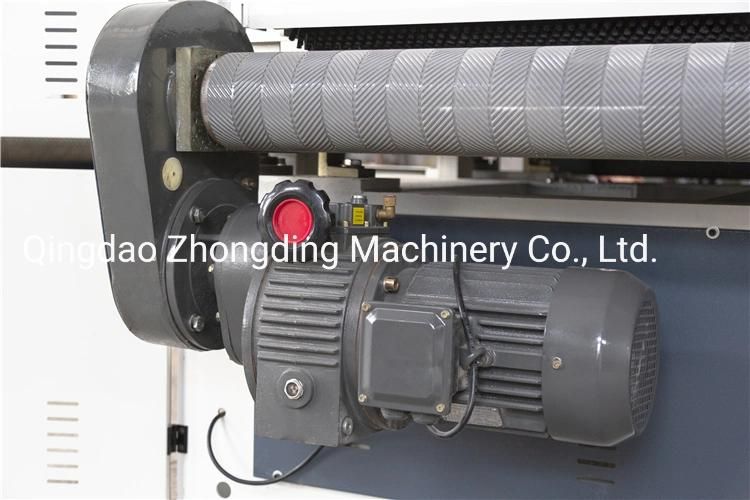

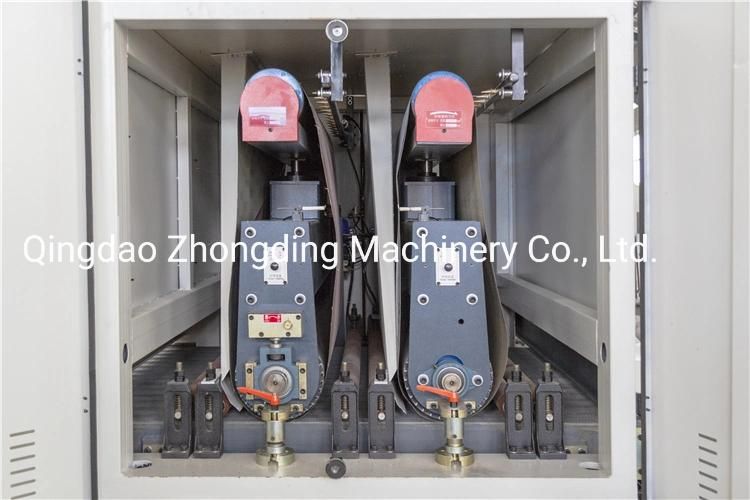

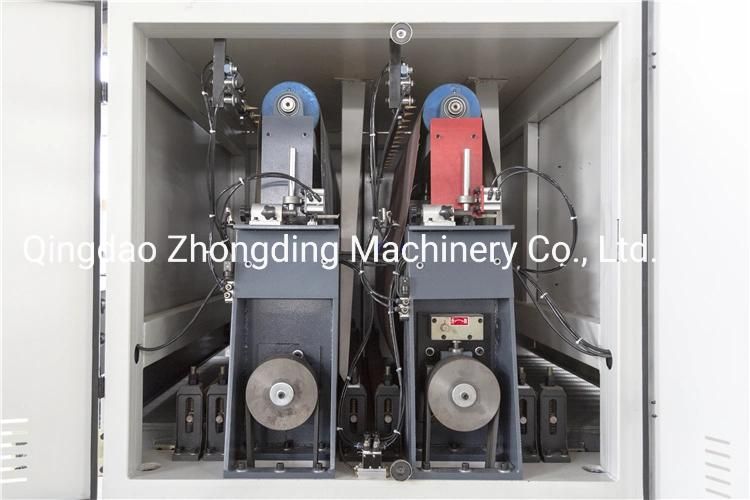

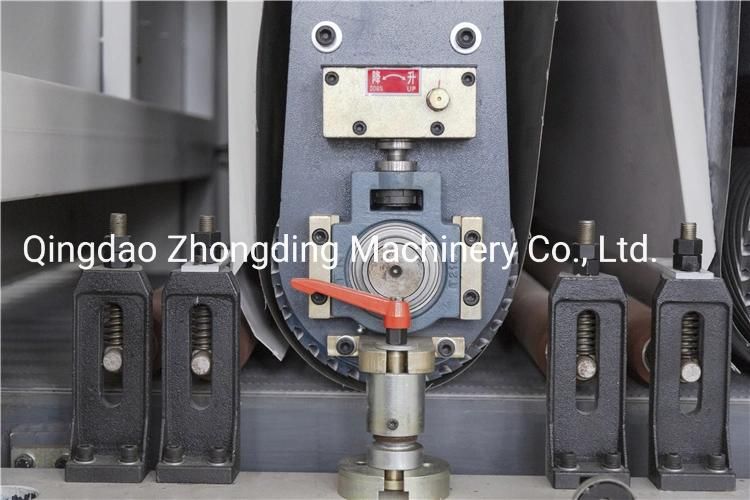

 Product details:

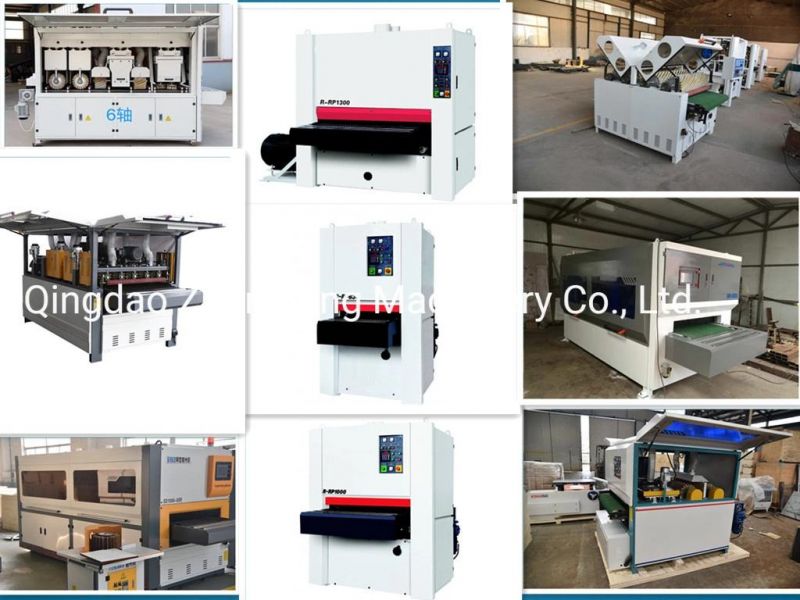

Similar product:





Feature:

1.Front microcomputer control panel, easy operation, high accuracy.
2. Block siding and beams using precision castings, small deformation, well shock-absorbing effect.
3. Steel roller goes up and down, partial sanding easy to adjust, the fixed thickness thick roller with a thicker adhesive layer to improve the accuracy of sanding.
4. Has the fault displaying function, maintenance more convenient, If problems happen, the device is powered down.
5. If belt deviation and lack of pressure, the machine will stop working automatically and conveyor bed shutdown. Automatically to ensure safety, the workpiece will not be destroyed.
Mainly used for surface sanding and fixed thickness sanding, suitable for timber, wood panels, block board, plywood, plywood, insulation panels, insulation materials, calcium silicate board, fiberboard, and other products.
1.Front microcomputer control panel, easy operation, high accuracy.
2. Block siding and beams using precision castings, small deformation, well shock-absorbing effect.
3. Steel roller go up and down, partial sanding easy to adjust, the fixed thickness thick roller with a thicker adhesive layer to improve the accuracy of sanding.
4. Has the fault displaying function, maintenance more convenient, If problems happen, the device is powered down.
5. If belt deviation and lack of pressure, the machine will stop working automatically and conveyor bed shutdown. Automatically to ensure safety, the workpiece will not be destroyed.




Order terms:

1) Term of payment: T/T, 30% deposit and the balance is paid before delivery
2) Delivery: 10-15days
3) Machine voltage: optional
4) Warranty: 1 year
5) MOQ: 1 Set
6) OEM service is ok
7) HS code: 84659900
8) Certificate: CE&ISO

FAQ:

Q: Are you a manufacturer or a trading company?

A: We are the manufacturer with 9 years experience.



Q: What kind of products do you have?

A: We produce and sell woodworking machines including panel saw, edge banding machine, press machine, multiple drilling machine, gluing machine, sanding machine and any other woodworking tools and equipments.



Q: Do you have CE or ISO certification?

A: Yes we have both.



Q: What's your warranty?

A: We offer one year warranty.



Q: Do you offer oversea after-sale service?

A: Yes if necessary.



Q: What's your advantage comparing with other suppliers?

A: With 9 years of experience, we have built a complete operating system including ordering process, production, quality control and after-sale service which helps both sides a lot in communicating, saving the cost, ensuring the quality and solving the problems.

Package:





factory:
Qingdao Zhongding Machinery Co.,Ltd is a professional manufacturer in woodworking machine. Our products include:

-Panel saw
-Edge banding machine
-Multiple drilling machine
-Press machine
-Gluing machine
-Sanding machine
-Other woodworking machines

We are looking forward a long term cooperation with our customers and offer high quality products&service with our passion.
