• Model NO.：MB2061
• Cutter Shaft：8
• Spindle Speed：7~30m,min
• Process Type：Heavy Processing
• Certification：CE, ISO
• Marketing Type：New Product 2020
• Core Selling Point：Easy to Operate
• Core Components：Motor
• Applications：Woodworking
• Transport Package：Film Package or Plywood Case
• Specification：2942*1260*1780mm
• Trademark：ZICAR
• Origin：China
• HS Code：8465100000
• Production Capacity：100pieces,Month

Basic Info.

Model NO. MB2061 Cutter Shaft 8 Spindle Speed 7~30m/min Process Type Heavy Processing Certification CE, ISO Marketing Type New Product 2020 Core Selling Point Easy to Operate Core Components Motor Applications Woodworking Transport Package Film Package or Plywood Case Specification 2942*1260*1780mm Trademark ZICAR Origin China HS Code 8465100000 Production Capacity 100pieces/Month

Product Description

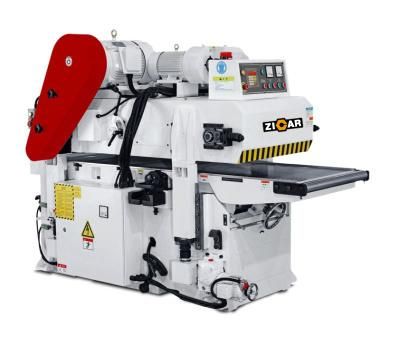

Products Description

Features
1. The machine bed is cast from high grade cast iron to ensure the stability of the machine.
2. This adopts step-less material feeding, material feeding speed ranges from 5 to 24 m/min.
3. Each main shaft is driven by independent electric motor, cutting fore is poweful;
4. Main shaft is adjusted to focus on the front, operation is convenient;
5. Hard chrome plating work table is durable;
6. Multi-group drive rollers improve feeding efficiency;
    International brands electrical parts are applied for good stability;
7. Spare parts are thick and solid to maintain high precision, high stability and high reliability;
8. Pneumatic compressed feeding roller is applied, the pressing force can be adjusted by stages;
9. Which is favorable for smooth feeding of timbers with different thickness;
10. Completely sealed safety shield can avoid flying of saw dust and isolate noise efficiently and protect operators.Product Paramenters

SPECIFICATION AND MODEL	MB2061
Maximum processing width	610mm
Minimum processing width	20mm
Maximum processing thickness	200mm
Minimum processing thickness	10mm
Minimum processing length	320mm
Planer shaft rotation	6500r/min
Feeding speed(frequency control)	7-30m/min
Upper planer shaft power	11kw
Lower planer shaft power	7.5kw
Feed motor power	2.2kw
Upper base lift motor power	0.55kw
Total power	21.25kw
Dimensions	2942*1260*1780mm
Machine weight	2700kg

 Details Images

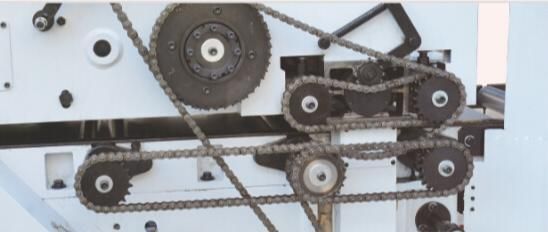

3 sets of active feeding wheels and 1 set of passive feeding system for the lower workbench,
The upper 2 sets of active feed wheels make the feeding smoother.

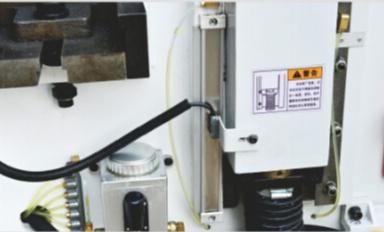

Magnetic grid sensor for thickness display, the accuracy is much higher than Proximity sensor. instructor.

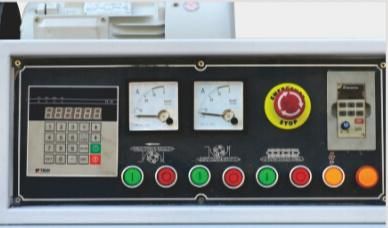

The new panel design is more intuit-ive and more beautiful, with variable frequency feeding. Speed adjustment is convenient.

Screw arbor (Heay Dty)optional
Arbor screw precision machining
Provide fine planing surfacing,and no noise
Spiral cutter shaft with detachable Luxembourg blade.

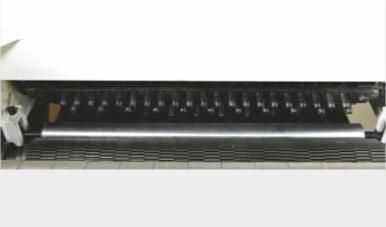

The feeding system is pinned and encrypted, and the narrow material can be used in a wider range.Our Company
