• Model NO.：PEM-1212
• Customized：Non-Customized
• Condition：New
• Color：Customized
• Engraving Range：1220×1220×120mm
• Table Size：1450×1780mm
• Z Axis Working Distance：300mm
• Weight：2200kg
• Body Layout：Cast Iron
• Max. Speed：12m,Min
• Voltage：AC220V
• Transport Package：Wooden Case
• Specification：ISO9000,CE
• Trademark：Perfect Laser
• Origin：China
• HS Code：84804100
• Production Capacity：500units,Month

Basic Info.

Model NO. PEM-1212 Customized Non-Customized Condition New Color Customized Engraving Range 1220×1220×120mm Table Size 1450×1780mm Z Axis Working Distance 300mm Weight 2200kg Body Layout Cast Iron Max. Speed 12m/Min Voltage AC220V Transport Package Wooden Case Specification ISO9000/CE Trademark Perfect Laser Origin China HS Code 84804100 Production Capacity 500units/Month

Product Description

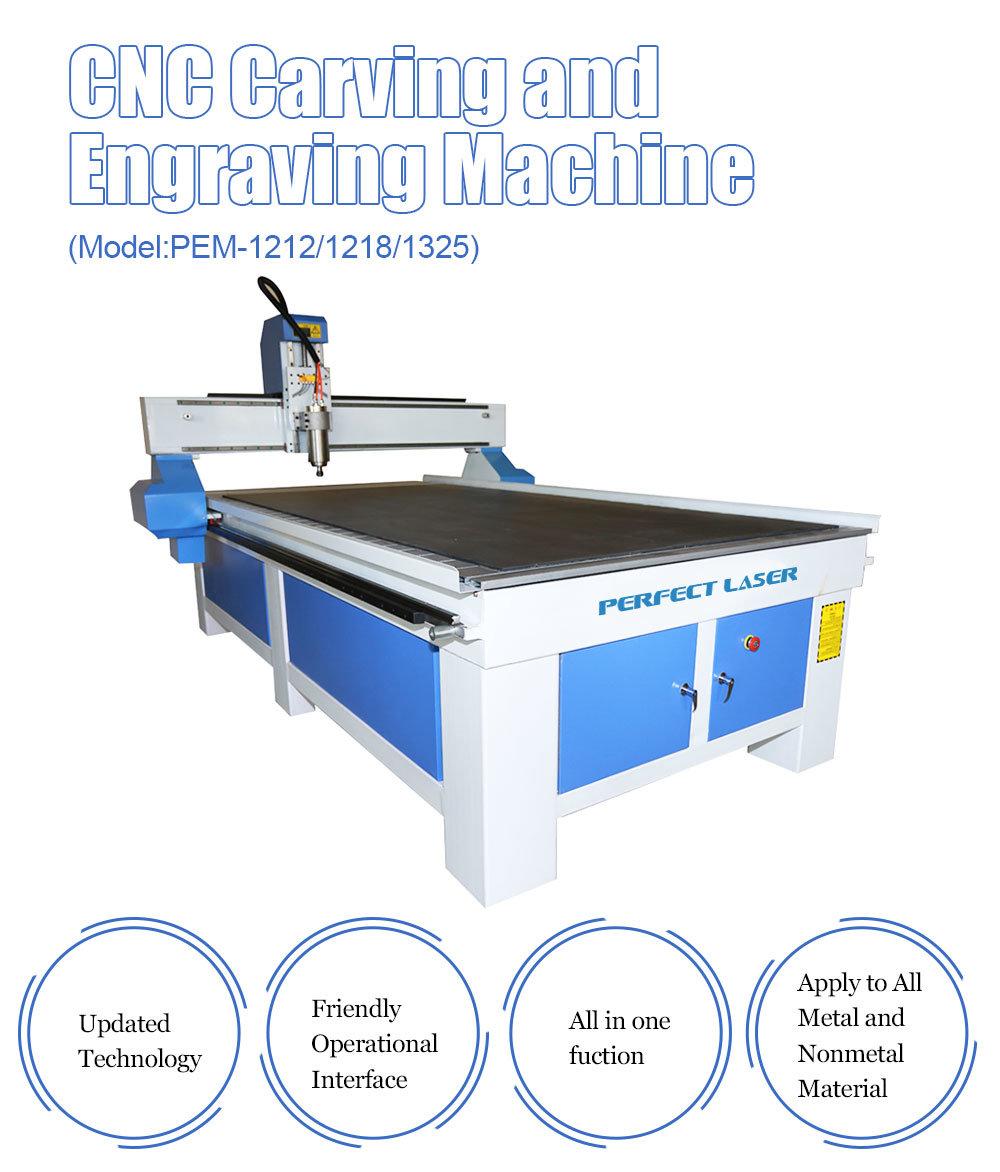

Professional china metal stone wood engraving cnc router
Model: PEM-1212
Contact:Candy

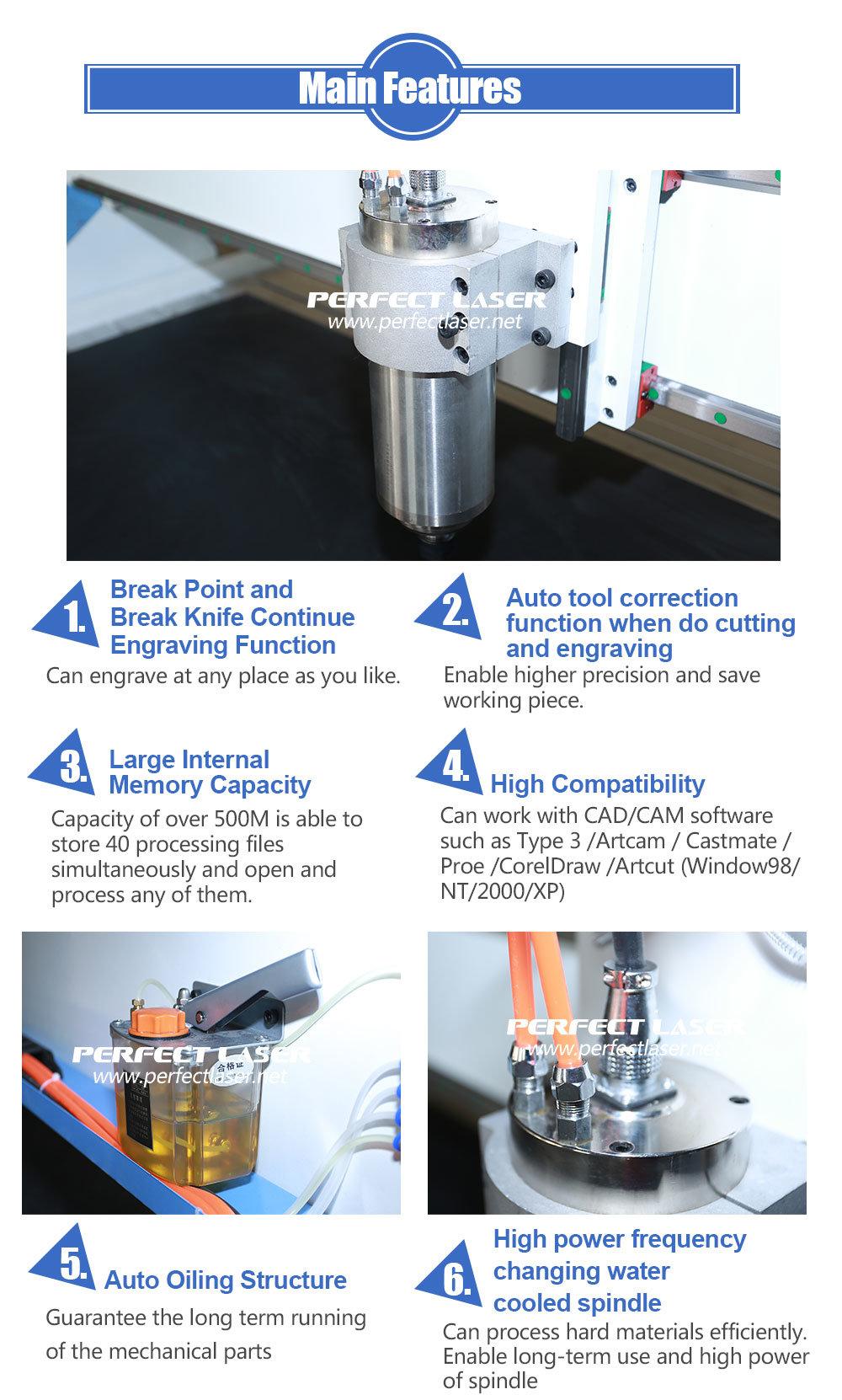

Product Features
It can be paused, adjust speed and depth at any time.And it can preview the plane and three-dimensional image of engraving path.Stepless speed regulation is so convenient that it's applicable for different materials and different industries;
It's convenient to handle break knife, which can realized reparation at any point without re publishing or returning to the origin.It's convenient to operate and easy to master.It supports Wentai, TYPE3, carving and other typesetting software.Besides, it is compatible with type3/artcam/JDPaint/proe/UG and other CAD/CAM software;
It has some special functions.For example, it can continue to engrave despite of power failure and correct the error code file at the origin in time;

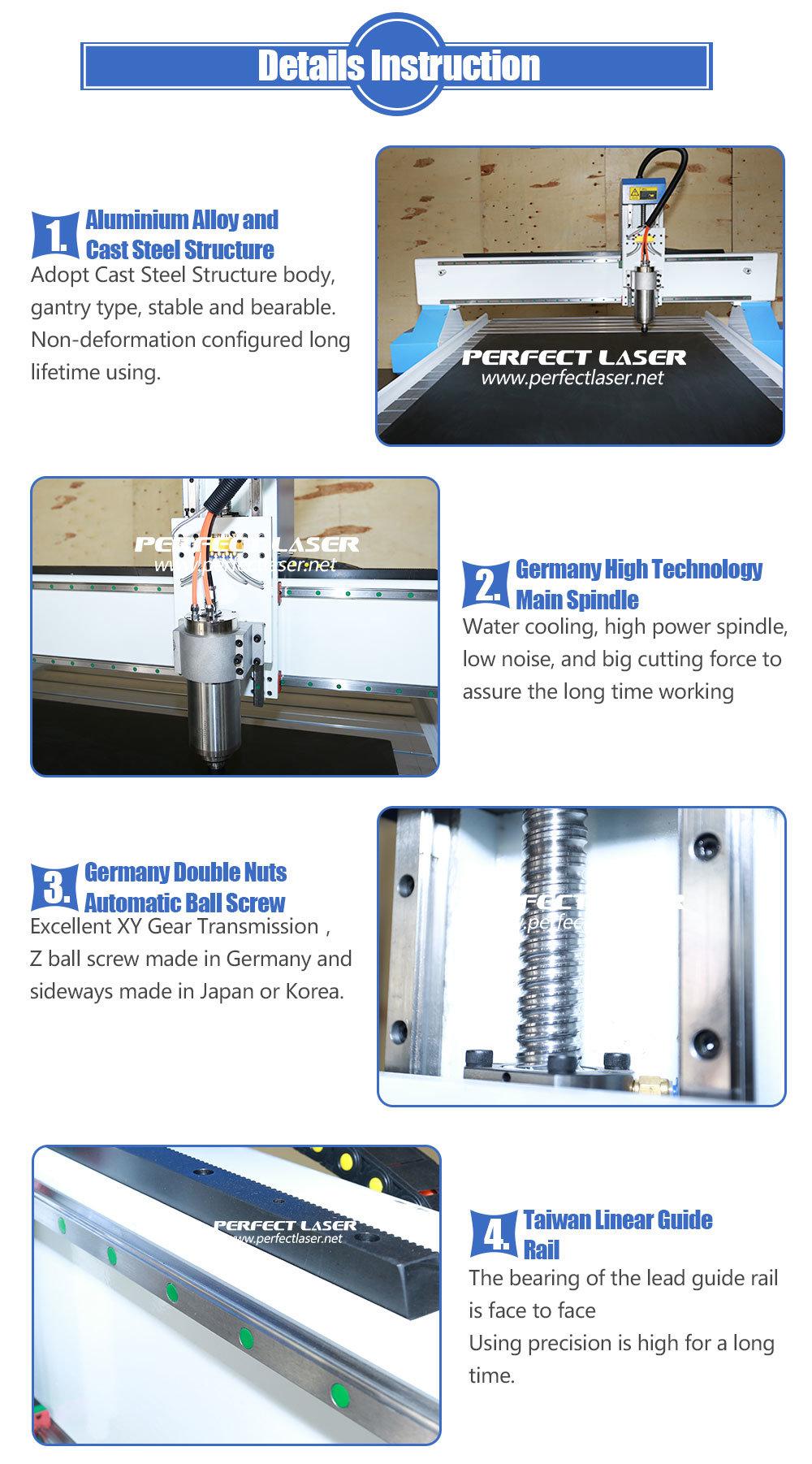

It has strong bearing capacity and isn't easy to be deformed.Imported grinding C5 double screw rod and Taiwan SP high-precision square linear guide can effectively improve the accuracy of engraving;
It use high-speed water cooling constant power / transverse torque motor which has advantages of high torque, strong cutting power, high frequency and long life.Besides, it can constantly work for a long time.




Applicable materials

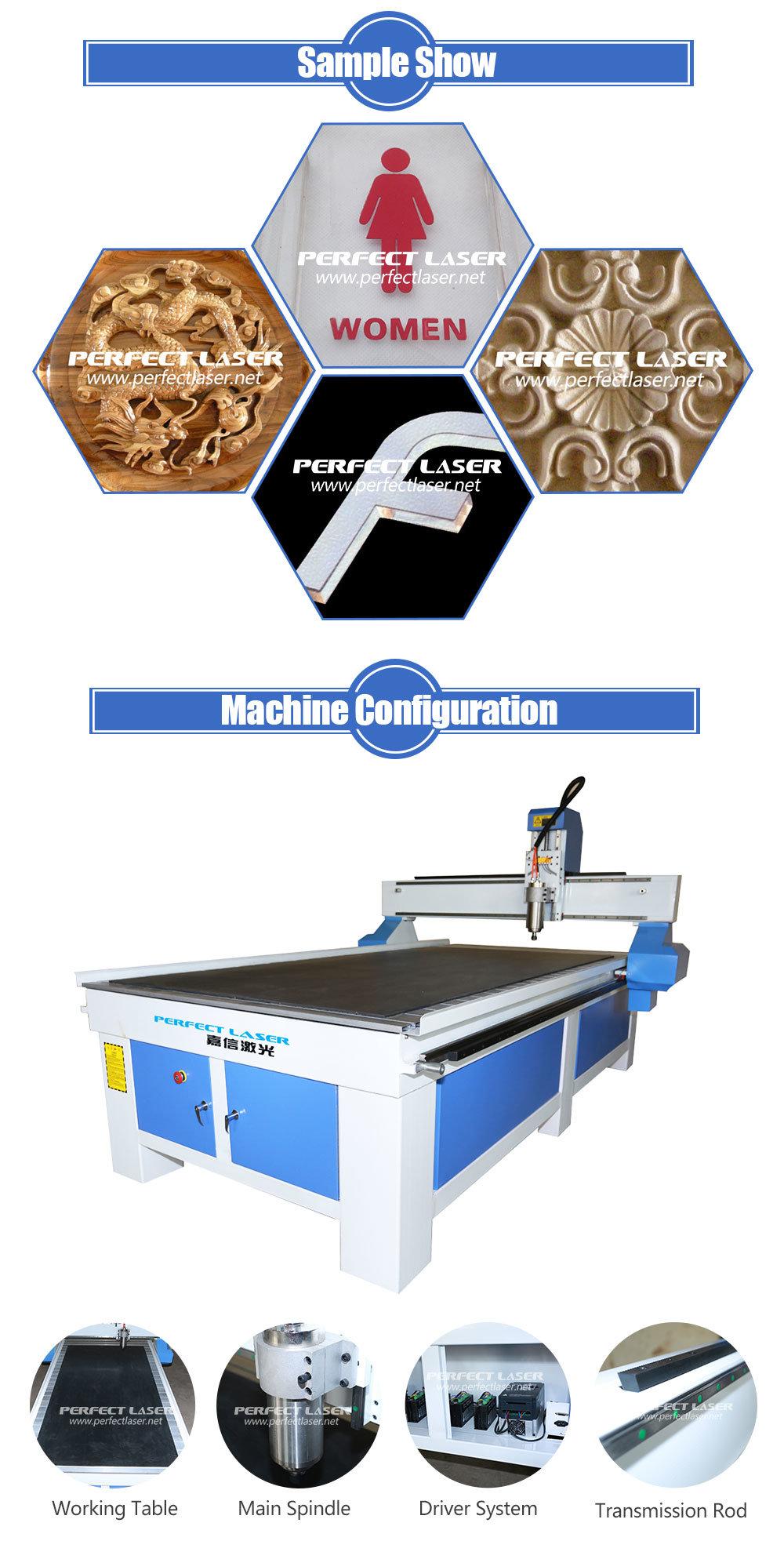

The machine is applicable to work and cut on the surface of organic glass, PVC, ABS, KT, wood, jewel, marble, aluminum plate, steel, iron, copper, aluminum, plastic and so on.



Technical Parameters

Model	PEM-1212
Power stroke of X,Y,Z axis	1220×1220×120mm
Size of working table	1450×1780mm
Power of main axle	1.5KW
Running location precision of X,Y, Z axis	+/-0.03mm
Repeating location precision of X,Y,Z axis	+/-0.01mm
Power stroke of Z axis	120mm
Working style	Stepping motor
Spindle speed of frequency conversion main axis	6000-24000rpm/min
Working voltage	AC220V/50HZ
Engraving order	G Code.Uoommg
Optional main axis and Cartridge	Φ3.175.Φ6
XY Running sensitivity	<0.02mm

After- Sale Service:

1> All of our machine will be full-checked by our quality control department before the shipment. We make sure that customers will be get good products from us. and all of our machine with a 12 months quality guarantee period.
2> We will supply brochures for simple trouble-shootings of the machine, which will help you dealing with the common problems happened to the machine. We will enclose an "Instruction Book", "Operation Manual" and "Training Video" (in English version) to you, which is easily understood and handle by the customer.
3> We will offer plenty of online supports, just like detailed technical and installation instructions by email, video, telephone and fax.
4> Our engineer can make a door-to-door instruction training service at your local site.
