Multi-Drilling Machine for European Market
Qingdao Yingsi Machinery Co., Ltd.- Structure:Deep Hole Drilling
- Controlling Mode:Artificial
- Automatic Grade:Semiautomatic
- Precision:High Precision
- Certification:CE, ISO
- Energy Saving:Energy Saving
Base Info
- Model NO.:MZB73212D
- Warranty:1 Year
- Customized:Customized
- Condition:New
- Max Drilling Depth:60mm
- Max Diameter Drill Diameter:35mm
- Installation Pitch of Drilling Head:10mm
- Spindle Speed:2840rpm
- Voltage:380V 50Hz (Optional)
- Power:1.5kw
- Working Air Pressure:0.6-0.8MPa
- Transport Package:Wooden Case
- Specification:2000x1200x1600mm
- Trademark:SK Wood
- Origin:China
- HS Code:84659500
- Production Capacity:400
Description
Basic Info.
Model NO. MZB73212D Warranty 1 Year Customized Customized Condition New Max Drilling Depth 60mm Max Diameter Drill Diameter 35mm Installation Pitch of Drilling Head 10mm Spindle Speed 2840rpm Voltage 380V 50Hz (Optional) Power 1.5kw Working Air Pressure 0.6-0.8MPa Transport Package Wooden Case Specification 2000x1200x1600mm Trademark SK Wood Origin China HS Code 84659500 Production Capacity 400Product Description
Woodworking Drilling MachineWoodworking drilling machine is common drilling equipment in board type furniture.Under many hole positions and holes, it ensures to finish at one time by adjusting distance of each drilling arrangement or transforming the vertical drilling arrangement position.
This machine usually suitable for drilling all kinds of density board and particie board, manmade board, PVC board, perspex sheet and solid wood board.

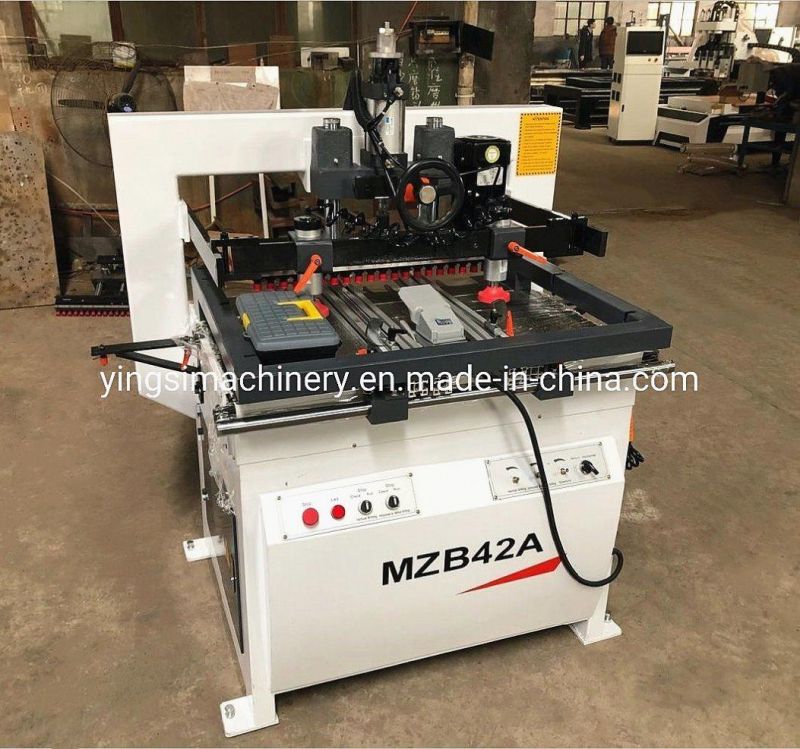

Product Show
Features
1,The drilling drilling range is large, all the drill bits use quick connectors, which is convenient and quick.
2,The depth of the drilling brick hole, the drilling distance are all photoelectric photoelectric switch, the positioning is fast and accurate.
3,The use of imported original brand drill, linear guides, sliders, durable.
4,Drilling machine parts, using high-quality steel, high temperature annealing (eliminating internal stress) treatment will never deform.
Technical Parameter
Max drilling depth | 60mm |
Max drilling diameter | 35mm |
Installation pitch of drilling head | 10mm |
Number of drilling shafts | 21 * 1 |
Rotating speed of boring spindles | 2840rpm |
Height of worktable | 900mm |
Boring power | 1.5kw*1 |
Voltage | 380V 50Hz (Optional) |
Working pressure | 0.6-0.8Mpa |
Dimension | 2000x1200x1600mm |

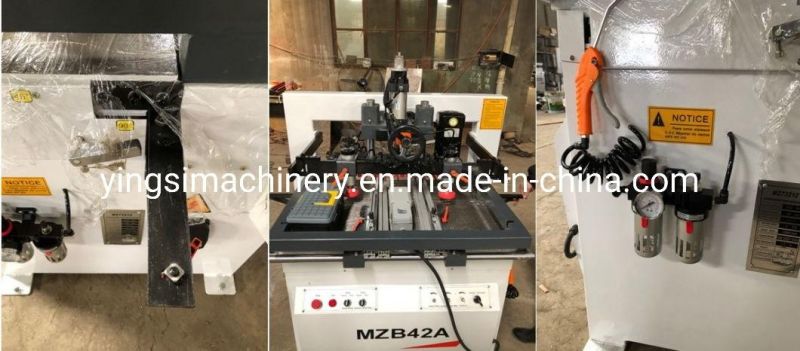

Machine Details
Packing Details
