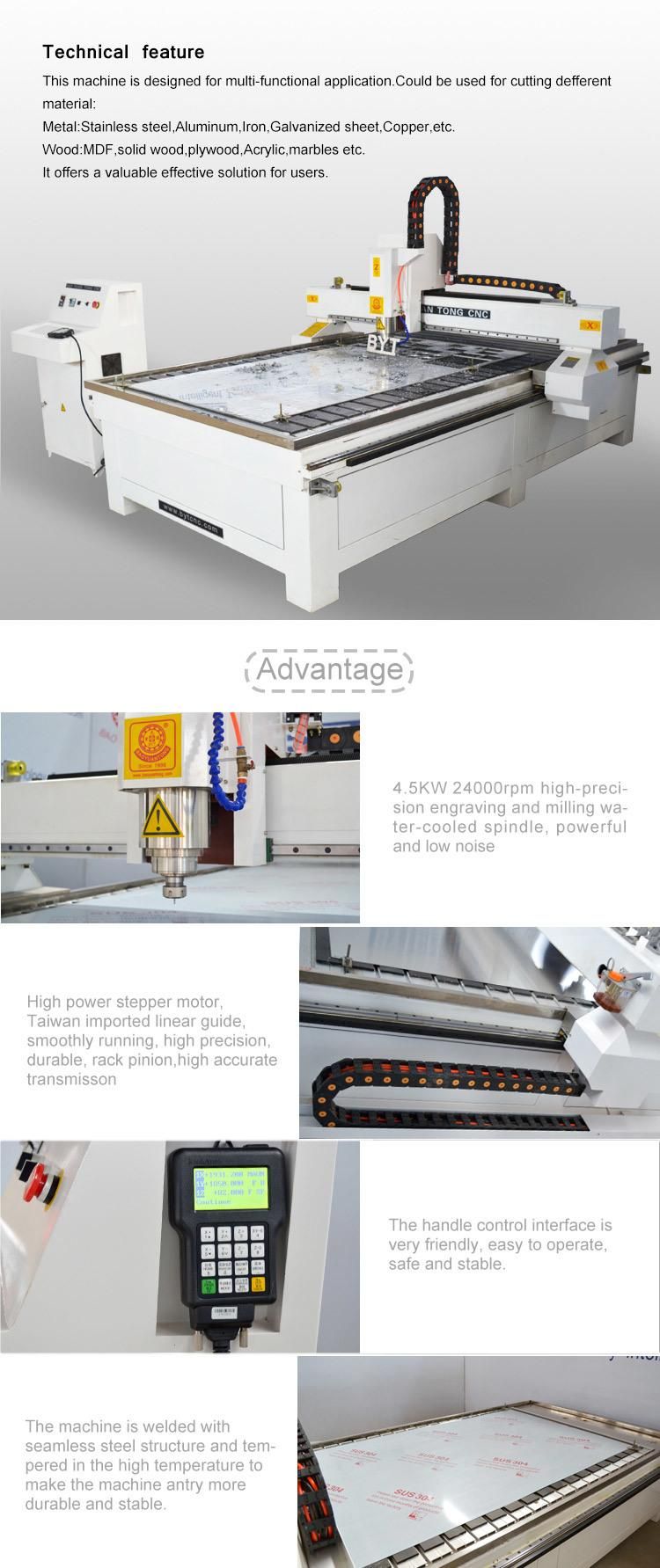

1325 Multifunction Metal and Non Metal Cutting CNC Router

Shandong Yuantong Century Intelligent Technology Co., Ltd.

Type：Engraving Router
Spindle Layout：Vertical
Spindle Number：Single-Spindle
Feed Mode：Manual
Controlling Mode：CNC
Certification：CE, ISO, FDA

Base Info

Model NO.：BMG-1325M
Customized：Customized
Condition：New
Color：Customized
Name：Metal Cutting CNC Router Machine for Stainless St
X,Y ,Z Working Area：1300*2500*100mm
Working Table：T-Slot PVC Table (with Water Tank)
Max. Speed：0-24000r,Min
Motor：Step Motor
Resolution：0.02mm
Command：G Code,Uoo File,Plt File
Spindle Motor：45000W Water Cooled Spindle (Option)
Operating System：DSP Offline System
Compatible Software：Type3, Artcam, Ucancam, Artgrave etc.
Structure：Heavy-Duty Cast Steel Body
Working Voltage：380V50Hz3p
Weight：1050kgs
Dimension(L*W*H)：3200*2250*1730mm
Transport Package：PE Film Package or Plywood with Steel Tube Case
Specification：CE
Trademark：BaoYuanTong
Origin：Weifang City Shandong Province China
HS Code：8457103000
Production Capacity：80sets,Month

Description

Basic Info.

Model NO. BMG-1325M Customized Customized Condition New Color Customized Name Metal Cutting CNC Router Machine for Stainless St X,Y ,Z Working Area 1300*2500*100mm Working Table T-Slot PVC Table (with Water Tank) Max. Speed 0-24000r/Min Motor Step Motor Resolution 0.02mm Command G Code,Uoo File,Plt File Spindle Motor 45000W Water Cooled Spindle (Option) Operating System DSP Offline System Compatible Software Type3, Artcam, Ucancam, Artgrave etc. Structure Heavy-Duty Cast Steel Body Working Voltage 380V50Hz3p Weight 1050kgs Dimension(L*W*H) 3200*2250*1730mm Transport Package PE Film Package or Plywood with Steel Tube Case Specification CE Trademark BaoYuanTong Origin Weifang City Shandong Province China HS Code 8457103000 Production Capacity 80sets/Month
