• Model NO.：MJ6132BD
• Certification：CE, ISO, SGS
• Customized：Customized
• Condition：New
• Color：Customized
• Main Saw Power：5.5kw
• Scoring Saw Power：1.1kw
• Transport Package：Wooden Case
• Specification：3200mm
• Trademark：OSETMAC
• Origin：China
• HS Code：8465910000
• Production Capacity：3000 Sets,Year

Basic Info.

Model NO. MJ6132BD Certification CE, ISO, SGS Customized Customized Condition New Color Customized Main Saw Power 5.5kw Scoring Saw Power 1.1kw Transport Package Wooden Case Specification 3200mm Trademark OSETMAC Origin China HS Code 8465910000 Production Capacity 3000 Sets/Year

Product Description

Sliding Table Saw MJ6132BD for Wood Cutting

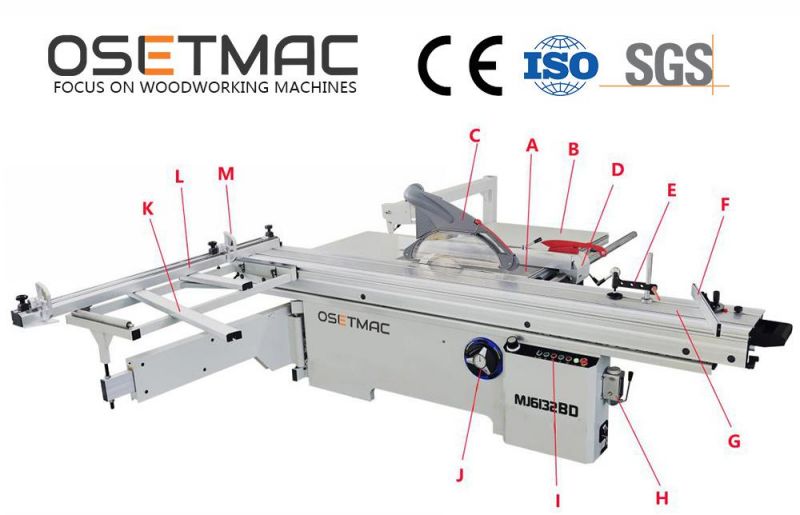

A	Main Table	Main working table
B	Extension Table	Extension working table
C	Dust Guard	Not only reduce dust produced by chips while cutting, but also warning the operator where the saw-blade position.
D	Rip Fence	Reference positioning while ripping
E	Hand Swage	To press the workpiece on the sliding table
F	Miter Fence	Reference positioning while 0-45° cutting
G	Sliding Table	Table for main feeding while cutting
H	Oiler	To oil for the inner structure
I	Controlling Panel	Control the machines running,indication, stop,lifting etc.
J	Hand Wheel for Mail Saw Tilting	To adjust main saw tilting 0-45°
K	Cross Cut Table	Used to put the workpiece while cross cutting
L	Cross Cut Fence	To position the size of the movable positioning board
M	Movable Positioning Stops	To position while cross cutting

SlidingTable Saw Specification

Sliding Table Dimension	3200*380mm
Cast Iron Table Dimension	910*620*80mm
length extension table	905*680*70mm
width cutting extension table	640*680*70mm
Main Saw Diameter	300mm
Main Saw Blade Diameter Maximum	350mm
Main Saw Bore Diameter	30mm
Max. Cutting Height With Bade at 90	80/100mm(φ300/350)
Max. Cutting Height With Bade at 45	50/70mm(φ300/350)
Main Motor Power	5.5KW
Main Blade Speed	4000/6000RPM
Scorning Saw Blade Diameter	120mm
Scorning Saw Bore Diameter	20mm
Scorning Saw Motor Power	1.1KW
Scorning Blade Speed	8000RPM
Max. Cutting Width	1250mm
Max. Cutting Length	3100mm
Blade Tilting Adjustment	0-45°
Main Saw Height Adjustment	Electric
Scorning Saw Height Adjustment	Manual
Dust Guard Outlet Diameter	80mm
Dust System Outlet Diameter	100mm
Wood Packing Dimension Main Crate and Sliding table	2250*1200*1100mm 3400*450*290mm
Dimension	3250*3450*900mm
Weight	800KG


Sliding Table Saw MJ6132BD Details Show

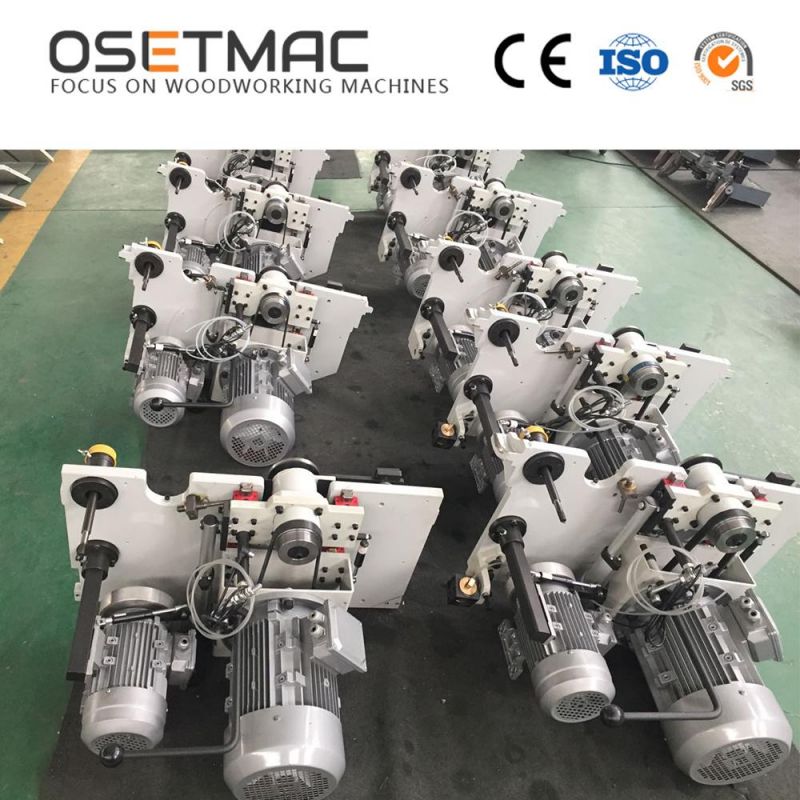

Inner Structure
This sliding table saw uses linear guideway to lift the saw blade which is more smooth and more durable.Aluminum shell motor makes sure its good heat dissipation.25mm metal plate guarantees the compress strength and the high precision of the inter-machine, which can also reduce the shock of the machine.

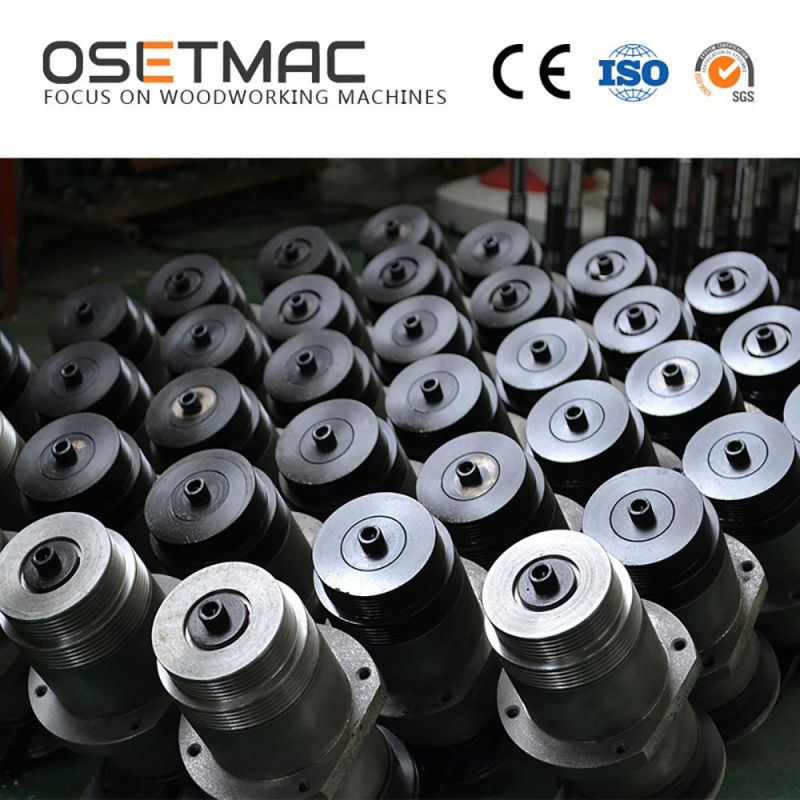

Main Saw and Scorning Saw Spindle
After the heating processing and dynamic balancing treatment, our saw spindle will never deformation.With high quality belt and motor, our sliding table saw has lower noise, higher precision and higher efficiency of power transmission.

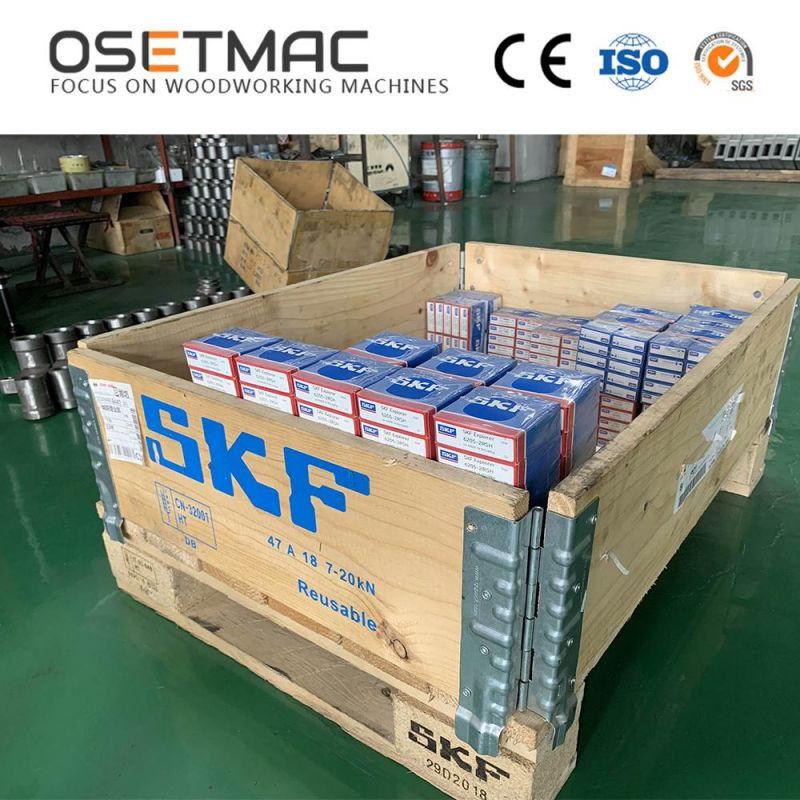

SKF Bearing
All bearings in this sliding table saw are all imported SKF brand, which has lower sliding resistance and power consumption comparing with ordinary bearings.

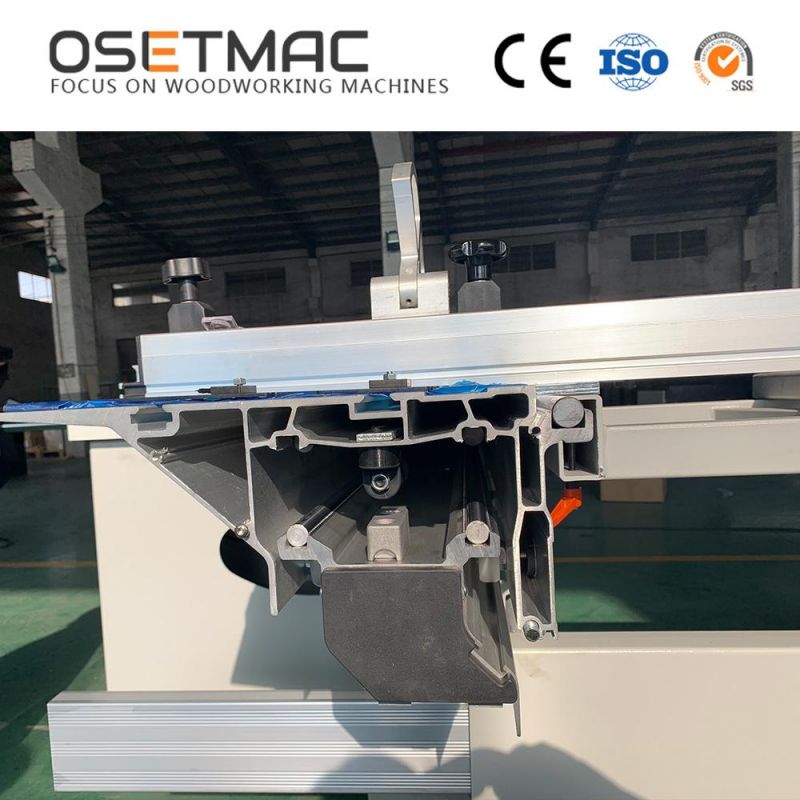

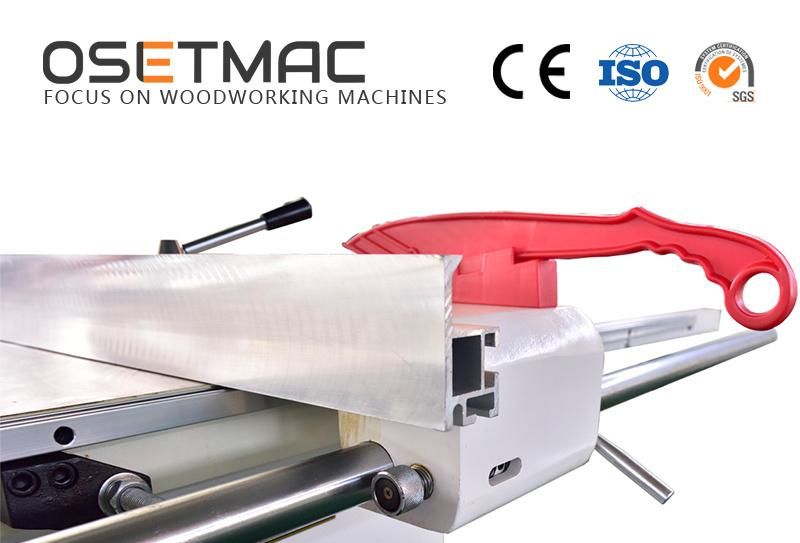

 Sliding Table Structure and Feature
Our sliding table supplier is the same as SCM. The table is made of fully-extruded, anodized aluminum that will stay square and true over many years of use. The  guideway of movable table is steel bar structure. After quenching and chromizing, our table is more smooth and less resistance. The comb lock on the table makes it convenient to stop anywhere.

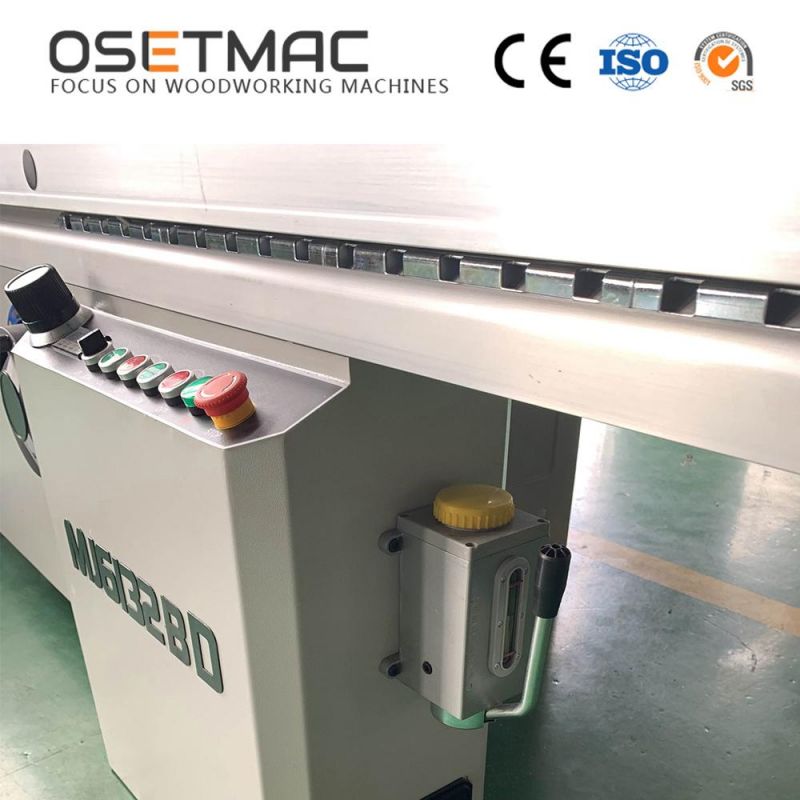

Controlling Board
The main saw blade lifting is electric control which makes it easy to operate. The rotation of  hand wheel for saw blade tilting is very light and handy.



8. Rip Fence Fine Adjustment
Fine adjustment range is between 0-10mm, which makes the saw cutting size more precise. It is also very easily to adjust.

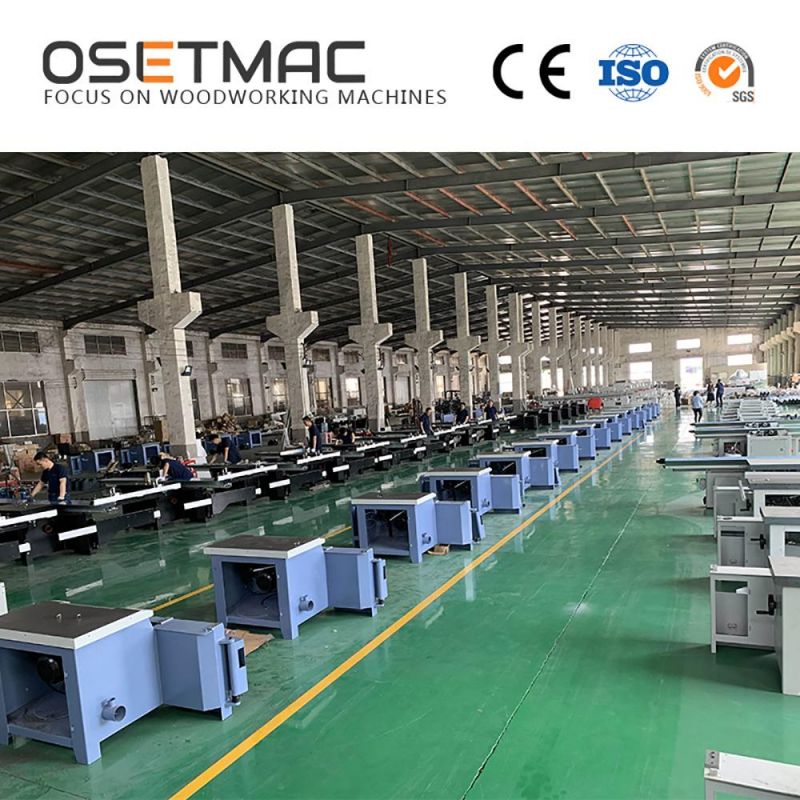

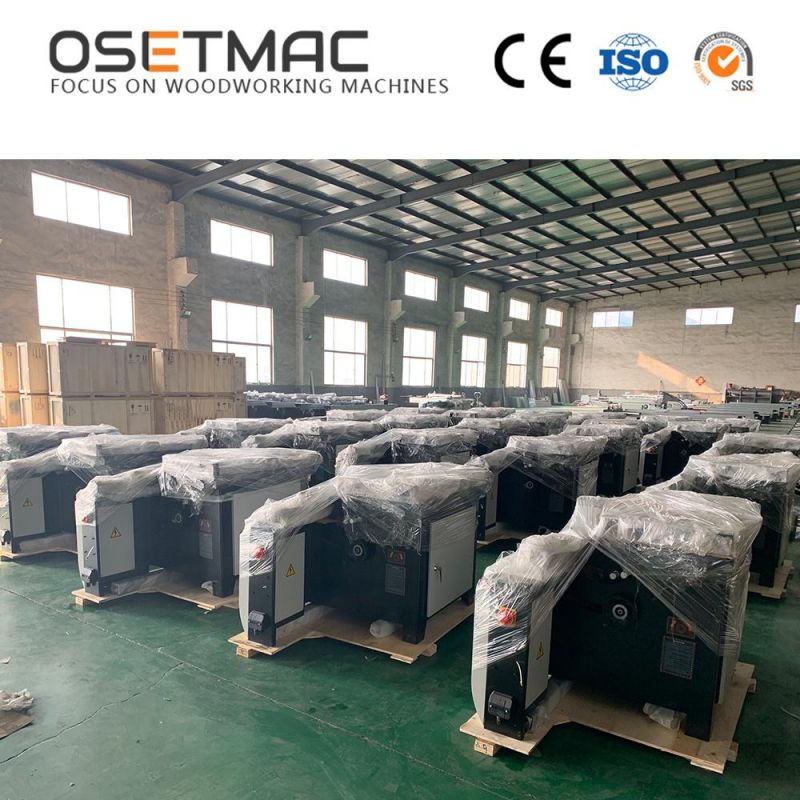

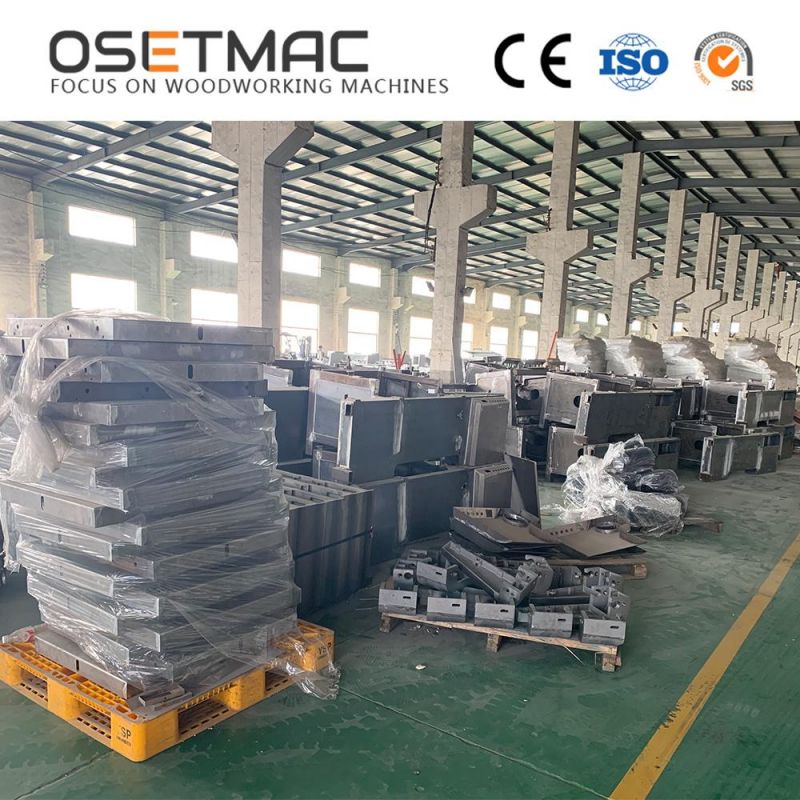

Sliding Table Saw Production Line
