World Popular 1212 1325 1530 2030 2040 CNC Machine Router 3D CNC Router Machine for Aluminum
SHANDONG IGOLDEN CNC TECHNOLOGY CO., LTD.- Condition：New
- Certification：ISO, CE
- CNC or Not：CNC
- Voltage：380V
- Transport Package：Wooden Case
- Specification：1212
Base Info
- Model NO.：IGW-1212
- Trademark：IGOLDENCNC
- Origin：China
- HS Code：84659900
- Production Capacity：2000 Per Year
Description
NO.
Model
IG-1212
1
Working area
1200x1200x200mm
2

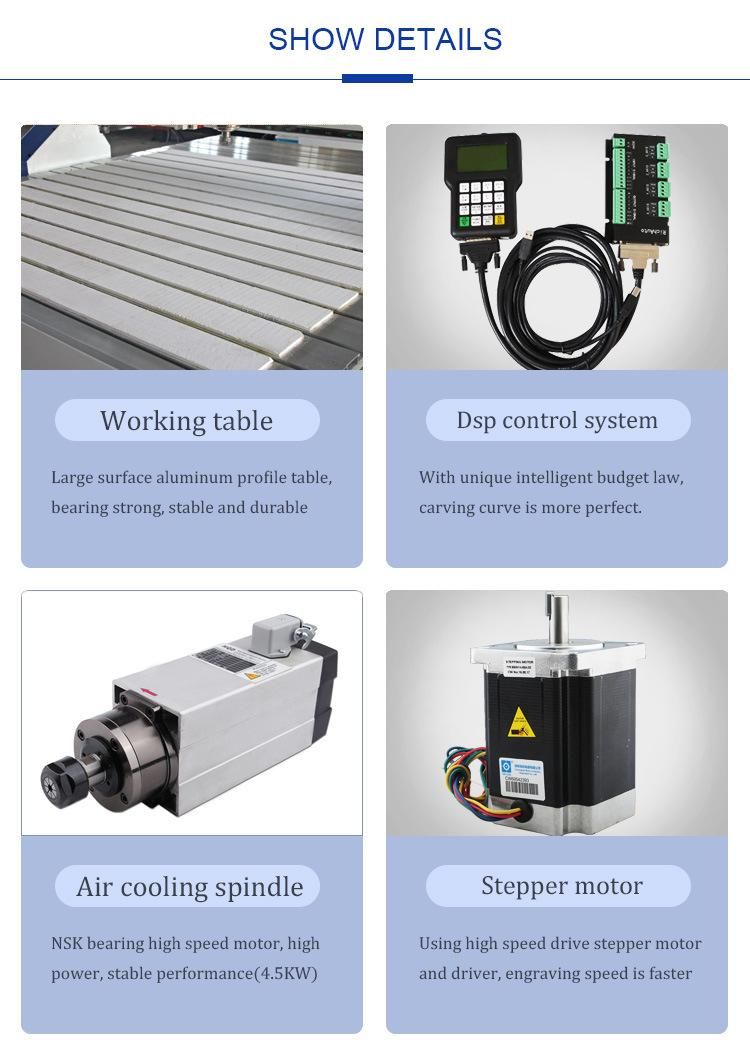

Working table
Vacuum absorb table with T-slot or Aluminum table
3
Spindle
3kw/4.5kw/5.5kw/6kw air cooling spindle
4
Cooling system
Air cooling
5
Control system
DSP or NC Studio
6
Inverter
Fuling inverter
7
Transmission
XY-axis Rack gear,Z-axis ball screw
8
Guide rail
Square HIWIN guide rail from Taiwai
9
Ball screw
Taiwan TBI ball screw
10
Drive system
Servo motor and driver
11
Machine body
Square tube welding body
12
Limit Switch
Japan Omron
13
Electrical components
France Schneider
14
Traveling speed
30m/min
15
Working speed
20m/min
16
Control software
Artcam/Type3,other CAD/CAM
17
Command code
G Code*.u00*.mmg*.plt
18
Voltage
AC220V/380V-50HZ/60HZ
