Wood CNC Router Wood Carving Machine for Sale Woodworking Machines From China
SHANDONG IGOLDEN CNC TECHNOLOGY CO., LTD.- Condition：New
- Certification：ISO, CE, SGS
- CNC or Not：CNC
- Voltage：220V
- Name：1325 Wood CNC
- Application：Wood,Acrylic,MDF Board
Base Info
- Model NO.：1325 Wood CNC
- Working Size：1300*2500*200mm

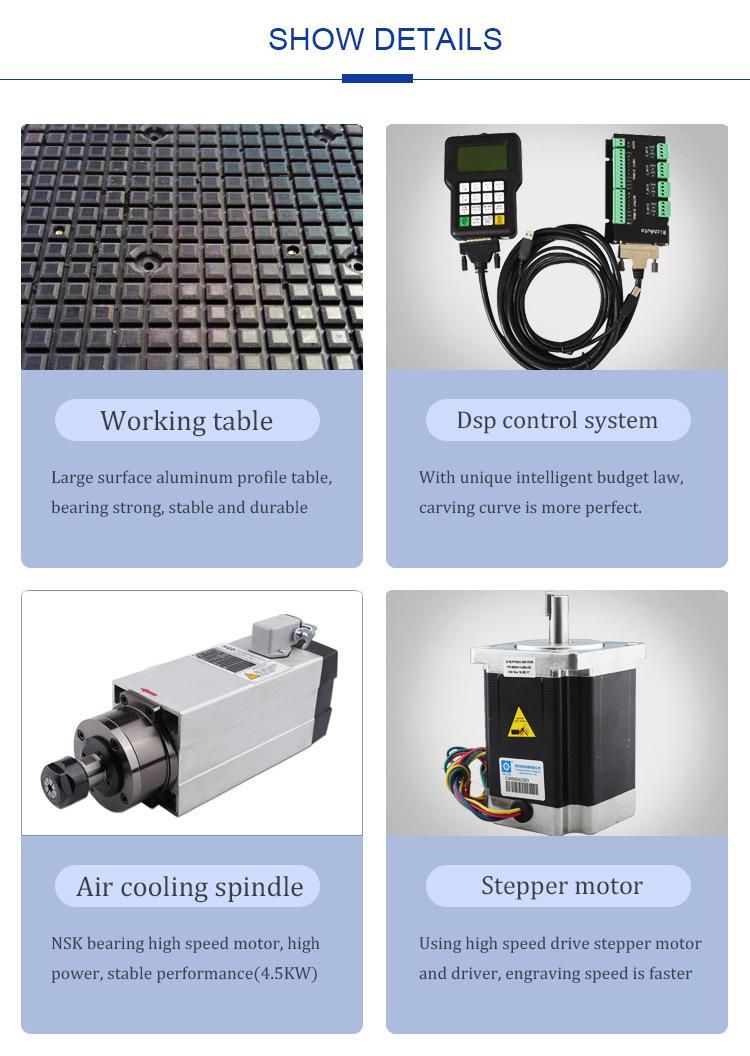

- Working Table：Vacuum,Aluminum Table
- Spindle：Air Cooling
- Motor：Stepper
- Control System：Nc Studio,DSP
- Service：OEM,ODM
- Warranty：1 Year
- Transport Package：Standard Export Package for 1325 Wood Router
- Specification：1300*2500mm
- Trademark：iGoldencnc
- Origin：China
- HS Code：84659900
Description
NO.
Model
IGW-1325
1
Working area
1300x2500x200mm
2
Working table
Vacuum absorb table with T-slot or Aluminum table
3
Spindle
3kw/4.5kw/5.5kw/6kw air cooling spindle
4
Cooling system
Air cooling
5
Control system
DSP or NC Studio
6
Inverter
Fuling inverter
7
Transmission
XY-axis Rack gear,Z-axis ball screw
8
Guide rail
Square HIWIN guide rail from Taiwai
9
Ball screw
Taiwan TBI ball screw
10
Drive system
Servo motor and driver
11
Machine body
Square tube welding body
12
Limit Switch
Japan Omron
13
Electrical components
France Schneider
14
Traveling speed
30m/min
15
Working speed
20m/min
16
Control software
Artcam/Type3,other CAD/CAM
17
Command code
G Code*.u00*.mmg*.plt
18
Voltage
AC220V/380V-50HZ/60HZ
More machine information welcome contact us online now!
