• Model NO.：ZD500
• Panel Thinkness：10-60mm
• Min.length panel：120mm
• Min.width panel：50mm
• Manufacturing Principles：Glue Tank Underneath
• Customized：Customized
• Transport Package：Plywood Case
• Specification：3600*900*1500mm
• Trademark：ZD
• Origin：China
• HS Code：84659400
• Production Capacity：2 Sets,Week

Basic Info.

Model NO. ZD500 Panel Thinkness 10-60mm Min.length panel 120mm Min.width panel 50mm Manufacturing Principles Glue Tank Underneath Customized Customized Transport Package Plywood Case Specification 3600*900*1500mm Trademark ZD Origin China HS Code 84659400 Production Capacity 2 Sets/Week

Product Description

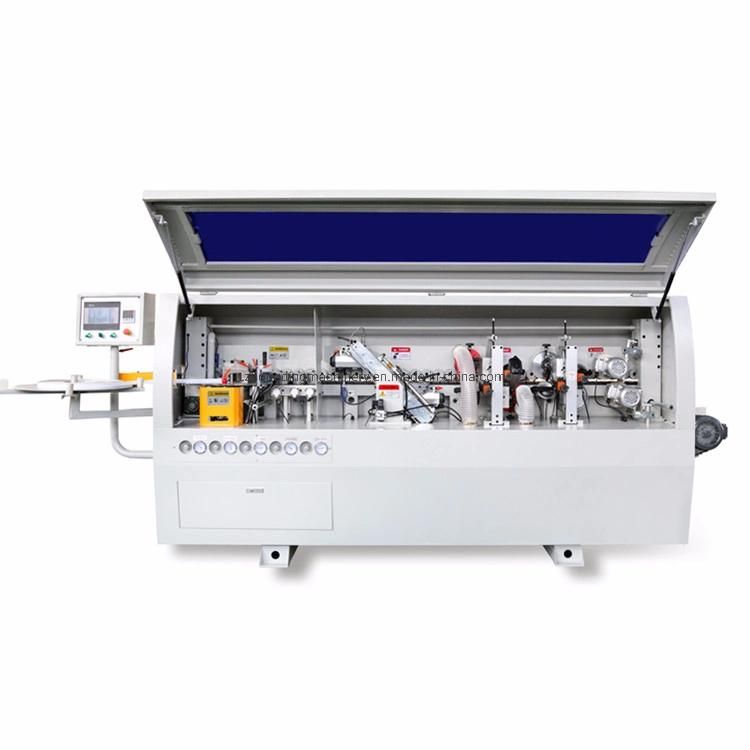

5 Functions Edge Banding Machine for Hot Glue mdf Board




Technical Specifications:

Functions: Gluing, edge banding, end trimming, fine trimming, scraping, buffing.


Model	ZD500
Banding tape thickness	0.4-3mm
Banding tape width	10-60mm
Workpiece thickness	10-60mm
Workpiece length	>=100mm
Workpiece width	>=50mm
Heating power	1.5kw
Feeding motor power	2.2kw
Glue spreading motor power	0.37kw
End trimming motor power	0.55kw*2
Fine trimming motor power	0.75kw*2
Polishing motor power	0.18kw*2
Feeding speed	13m/min
Air pressure	0.7Mpa
Overall dimension	3600*900*1500mm
Packing size	3700*1000*1600mm
Net. weight	1300kg
Gross weight	1470kg

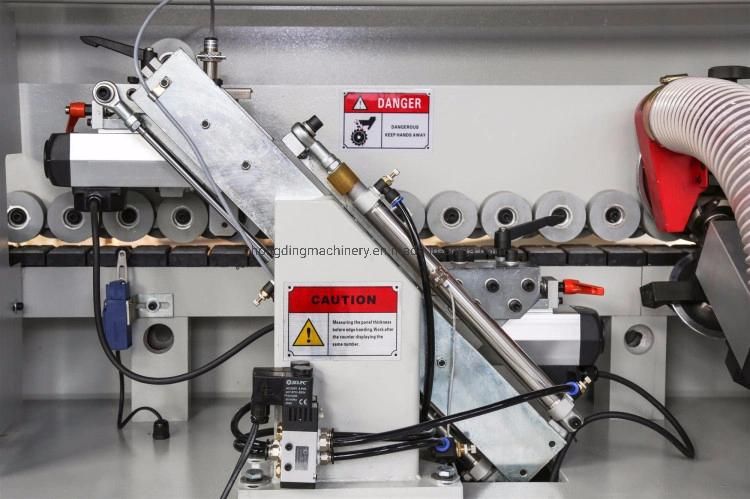

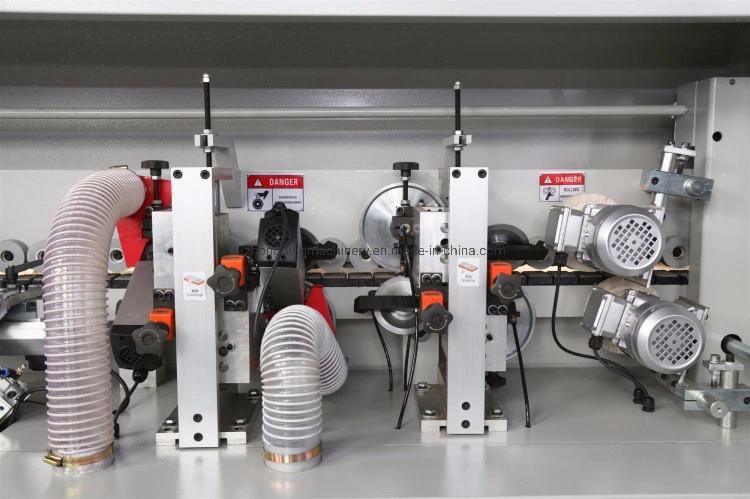

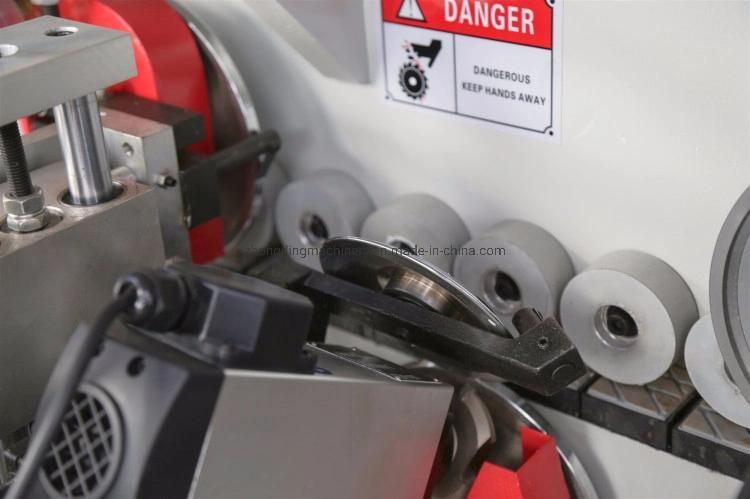

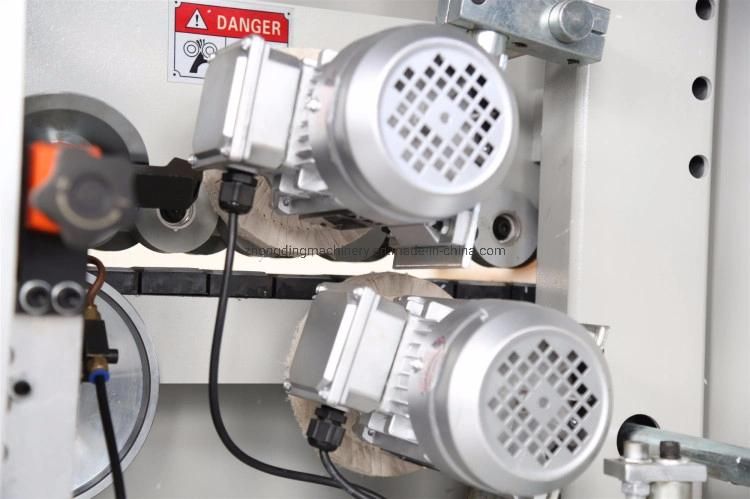

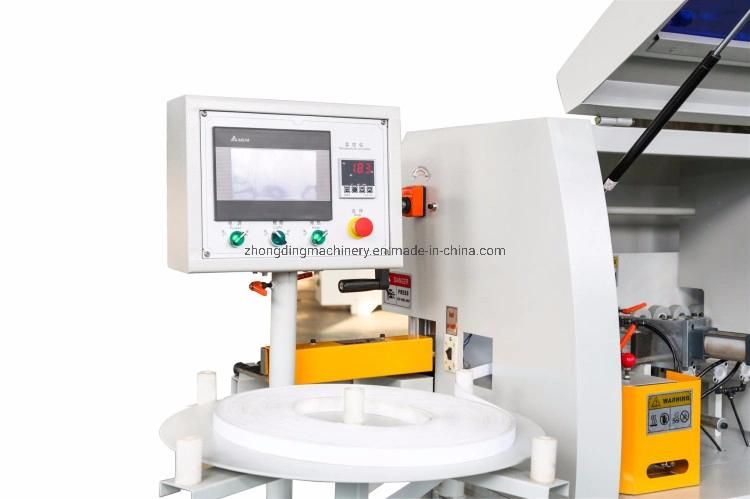

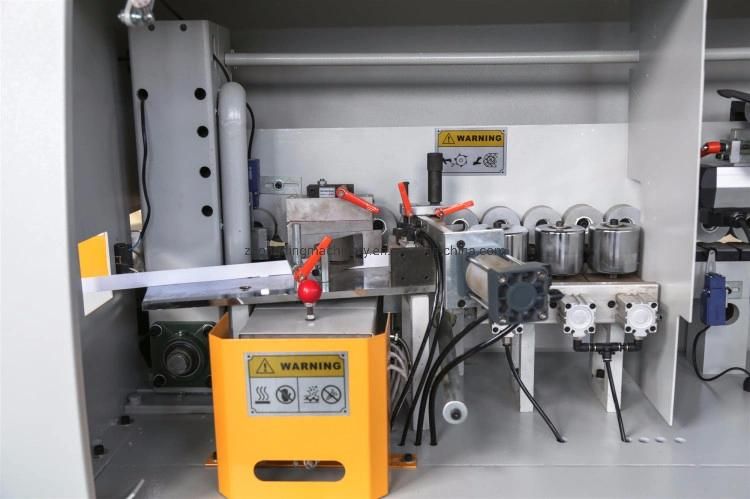

Detailed pictures:

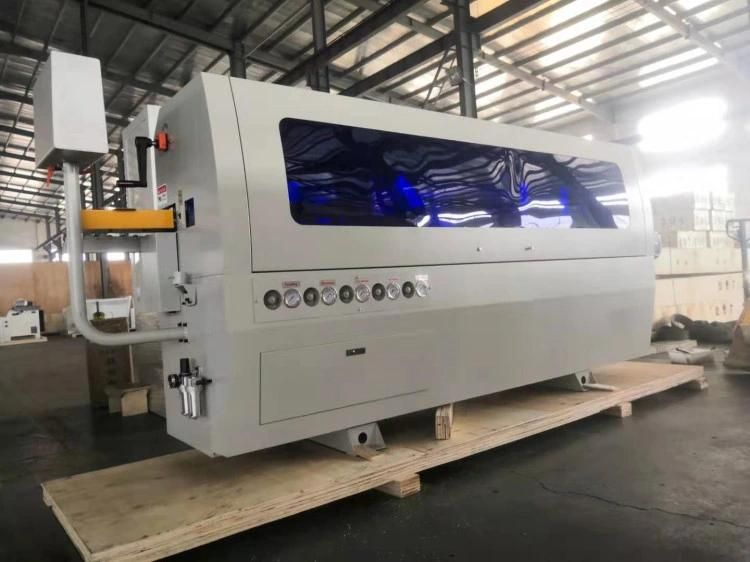

Packaging & shipping:






About us:


 Qingdao Zhongding Machinery Co., Ltd is a leading company of specializing in manufacturing and exporting woodworking machine, and we are able to offer professional woodworking machine to customers. Our company has professional technology, full range of testing lines and pipelining, CNC processing center, Laser cutting equipment, etc.

    Our products are mainly included Precise panel saw, Edge Banding Machine, Multiple Drilling Machine, Cold Press etc., which have been exported to lots of countries and regions, such as Europe, Russia, Southeast Asia, Middle East, North America, Australia. At the same time, our company has got ISO9001 international system certificate and CE security certificate.
    Qingdao Zhongding Machinery is looking forward to establish long-term strategic cooperation relationship with you and offer you high quality products and perfect service system.

FAQ:

1. The MOQ is 1 set.
2. The delivery time is 15-20 days after deposit.
3. The voltage can be customized.
4. OEM service is available as we are factory.
5. CE and ISO certification available.
6. Factory address: Wangtai twon, Jiaonan city, Qingdao, China. Welcome to visit us!



For more details, pls feel free to contact us.
