• Model NO.：RSJ3515TA
• Automatic Grade：Automatic
• Transport Package：Standard Packing
• Trademark：SAMACH
• Origin：China
• HS Code：99
• Production Capacity：100sets,Month

Basic Info.

Model NO. RSJ3515TA Automatic Grade Automatic Transport Package Standard Packing Trademark SAMACH Origin China HS Code 99 Production Capacity 100sets/Month

Product Description

Solidwood Board Cutting Finger joint shaper, RSJ3515TA

OEM and ODM are available.

Design of Whole factory is available. Professional Team of Strong Supports.

Full supports to partners is prompt. World-level Techniques Guarantee.


The feeding table guide adopts the precision linear guide imported from Japan, which ensures the
 precision of the opening.

The sawing part adopts a combination of a double saw shaft and a pulverizing knife to improve the
quality of the opening.

The worktable advances and retreats adopts a rack and pinion travel mechanism, which is stable
 and fast, easy to maintain, and consumes less power.

Specifications of RSJ3515A


Model	RSJ3515A
Workbench size(LXW)	760X850MM
Maximum mach	150MM
Max.width	600MM
Diameter of main saw shaft	Φ30MM
Diameter of cutting tenon and mortise shaft	Φ70MM
Rotating speed of main saw shaft	2840RPM
Rotating speed of cutting tenon and mortise	6000RPM
Rated power of motor for cutting tenon and mortise	11KW
Rated power of motor for main saw shaft	4KW
Rated power motor for marking out saw	0.75KW
Total power	15.75KW
Overall dimensions	2400X1730X1550MM
Net weight	1800KG

Specifications of RSJ3515TA

The feeding table guide adopts the precision linear guide imported from Japan, which ensures the
precision of the opening.

The sawing part adopts a combination of a double saw shaft and a pulverizing knife to improve the
quality of the opening.

The worktable advances and retreats are controlled by the gas-liquid conversion system imported
from Germany, which is stable and fast, easy to maintain and consumes less power.

The tooth-shaped anastomosis spray system is used to achieve uniform spray glue, achieving the
effect of saving glue.


Model	RSJ3515TA
Workbench size(LXW)	760X850MM
Maximum mach	150MM
Max.width	600MM
Diameter of main saw shaft	Φ30MM
Diameter of cutting tenon and mortise shaft	Φ70MM
Rotating speed of main saw shaft	2840RPM
Rotating speed of cutting tenon and mortise	6000RPM
Rated power of motor for cutting tenon and mortise	11KW
Rated power of motor for main saw shaft	4KW
Rated power motor for marking out saw	2*0.75KW
Total power	16.5KW
Overall dimensions	2700X1730X1550MM
Net weight	2000KG

Packing and Delivery

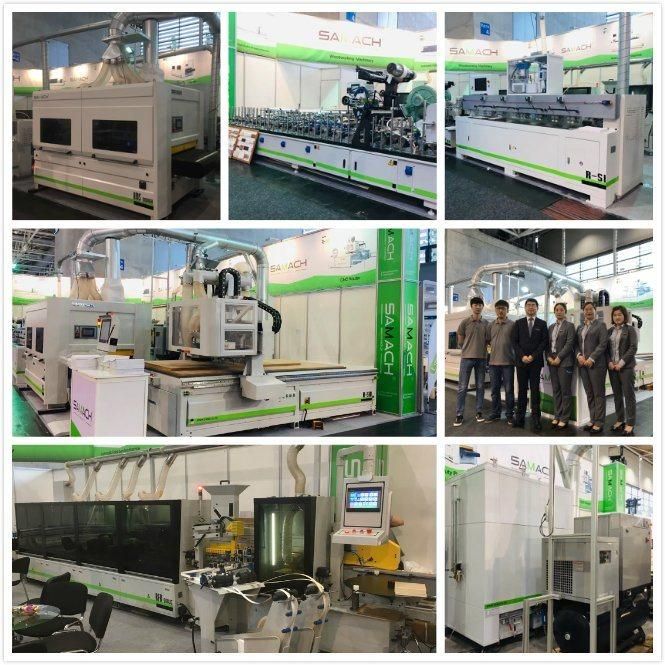

LIGNA EXHIBITION IN GERMAN, WORLD-TOP LEVEL EXHIBITION


Samach'S Services and dominant:

1: Professional team of techniques study and research, guarantee the Machine latest and
improving efficiency.

2.Knowing China and world markets well, offer professional soluttions.

3.Fast market reaction,  guarantee our partners always in front edge.

4.Supeiror Guarantees,quality of our machine and sell-after service.

5.OEM/ODM are available.

6.Principle: One cooperation, forever partner.

Contact us and Enjoy our Happy Coopperation Together.  Thank you for your time!
