• Model NO.：ZS2512R
• Control System：Nc Studio, DSP
• Body Structure：Thick Steel Tube Welded, W, Tempering
• Transport Package：Plywood Case Package
• Specification：3000KG
• Trademark：Mars
• Origin：China
• HS Code：8458110090
• Production Capacity：300,Month

Basic Info.

Model NO. ZS2512R Control System Nc Studio/ DSP Body Structure Thick Steel Tube Welded, W/ Tempering Transport Package Plywood Case Package Specification 3000KG Trademark Mars Origin China HS Code 8458110090 Production Capacity 300/Month

Product Description

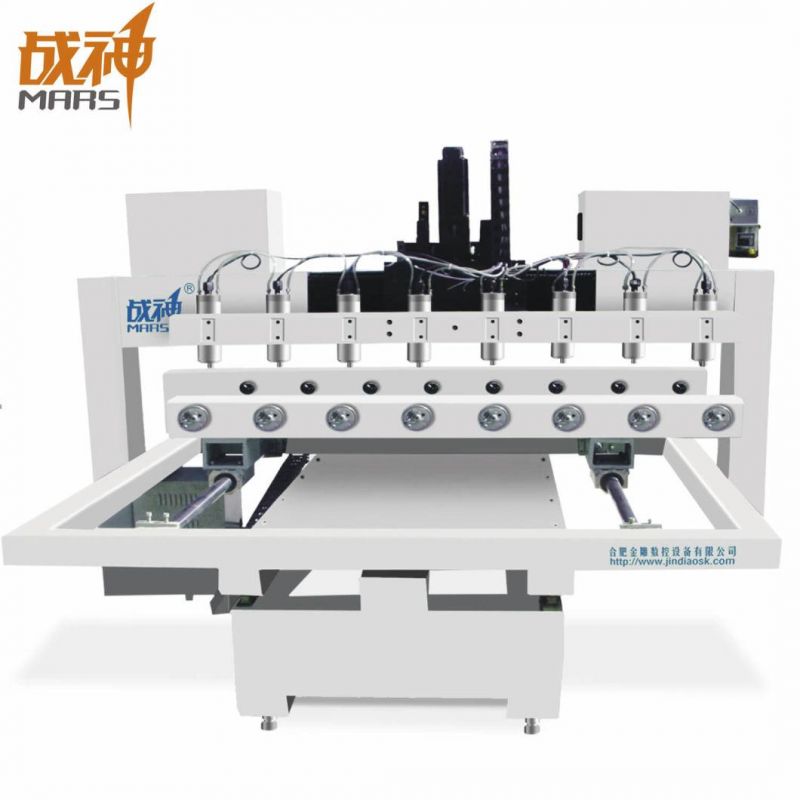

ZS2512R Fours Axis Rotary Wood CNC Router
Keywords:15 years experience of production
                   ISO9001:2008, CE, SGS, AAA Level Enterprise which Honors Contract
                   Three Brand: Mars, Boiro, Golden Eagle
                   Technicist who go abroad to offer after-sale service




 Products Parameter

Model	ZS-2512R Four Axis Rotary Wood CNC Router
Working Stoke	Ø250X1200mm
Feeding Height	160mm-250mm
Table Structure	T-slot
Body Structure	Thick steel tube welded, w/ tempering
Spindle Power	800W ~ 3.7KW frequency water-cooling spindle (Air-cooling motor, or Italy imported HSD motor is optional)
Spindle Speed	0 ~ 24000 rpm/min
Control System	NC Studio/ DSP
Drive System	Alpha servo motor
Lubrication System	Automatic

Transmission	XY axis rack and pinion, Z axis ball screw
Guide Rail	Taiwan Hiwin linear rail
Max Travelling Speed	20m/min
Max Processing Speed	10m/min
Dictate Format	G code/ HPGL
Engraving Tool	¢3.175/ 4/ 6/ 12.7mm
Working Accuracy	±0.02mm
Re-positioning Accuracy	±0.05mm
Working Voltage	AC380/ 3PH/ 50HZ
Net Weight	2500KG
Machine Size	2700*2000*2100mm

Main Useage


Application Scop:

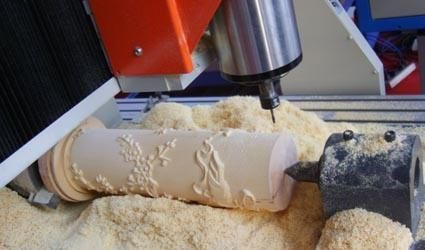

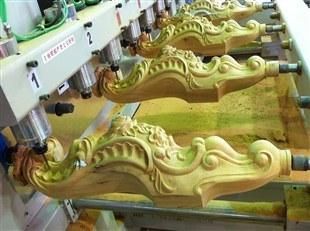

Can be widely used for the 3D processing of body sculpture,statues,artware,furniture,stone columns,ect..
