• Model NO.：GBX218
• After-Sales Service Provided：Engineers Available to Service Machinery Overseas
• Transport Package：Disc Chipper No Packing or Customed
• Specification：2300*2150*1500mm
• Trademark：Yufchina
• Origin：Henan, China (Mainland)
• HS Code：84659600
• Production Capacity：30 Set,Sets Per Month

Basic Info.

Model NO. GBX218 After-Sales Service Provided Engineers Available to Service Machinery Overseas Transport Package Disc Chipper No Packing or Customed Specification 2300*2150*1500mm Trademark Yufchina Origin Henan, China (Mainland) HS Code 84659600 Production Capacity 30 Set/Sets Per Month

Product Description

Wood chip crusher/ wood chipper

        We have two types, one is drum wood chipper, the other is disc wood chipper, for drum wood chipper details, as below:




 Drum wood chipper introduction:

     Drum wood chipper is the preparation of a variety of high-quality wood and special equipment, used in paper mills, particle board plant, wood fiberboard factory production and export base.
   You can log, wood and other cutting trails degree uniform growth, cut flat, uniform thickness of high-quality industrial wood, you can cut the branches, plates and so on.


Raw Materials

Two kinds of raw material applying in drum wood chipper:
1.wood material:wood path,wood branches, slab, batten, log core, waste veneer, wood waste, etc
2.non-wood material:sugar cane, reed, bamboo, etc

Wood chipper Technical Parameter:

Model	GBX215	GBX216	GBX218	GBX2110	GBX2113
output capacity (t/h)	5-8	8-12	10-20	15-25	25-35
blade qty (pcs)	2 or 3	2 or 3	3 or 4 or 5	3 or 4 or 5	3 or 4 or 5
main motor power (kw)	45	55	110	132-160	220
feeding motor power (kw)	2.2-3	3-4	4-5	7.5-11	11
rotor dia. (mm)	500	600	800	1000	1300
feed inlet size (mm)	160*400	230*500	300*680	500*1000	500*700
rotary speed of rotor (rpm)	590	590	650	500	500
feeding speed (m/min)	38	38	38	38	38
max. log dia.(mm)	160	200	300	420	450
wood chips size (mm)	20-35	20-35	20-35	20-35	20-35
feed conveyor power (kw)	2.2	4	4	11	11
discharge conveyor power (kw)	2.2	3	5.5	5.5	7.5
weight (kg)	2990	4070	7200	12500	14500
dimension (mm)	1540*1240*1020	1980*1950*1250	2300*2150*1500	3850*2448*2050	3850*2448*2050

Drum Wood Chipper Features:

 (1) Strong adaptability: Because of using assembly technologies of a host equipped with self-discharge system and host integration with the main motor base, eliminating the production of host-based foundation and the main motor, can be adapted to install and use in different geographical, topographical conditions, ignore the season, climate, and other the influence of external conditions.
 (2) Saving time: Free for the foundation, users can save valuable time 10-15 days. Equipment can be immediately to the installation, operation after being transported usually 1-2 days to complete, saving 2/3 of the time than usual.
(3) Saving money: Free for the foundation, which can make savings for the user on human, material, and financial resources.
(4) Flexible and convenient: Because no installation in the machine, installation and commissioning of the equipment is very simple, greatly improves the speed and flexibility of installation. Because it has the feeding device of band two, the user can change the direction of the material according to the needs and be flexible to use.

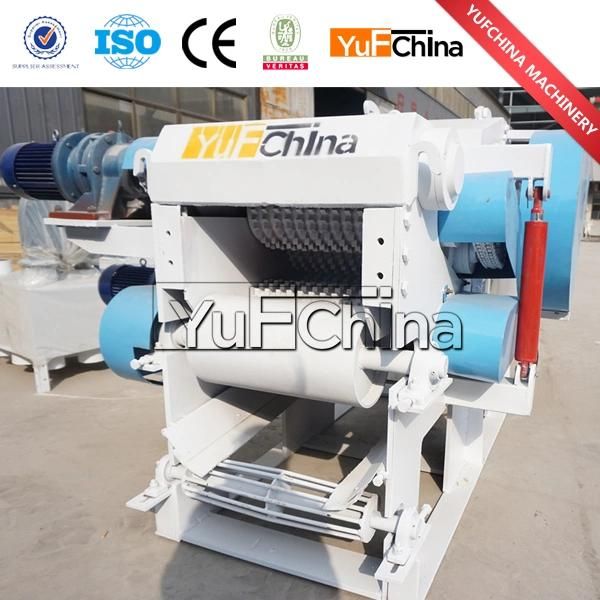

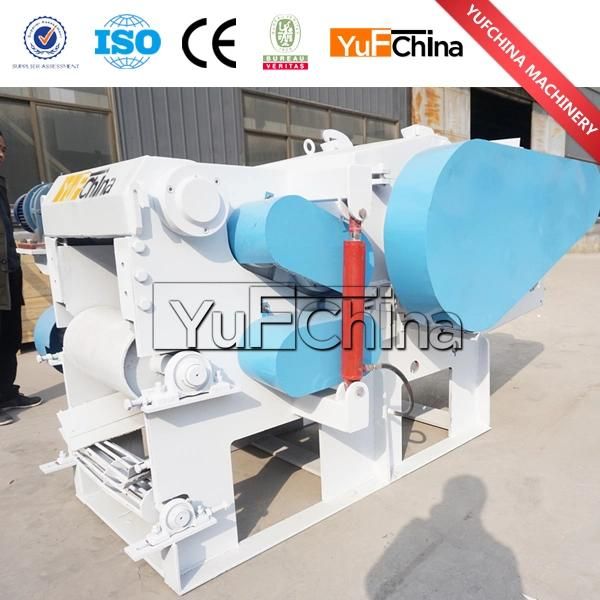

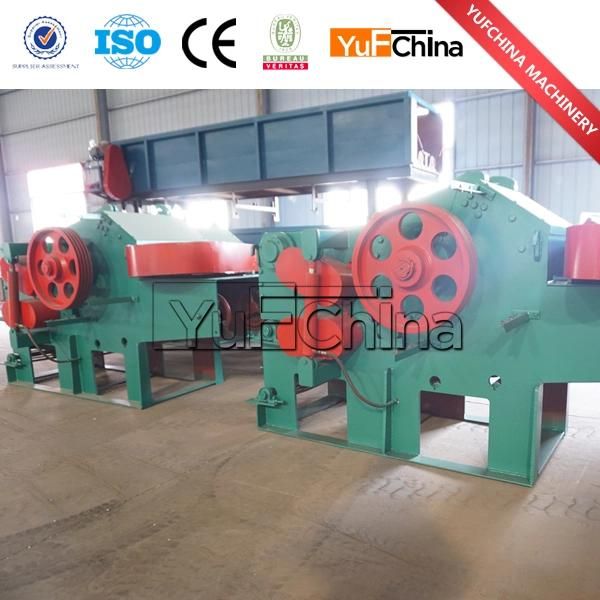

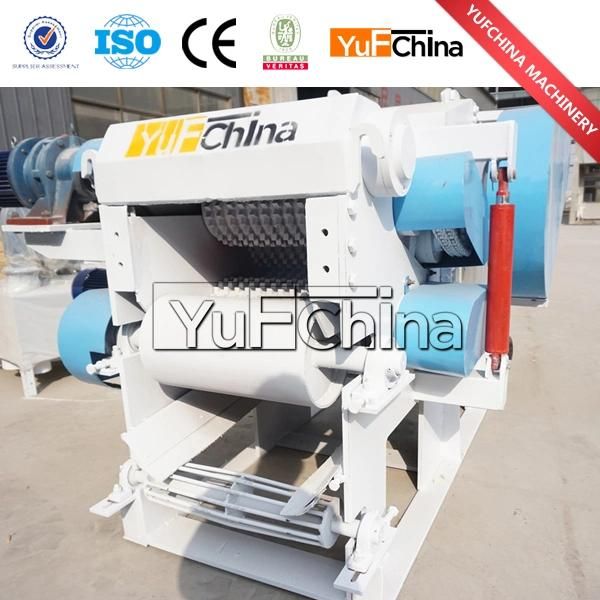

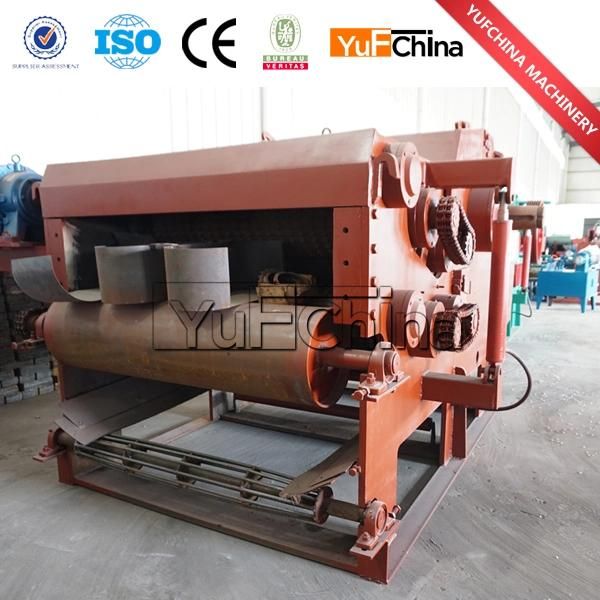

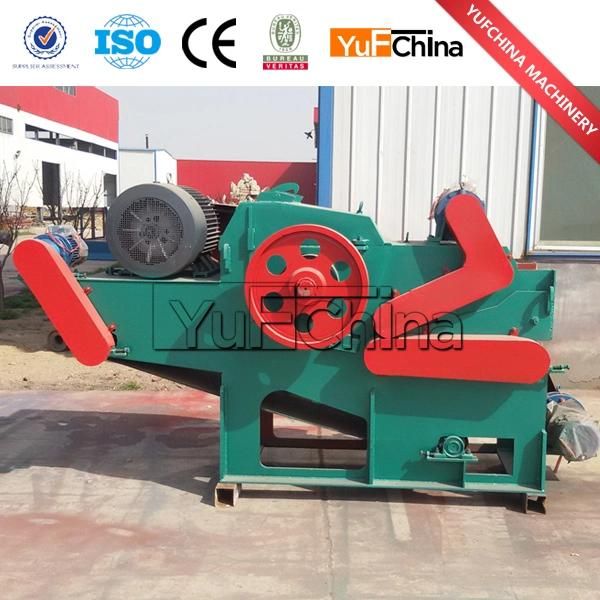

More pictures of Drum Wood Chipper






Installation & Training & service

1. Our factory has been set up for many years, and we have a lot of professional technological people in wood pellet machine, wood drum chipper, and other wood equipments, they are ready to service for you at any time;
2. We can design and manufacture wood chipper for you according to your special requirements;
3. You can find the best price of the  wood chipper from here, because we are the factory, and we are factory directly sales;
4.  Our company will free of charge to arrange technical personnel for installation and training customer's workers until they can operate the wood pellet machine skillful.
5.  We offer timely and effective service.

If you have any questions, please feel free to contact us.
