• Model NO.：GBX216
• After-Sales Service Provided：Engineers Available to Service Machinery Overseas
• Transport Package：Disc Chipper No Packing or Customed
• Specification：1980*1950*1250mm
• Trademark：Yufchina
• Origin：Henan, China (Mainland)
• HS Code：84659600
• Production Capacity：30 Set,Sets Per Month

Basic Info.

Model NO. GBX216 After-Sales Service Provided Engineers Available to Service Machinery Overseas Transport Package Disc Chipper No Packing or Customed Specification 1980*1950*1250mm Trademark Yufchina Origin Henan, China (Mainland) HS Code 84659600 Production Capacity 30 Set/Sets Per Month

Product Description

Manufacturer factory direct diesel wood chipping machine

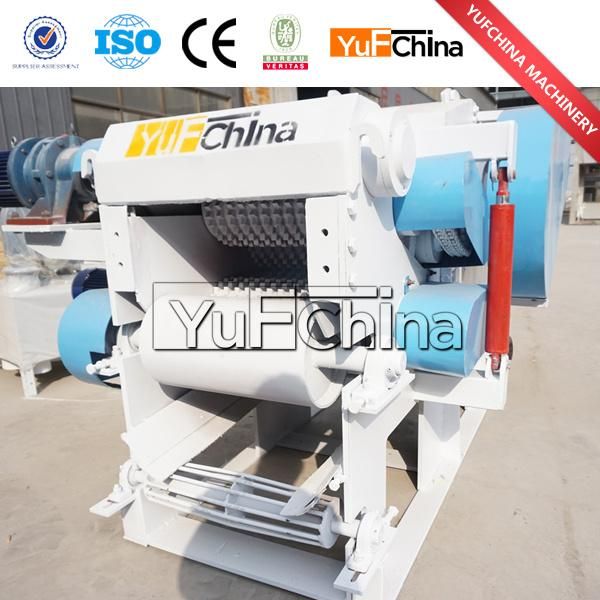

Discription of drum wood chipper
1. Drum wood chipper professionaled used for making wood chips ,especially extensively in pulp and paper making.
2. Material can be wood log ,branches,twig,wood board (even construction wood board),wood pallet,etc.
3. Easy operate, high output, wide adapt of raw materials, safe, easy to maintain.
Raw Materials
       Raw material for drum type wood chipper cutting is mainly small trail wood, lumbering remains (such as branches, twigs, tress etc) and woodworking remains (such as slab, plank, log core, waste veneer etc). It also can be used to chip non-ligning raw material such as flax pole, bulrush, bamboo, etc.

Wood chipper Technical Parameter:

Model	GBX215	GBX216	GBX218	GBX2110	GBX2113
output capacity (t/h)	5-8	8-12	10-20	15-25	25-35
blade qty (pcs)	2 or 3	2 or 3	3 or 4 or 5	3 or 4 or 5	3 or 4 or 5
main motor power (kw)	45	55	110	132-160	220
feeding motor power (kw)	2.2-3	3-4	4-5	7.5-11	11
rotor dia. (mm)	500	600	800	1000	1300
feed inlet size (mm)	160*400	230*500	300*680	500*1000	500*700
rotary speed of rotor (rpm)	590	590	650	500	500
feeding speed (m/min)	38	38	38	38	38
max. log dia.(mm)	160	200	300	420	450
wood chips size (mm)	20-35	20-35	20-35	20-35	20-35
feed conveyor power (kw)	2.2	4	4	11	11
discharge conveyor power (kw)	2.2	3	5.5	5.5	7.5
weight (kg)	2990	4070	7200	12500	14500
dimension (mm)	1540*1240*1020	1980*1950*1250	2300*2150*1500	3850*2448*2050	3850*2448*

Drum Wood Chipper Features
   1. Strong adaptability: Because of using assembly technologies of a host equipped with self-discharge system and host integration with the main motor base, eliminating the production of host-based foundation and the main motor, can be adapted to install and use in different geographical, topographical conditions, ignore the season, climate, and other the influence of external conditions.
   2. Saving time: Free for the foundation, users can save valuable time 10-15 days. Equipment can be immediately to the installation, operation after being transported usually 1-2 days to complete, saving 2/3 of the time than usual.
  3. Saving money: Free for the foundation, which can make savings for the user on human, material, and financial resources.
Our Services
Pre-sale
We adhere to the principle of acquiring maximum profit at minimum investment,while meeting the needs of each customer.
During-sale
We have production progress report each week with detailed description and photos, including raw materials tables, process and deep process records, testing data sheest, etc.
After-sale
Warranty period of the equipment is 1 year.During the warranty period, the damage caused by non-human factor, YUFENG will be responsible for the repair or replacement.
