• Model NO.：FM1530
• Customized：Customized
• Condition：New
• Color：Customized
• Size：1500*3000*200mm
• Control System：Nc Studio,DSP,Mach 3 Control System
• Guide：Taiwan Hinwin Linear Guide Rail
• Transmission：Taiwan Tbi Ball Crew
• Spindle：3 Kw China Changsheng Water Cooling Spindle
• Motor and Driver：Leadshine Stepper Motor and Driver
• Inverter：Fuling Inverter,Delta Inverter
• Table：T-Slot and Vacuum Table
• Structure：Welded Steel Tube Structure
• Helical Rack and Pinion：German
• Transport Package：Standard Export Woode Case
• Specification：1500*3000mm
• Trademark：FIRMCNC
• Origin：Jinan, China
• HS Code：84649012
• Production Capacity：100sets,Month

Basic Info.

Model NO. FM1530 Customized Customized Condition New Color Customized Size 1500*3000*200mm Control System Nc Studio/DSP/Mach 3 Control System Guide Taiwan Hinwin Linear Guide Rail Transmission Taiwan Tbi Ball Crew Spindle 3 Kw China Changsheng Water Cooling Spindle Motor and Driver Leadshine Stepper Motor and Driver Inverter Fuling Inverter/Delta Inverter Table T-Slot and Vacuum Table Structure Welded Steel Tube Structure Helical Rack and Pinion German Transport Package Standard Export Woode Case Specification 1500*3000mm Trademark FIRMCNC Origin Jinan, China HS Code 84649012 Production Capacity 100sets/Month

Product Description

China Firm 1500*3000mm Woodworking Milling Engraving Cutting CNC Router Machine

Machine Model:  FM1530
Working Area:  1500*3000*200mm (height can be customized)
Control System:  DSP(or  Nc studio/ Syntec/ March3)
Spindle: 3kw HQD water cooling spindle( or 3.5kw HQDair cooling spindle)
Inverter: Fuling inverter(Delta)
Motor and driver:  Leadshine stepper motor and driver (servo motor)
Rail: Taiwan Hiwin square guide rail (round rail)
Rack: XINYUE helical rack and pinion (straight rack)
Taiwan TBI ball screw
Transmission:   X Y with helical rack and pinion , Z  with Taiwan TBI ball screw
Structure: Big steel tube
Table: Vacuum and T-slot table
France Schneider contactor and leakage protector
Manul lubrication
Tool sensor
Option: 5.5kw water cycle Vacuum pump(5.5kw air vacuum pump), Dust collector

Wood cnc machine parameter

No.	Description	Parameter
1	X,Y,Z Working Area	1500x3000x200mm
2	X,Y,Z Traveling Positioning Accuracy	±0.03mm
3	X,Y,Z Repositioning Accuracy:	±0.03mm
4	Table Surface	Vacuum and T-slot table
5	Frame	Welded steel Tube Structure
6	X, Y Structure	Rack and Pinion Drive
7	Z Structure	Taiwan TBI Ball Screw
8	Max. Rapid Travel Rate	40000mm/min
9	Max. Working Speed	30000mm/min
10	Spindle Power	3KW
11	Spindle Speed	0-24000RPM
12	Working Voltage	AC220V/60HZ ,1PH (Option:380V)
13	Command Language	G Code
14	Operating System	DSP Control System
15	Computer Interface	USB
16	Collet	ER25
17	X,Y Resolution	<0.03mm
18	Running Environment Temperature	0 - 45 Centigrade
19	Relative Humidity	30% - 75%
20	Packing Size	4070X2370X1800mm
21	N.W.	1500KG
22	G.W.	1650KG

Features:
1. Fuselage strong deformation, good rigidity, high precision, reliable performance, Durable in use.
2. Main configuration or chooses import, joint venture brand components, stable performance.
3. Table overall thickening, USES the whole cast iron structure.good to ensure long service life.
4. Using domestic well-known brand water-cooled spindle, low noise, large cutting force,
can ensure bulk processing for a long time.

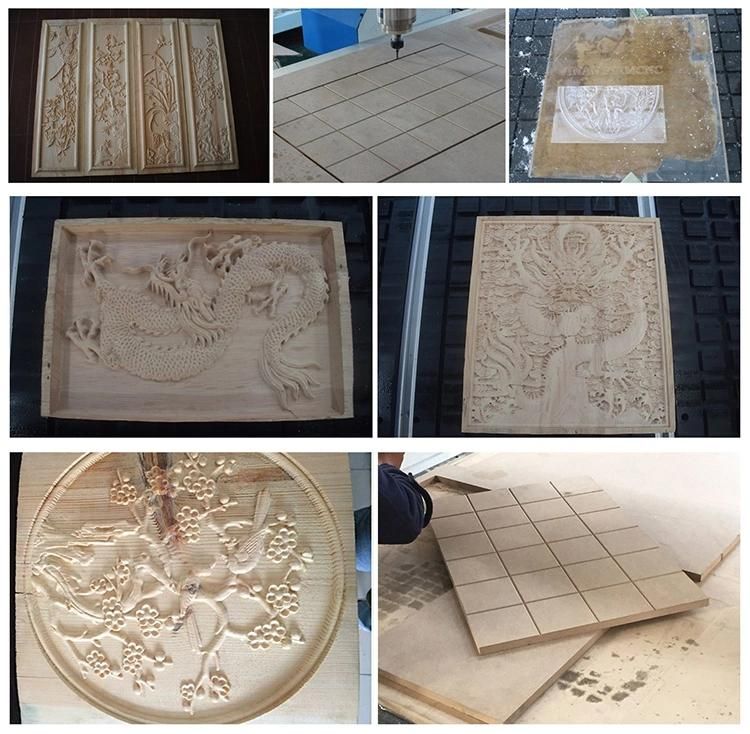

Application:
1. The advertising industry
wood cnc machine can engrave all kinds of signage, trademark, nameplates, badge, decorative gift, embossed medal, certificate, souvenir, photo frame, furniture decoration.
2. woodworking industry
wood cnc machine can be used for solid wood furniture, mahogany furniture, MDF paint door, solid wood door, omposite door, cupboard door and window, bedside cabinet, folding screen etc.
3. Artwork industry
wood cnc machine can process wooden craft, mural art of wood, artwork embossed, jewelery, cosmetics package, musical instrument.
4. Soft metal processing
wood cnc machine can process aluminum front panel, pop can, aluminum honeycomb panel, train car and aircraft interior decoration, bronze medal, copper mold.
5. Electronic industry
wood cnc machine can engrave electronic component, integrated circuit, electronic plastic case, electronic product model, circuit board, electronic light box, computer and mobile phone keyboard, engraving a varity of electronic products.

Packaging and Shipping
Water-proof plastic film package with foam protection in each corner.
Solid Seaworthy Wood Box Package with Steel Belt.
Save space as much as possible for container loading.
Packing size: 3170*2070*1800mm
Gross weight: 1650kg

Our Service
1. We would provide English Version working manual.
2. If you have any questions during using and maintaining,our engineers who could speak very good English would answer you online or by calls.
3. Machine warranty is one year. So if your machine has any unintentional damages,we would provide parts for free.
4. If your machine has big problems if by any chance,our engineers would arrive there to debug and fix.
5. Could be remote control if needed.

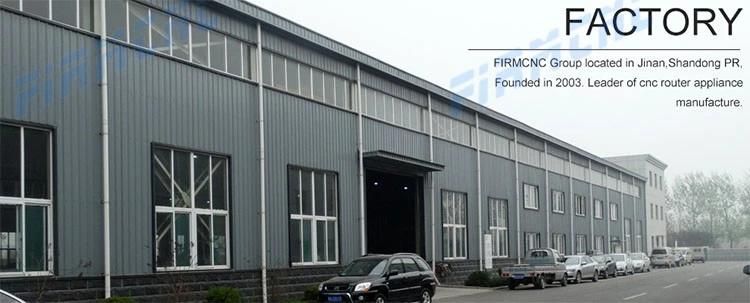

Our Company
Jinan Firm CNC Equipment Co., Ltd is situated in Jinan city, Shandong province. We are a professional and good reputation manufacturer of CNC router (router cnc, cnc wood router), laser engraving machine, CNC plasma cutter, laser cutting machine, laser marking machine in China to the new and existing customers that are spread throughout the South America, Middle East, Southeast Asia, Africa, Europe and other counties of the world and the machines has passed the EU CE certificate
The aim of Jinan Firm CNC Router is to continuously upgrade the technique, to help our customers produce the best quality and high precision products.


FAQ
Question 1:How long about the machine's guarantee ?
Answer :1 year
Question 2:How about your after service ?
Answer :Technical support by phone, e-mail or MSN around the clock.
Question 3: How can we install the machine?
Answer :Friendly English version manual and operation video CD disk.
Question 4: How about the payment terms?
Answer:30% T/T for deposit, 70%T/T paid before shipping.
T/T, West Union, Paypal
Question 5: Do You Arrange Shipment For The Machines?
Answer: Yes, dear esteemed customers, for FOB or CIF price, we will arrange shipment for you. For EXW price, clients need to arrange shipment by themselves or their agents.
