Atc CNC Oscillating Knife Leather Cardboard Carton Cutting Router Machine

Jinan Firm CNC Equipment Co., Ltd.
  • Type：Engraving Router
  • Spindle Layout：Spindle Over
  • Spindle Number：Single or Multi Spindle
  • Feed Mode：Mechanical
  • Controlling Mode：CNC
  • Certification：CE, ISO

Base Info

  • Model NO.：FM1325K
  • Customized：Customized
  • Condition：New
  • Color：Customized
  • Oscillating Knife：Made in German
  • Spindle：Italy Hsd Spindle
  • Spindle Power：9kw Air Cooling
  • Motor：Yaskawa Servo Motor and Driver
  • Control System：Taiwan Syntec Control System
  • Software：Powermill
  • Ball Screw：Taiwan Tbi Ball Screw
  • Working Area：1300X2500mm
  • Application：Leather Fabric Carpet, etc
  • Transport Package：Standard Export Woode Case
  • Specification：2500*1300mm
  • Trademark：FIRMCNC
  • Origin：Jinan, China
  • HS Code：8465990000
  • Production Capacity：100 Sets,Month

Description

DescriptionsParametersModleFM1325KWorking area2500*1300*200mm (can be customized)Working Voltage380V, 3PHASE, 50HZ (can be customized)Control SystemTaiwan SYNTEC control systemControl box1.4m high control boxOscillating knifeGermany ECOCAM EOT-3Spindle9.0kw air cooling ATC spindleSpindle speed0-24000RPM/MINTool magazineLinear type + 8pcs ISO30 tool holders (Carousel type for optional)Motor and Driver750w Leadshine hybrid servo motors and driversInverter5.5kw Fuling inverterStructureNew type thicker and bigger heavy duty welded frame and gantryTable surfaceT-slot and Vacuum Working TableGantry structureGantry MovingLubrication systemAutomatic lubrication systemCalibrationAutomatic tool sensor calibrationMist cooling sprayerAutomaitc oil mist cooling sprayerTransmissionX,Y Axis: Helical rack, Taiwan Hiwin/PMI/ABBA 25
# Rail Linear Bearing
Z Axis: Taiwan Hiwin/PMI/ABBA Rail 25
# Linear Bearing & Taiwan TBI Ball ScrewVacuum pump7.5kw water circlulation vacuum pump (220V, 3PHASE, 50HZ)Dust Collector1.5kw new type double pockets dust collector (220V, 3PHASE, 50HZ)Command languageG CodeColorAccording to your referenceApplicationsLeather, Carpet, Carton, Wood, MDF, PVC, Acrylic, Carboard,
Rubber, Corrugated box, Foam, Leather strip.PS:All the working area and specifications can be customized according to your requests.

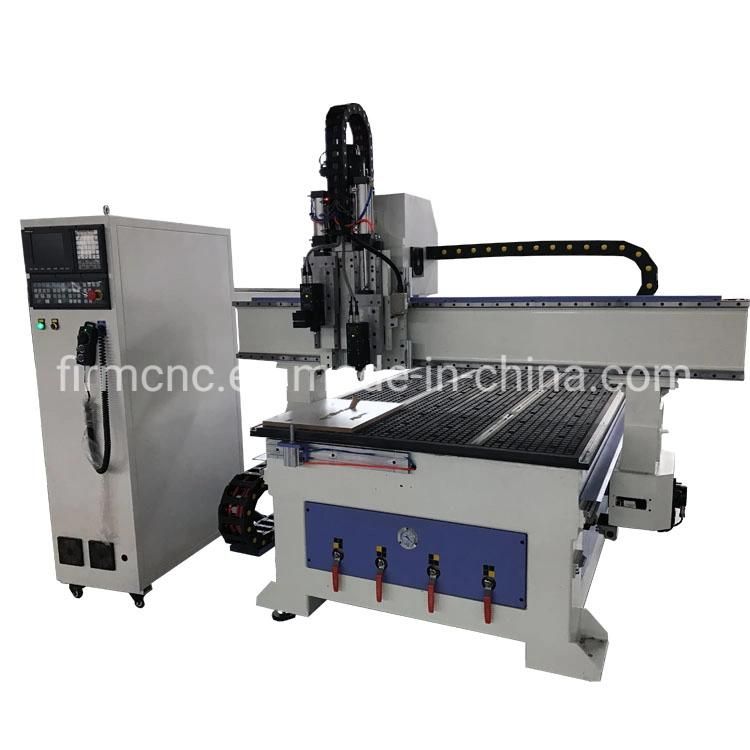

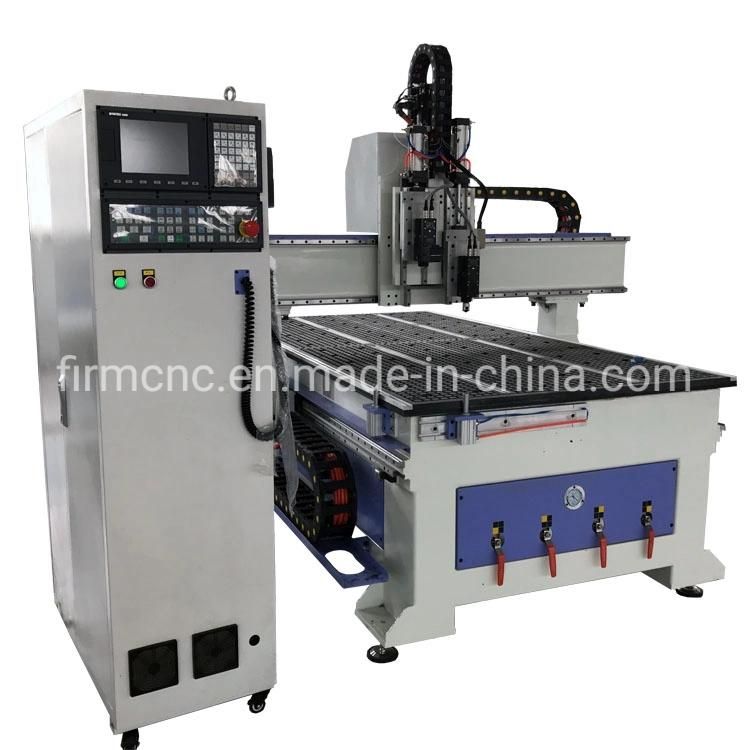

Atc CNC Oscillating Knife Leather Cardboard Carton Cutting Router Machine
Samples
Atc CNC Oscillating Knife Leather Cardboard Carton Cutting Router Machine

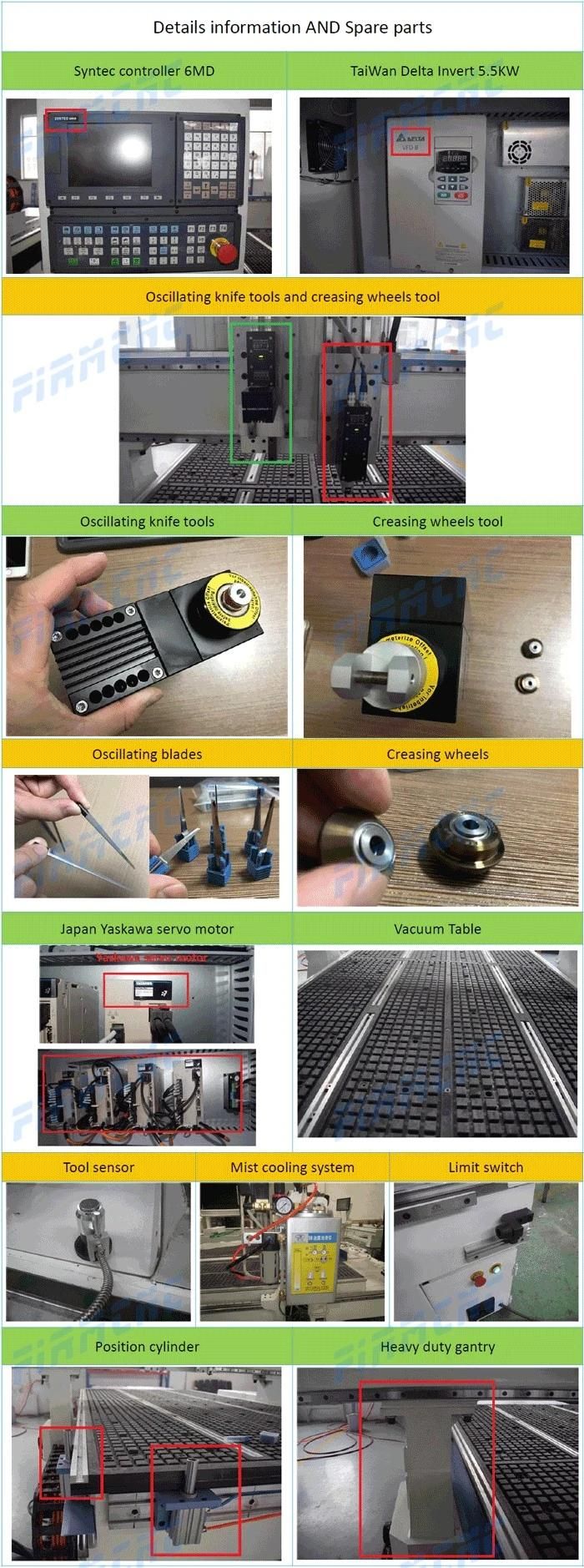

Main configuration
Atc CNC Oscillating Knife Leather Cardboard Carton Cutting Router Machine
Advantage
# Function: Extremely heavy-duty CNC machining center,suitable for routing,drilling,cutting,edge chamfering,etc.
# Construction: Whole machine table adopts high strength thick steel pipe welded.Whole working table cast by resin sand.
The annealing and other heat treatment methods ensure that the whole structure is tested to the limit for sturdiness and reliability.
# Spare parts: Features world top class mechanical and electronic components,e.g.Taiwan rail and ball screw,French Schneider electrical components,
which guarantee stable performance and high quality.
# Precision: Excellent spare parts,accurate precision detection instrument,which make sure he machine with perfect location and working precision.
# Table:Double-layer compound grade board table design,rugged construction,non-deformation,with functions of instant adsorption and release.
# Tool magazine: With an 8-slots Linear tool changer,tool changes to be performed quickly.
Atc CNC Oscillating Knife Leather Cardboard Carton Cutting Router MachineCompany information:
Jinan Firmcnc Equipment Co., Ltd is situated in Jinan city, Shandong province. We are a professional and good reputation manufacturer of CNC router,laser engraving machine, CNC plasma cutter, laser cutting machine, laser marking machine in China to the new and existing customers that are spread throughout the South America, Middle East, Southeast Asia, Africa, Europe and other counties of the world and the machines has passed the EU CE certificate.The aim of Jinan Firm CNC Router is to continuously upgrade the technique, to help our customers produce the best quality and high precision products.

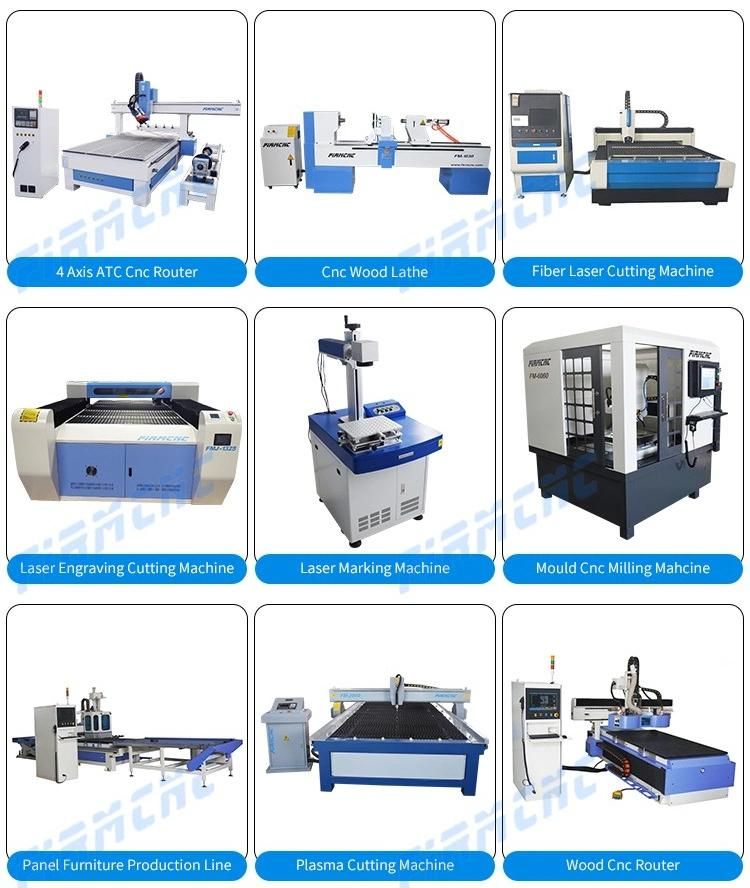

Atc CNC Oscillating Knife Leather Cardboard Carton Cutting Router MachineOther type cnc router machines:
Atc CNC Oscillating Knife Leather Cardboard Carton Cutting Router MachineCustomer visit factory:
Atc CNC Oscillating Knife Leather Cardboard Carton Cutting Router MachineAtc CNC Oscillating Knife Leather Cardboard Carton Cutting Router MachineOur Services
1. 24 hour Technical support by phone, e-mail or MSN around the clock.
2. Friendly English version manual and operation video CD disk.
3.7-15 working days after down payment or full payment.
4. Machine will be adjusted before it is delivered; operation disk/CD was included.
5. Our technician can give you remote guide online (Skype or MSN) if you have any question.
6. Engineers available to service machinery overseas, seller and buyer discuss the charges.
Atc CNC Oscillating Knife Leather Cardboard Carton Cutting Router Machine
Packaging & Shipping
1) Foam and wrapping film on the surface of the machine inside. Rain-proof, Dust proof.
2)Standard export plywood case. Upwards, moistureproof shipping marks. Safety guaranteed.
3) fumigation-free
4)With shipping mark if you like.
5)Outside: Marked packing size, model, weight and other information.
Atc CNC Oscillating Knife Leather Cardboard Carton Cutting Router Machine
FAQ
How long is the delivery time?
For standard machines, it would be 7-10 days; For non-standard machines and customized machines according to client s specific requirements, it would be 15 to 20 days.
How about the payment terms?
30% T/T for deposit, 70%T/T paid before shipping.
T/T, West Union, Paypal
Do You Arrange Shipment For The Machines?
Yes, dear esteemed customers, for FOB or CIF price, we will arrange shipment for you. For EXW price, clients need to arrange shipment by themselves or their agents.
How about Guarantee & After Sales Service?
The machine guarantee is 12 months. 2) 24 hours technical support by phone, email or whatsapp, skype etc.

We will supply free parts in machine warranty period if machine have some problem. While we also supply free after-service forever, so any doubts, just let us know, we will give you solutions in 24 hours.
