• Model NO.：FM1530
• Customized：Customized
• Condition：New
• Color：Customized
• Item：China Firm Atc Wood Carving and Cutting CNC Router
• Controlling System：Syntec Controller
• Working Area：1500*3000*200mm
• Inverter：Delta Inverter
• Table：T-Slot and Vacuum
• Spindle：9.0kw Hsd Air Cooling Spindle
• Guide Rail：Taiwan Hiwin Linear Square Rail
• Ball Screw：Taiwan Tbi Ball Screw
• Helical Rack and Gear：German
• Structure：Welded Steel Tube Structure
• Transport Package：Standard Export Woode Case
• Specification：CE
• Trademark：FIRM
• Origin：China
• HS Code：8464909000
• Production Capacity：100sets,Month

Basic Info.

Model NO. FM1530 Customized Customized Condition New Color Customized Item China Firm Atc Wood Carving and Cutting CNC Router Controlling System Syntec Controller Working Area 1500*3000*200mm Inverter Delta Inverter Table T-Slot and Vacuum Spindle 9.0kw Hsd Air Cooling Spindle Guide Rail Taiwan Hiwin Linear Square Rail Ball Screw Taiwan Tbi Ball Screw Helical Rack and Gear German Structure Welded Steel Tube Structure Transport Package Standard Export Woode Case Specification CE Trademark FIRM Origin China HS Code 8464909000 Production Capacity 100sets/Month

Product Description

Wood Carving Cutting CNC Router Machine for Cabinet

Standard configurations for 1325 atc wood cnc router:
FM1325L-ATC 3 axis machining center( linear tool change system)
#1300mm x 2500mm x 300mm
#Big Steel tube frame
#HELIC Rack and Pinion transmission
#25mm Taiwan Hiwin square linear rials
#Syntec 6MA control system
#Separated control box
#Japanese Yaskawa servo motor 850W
#9.0kw Italy HSD air cooling spindle
#11.0 kw Taiwan Delta inverter
#Tool holders x 8pcs
#Linear Toolholder fork x 8 pcs
#vacuum & T-slot combined table
#Automatic Lubrication system
#France Schneider contactor and leakage protector
#Tool sensor

1. Applicable Industry of 1325 atc wood cnc router
(1) Woodworking industry:
Engraving machine can be used for carving wood carving, wood jewelry boxes, decorative products and jewelry carved and so on.
(2) Advertising industry:
Engraving machine can be used for carving a variety of signs, logos, badges, panels, craft and decorating, home decoration.
(3) Other industries:
Also can be used for portraits, landscapes, calligraphy, seals and other graphic art and sculpture reliefs and other production.

3. Specification of 1325 atc wood cnc router :

Description	Parameter
X,Y,Z working area	1300x2500x300mm
Table size (mm)	1450×2940mm
Resolution	±0.03/300mm
Repeatability	±0.03mm
Table Structure	T-slot and Vacuum combined
Lathe Structure	Welding steel structure
X,Y structure	Rack pinion, Hiwin linear rails
Z structure	Ball screw, Hiwin square rails
Rated power	3Kw (without spindle)
Max. rapid	33000mm/min
Max. Working speed	25000mm/min
Spindle power	9.0kw Italy HSD Spindle
Spindle speed	0-24000RPM
Working mode	Japan yaskawa servo motor and drivers
Working voltage	AC380V/50/60Hz,3Ph(Option 220V,3Ph)
Command code	G code
Operating system	Syntec controlling system
Interface	USB
Memory	128M
Tool holder	ER25
X,Y working accuracy	<0.03mm
Software	Type3 UcancameV9, Artcam
Working temperature	Temperature:0 degree-45 degree Humidity:30%-75% (No Condensation)
Packing size	3300X2100X2300mm
Net weight	1750KG
Gross weight	1980KG
Optional Spare Parts	Domestic water cooling spindle
	Double bag dust collection,vacuum pump
	rotary

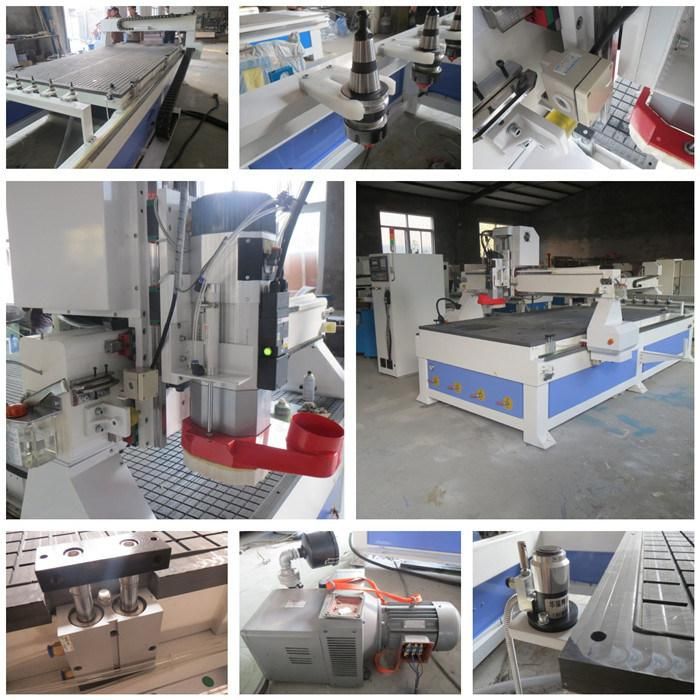

1325 atc cnc router details :

Samples

Performance & Characteristics

1. High-power automatic tool change spindle and imported carousel style tool bank are adopted to achieve one-step formation of complex machining;

2. Through industrial grade overall welding lathe bed with tempering and aging treatment, deformation is avoided and the stability and processing precision of the machine toolare improved;

3. The 9.0 kw high-power air-cooled spindle from Italian well-known brand HSD is adopted.

4. Imported YASUKAWA servo drive system that features large torque, high precision, high speed and stable performance is adopted;

5. Tool changing time needs 10 s, with large capacity available for tailored solutions.

6. Taiwan SYNTEC control system that is compatible with various CAD/CAM design and production software is adopted. The system can control and complete multilayer 3D machining and conduct quick smooth 3D machining, engraving and cutting;

7. Imported liner square rail and double-row four-column runner block that can provide high weight capacity, smooth operation, high precision and high strength are adopted. The rail provides high mechanical strength and wearing resistance. The service lift is 10 times higher than round rail. The imported ball screw is characterized by high precision and accurate positioning;

8. International advanced vacuum adsorption table made of high adsorption bakelite plate is adopted. It can absorb materials of different areas, and features high density and non-deformation.

6. Our service
# Two years warranty for the machine
# Replacing all parts for free during warranty
# If nessessary, provide door to door service to your country
# 12 hours on line service
# Replying your email and offer tecnical service within 24 hours


7. FAQ:
Q1: How long is the delivery time?
For standard machines, it would be 7-10 days; For non-standard machines and customized machines according to client s specific requirements, it would be 15 to 30 days.

Q2: How about the payment terms?
30% T/T for deposit, 70%T/T paid before shipping.
T/T, West Union, Paypal

Q3: Do You Arrange Shipment For The Machines?
Yes, dear esteemed customers, for FOB or CIF price, we will arrange shipment for you. For EXW price, clients need to arrange shipment by themselves or their agents.

Q4: How about Guarantee & After Sales Service?
1) The machine guarantee is 12 months.
2) 24 hours technical support by phone, email or msn, skype etc.

Q5: If some problems happened to this machine during warranty period,what should i do?
We will supply free parts in machine warranty period if machine have some problem.While we also supply free after-service forever, so any doubts,just let us know, we will give you solutions in 24 hours.

Q6: What is the MOQ?
MOQ for our products is 1 set machine,we could send it to your country port  if you tell detail information about your country port.
