• Model NO.：FM1325
• Customized：Customized
• Condition：New
• Color：Customized
• Engraving Area：1300*2500*200mm
• Table：Vacuum Table
• Spindle：3.0kw Changsheng Water Cooling Spindle
• Control System：DSP
• Motor and Driver：Leadshine Stepper Motor and Driver
• Inverter：Fulling Inverter
• Rails：Taiwan Hiwin Square Rails
• Ball Screw：Taiwan Tbi Ball Screw
• Limit Switch：Japan Omron
• Other：France Schneider Contactor and Leakage Protector
• Transport Package：Wooden Box
• Specification：CE, SGS, ISO
• Trademark：FIRMCNC
• Origin：Shandong, Jinan
• HS Code：84649012
• Production Capacity：5000 Sets,Year

Basic Info.

Model NO. FM1325 Customized Customized Condition New Color Customized Engraving Area 1300*2500*200mm Table Vacuum Table Spindle 3.0kw Changsheng Water Cooling Spindle Control System DSP Motor and Driver Leadshine Stepper Motor and Driver Inverter Fulling Inverter Rails Taiwan Hiwin Square Rails Ball Screw Taiwan Tbi Ball Screw Limit Switch Japan Omron Other France Schneider Contactor and Leakage Protector Transport Package Wooden Box Specification CE, SGS, ISO Trademark FIRMCNC Origin Shandong, Jinan HS Code 84649012 Production Capacity 5000 Sets/Year

Product Description

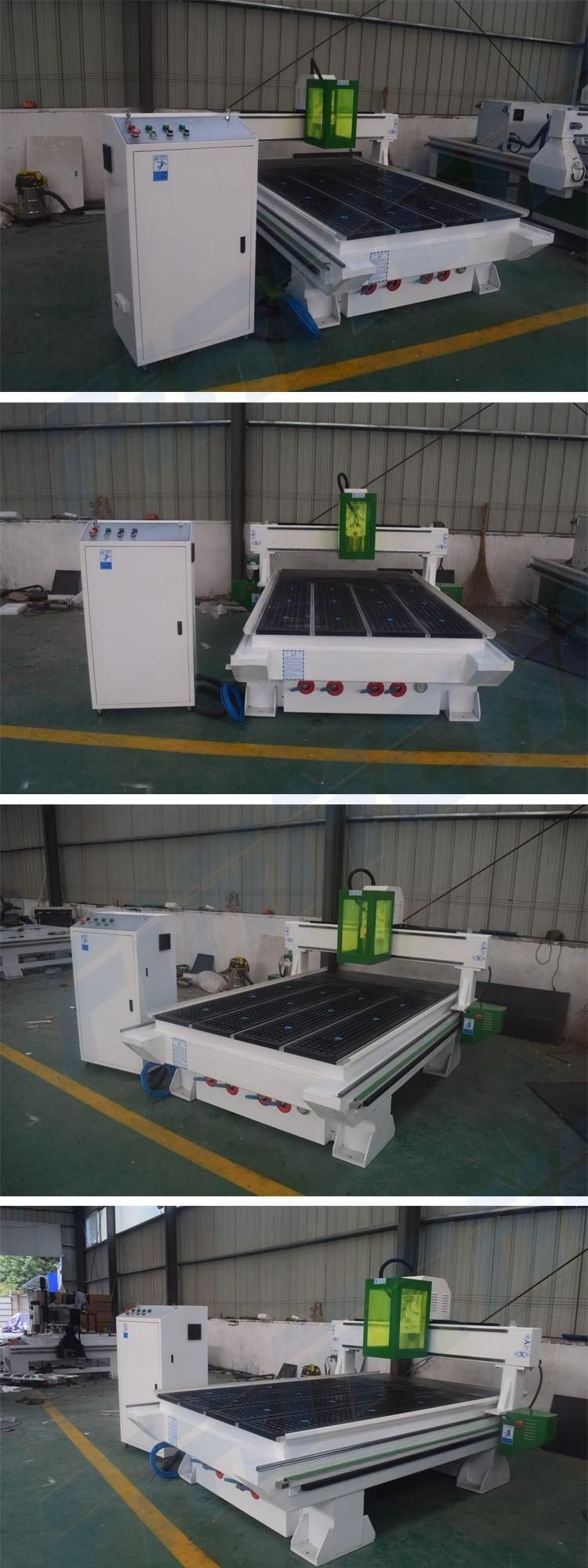

Sculpture wood carving cnc router machine with best quality

Features:
1. Robust square steel machinery body, stiff not deforming and tempering aging treatment, reasonable & advanced welding procedure, ensure stability of machine.
2. The special instruments to eliminate welding stress, high precision machining planer ensure the precision and no deformation.
3. The major machine body makes stability and no shacking high speed.
4. XYZ all apply imported screw, high precision gear frame and linear square guide, ensure the high accuracy.
5. The professional mechanical design, scientific a structure and generous appearance, gantry height 200MM can ensure Z axis working size...
6. XYZ axis use anti-dust system, prevent dust working, make sure the long lifespan of spare parts.
7. High quality drive motors, spindle motors, cables inverters, etc.
8. Powerful dust extraction system to prevent no dust In the process of machining.
9. Strong adsorption system to ensure the efficiency is greatly improved in the process of machining.
10. The advanced professional control system compatible with many instructions
Formats, may achieve process function in interruption of power supply, breakpoint
And next day which is more convenient and save labor.
11. Professional CNC control system, can compatible with many kinds CAM software, such as: TYPE3/ARTCAM/UG/PRO-E/MASTERCAM.


Technical specification

Brand	Firm
Model	FM-1325
Machine Size (mm)(W*L*thickness)	1900*3100*1800
Table size(mm)	1600*3100
Engraving area (W*L*thickness)(mm)	1300*2500*200
Working Form	Full-automatic
Spindle Power	3.0KW water cooling spindle
Spindle Rotate(rpm)	6000~24000
Motor Driver	Stepper motor (Chinese servo motor or imported servo motor is optional)
Tool Diameter(mm)	Ø3.175,Ø4,Ø6, Ø12.7mm
Machine Structure	Industry square tube structure
Transmission System	Imported ball screw or high accuracy gear rack
X,Y,Z Rail	Imported square rail
Mechanical Accuracy	<0.03/300mm
Engraving Speed(mm/min)	8000~12000mm/min
Feeding Speed	manual
Data Transmission	PC connect
Support Format	G code or HPGL
Working Voltage	AC220V/50Hz or 380V/50Hz
Support Format	G Code or HPGL
Range of Application	Woodworking relief engrave ,Cutting , Hollow
Machine Net Weight	1200Kg

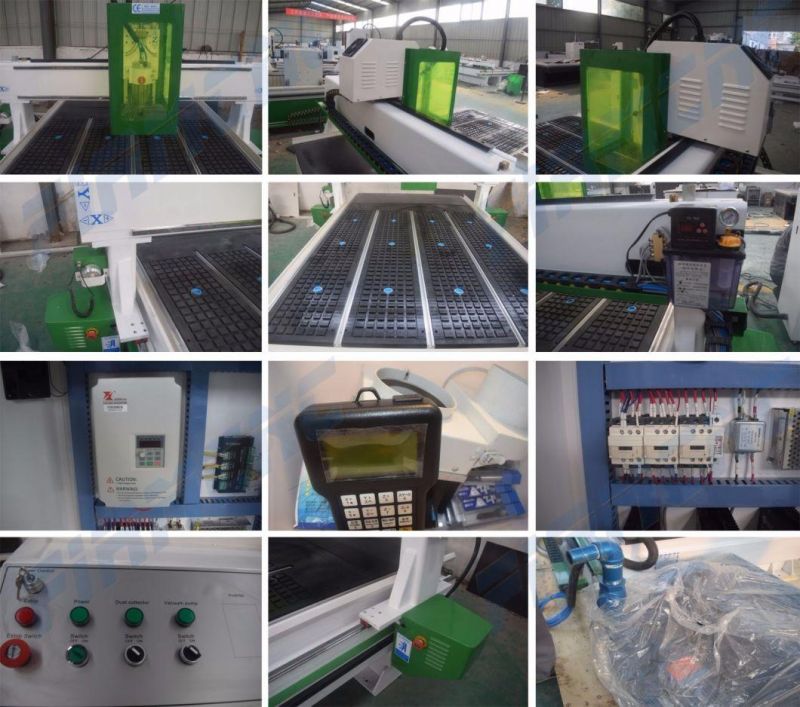

Main parts

Samples


Packaging and Shipping
Water-proof plastic film package with foam protection in each corner.
Solid Seaworthy Wood Box Package with Steel Belt.
Save space as much as possible for container loading.

Our Service
Before sale:
We would always be here to provide any information you need at the first time,and give professional suggestions according to your real needs for free;
During sale:
We would deal with all the production and shipping affairs,after everything is ready,we would tell you everything goes well here;
After sale:
1. We would provide English Version working manual.
2. If you have any questions during using and maintaining,our engineers who could speak very good English would answer you online or by calls.
3. Machine warranty is one year. So if your machine has any unintentional damages,we would provide parts for free.
4. If your machine has big problems if by any chance,our engineers would arrive there to debug and fix.
5. Could be remote control if needed.

Our Company
Jinan Firm CNC Equipment Co., Ltd is situated in Jinan city, Shandong province. We are a professional and good reputation manufacturer of CNC router (router cnc, cnc wood router), laser engraving machine, CNC plasma cutter, laser cutting machine, laser marking machine in China to the new and existing customers that are spread throughout the South America, Middle East, Southeast Asia, Africa, Europe and other counties of the world and the machines has passed the EU CE certificate
The aim of Jinan Firm CNC Router is to continuously upgrade the technique, to help our customers produce the best quality and high precision products.



FAQ
Question 1:How long about the machine's guarantee ?
Answer :1 year
Question 2:How about your after service ?
Answer :Technical support by phone, e-mail or MSN around the clock.
Question 3: How can we install the machine?
Answer :Friendly English version manual and operation video CD disk.
Question 4: How about the payment terms?
Answer:30% T/T for deposit, 70%T/T paid before shipping.
T/T, West Union, Paypal
Question 5: Do You Arrange Shipment For The Machines?
Answer: Yes, dear esteemed customers, for FOB or CIF price, we will arrange shipment for you. For EXW price, clients need to arrange shipment by themselves or their agents.
