• Model NO.：FM1530
• Customized：Customized
• Condition：New
• Color：Customized
• Product：Wood CNC Router Machine
• Working Area：1500*3000*200mm
• Control System：Nc Studio , DSP Control System
• Spindle：3kw Water Cooling Spindle
• Inverter：Fuling Inverter
• Motor and Driver：Leadshine Stepper Motor and Driver
• X Y Axis Transmission：Xinyue Helical Rack and Gear, Hiwin Rail
• Z Axis Transmission：Taiwan Tbi Ball Screw, Hiwin Square Rail
• Table：T-Slot, Vacuum
• Structure：6mm Welded Steel Tube
• Transport Package：Standard Export Woode Case
• Specification：1500*3000mm
• Trademark：FM
• Origin：China
• HS Code：84649012
• Production Capacity：100sets,Month

Basic Info.

Model NO. FM1530 Customized Customized Condition New Color Customized Product Wood CNC Router Machine Working Area 1500*3000*200mm Control System Nc Studio / DSP Control System Spindle 3kw Water Cooling Spindle Inverter Fuling Inverter Motor and Driver Leadshine Stepper Motor and Driver X Y Axis Transmission Xinyue Helical Rack and Gear, Hiwin Rail Z Axis Transmission Taiwan Tbi Ball Screw, Hiwin Square Rail Table T-Slot/ Vacuum Structure 6mm Welded Steel Tube Transport Package Standard Export Woode Case Specification 1500*3000mm Trademark FM Origin China HS Code 84649012 Production Capacity 100sets/Month

Product Description

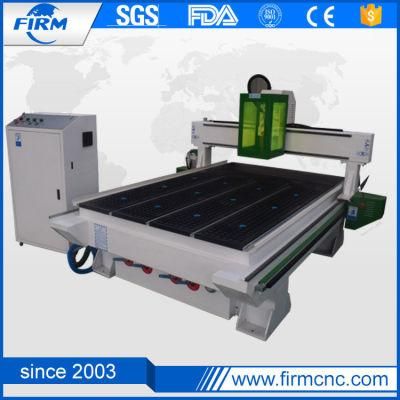

1500*3000mm Wood CNC Router Milling Machine for MDF Board

Features:
1. Robust square steel machinery body, stiff not deforming and tempering aging treatment,
Reasonable & advanced welding procedure, ensure stability of machine.
2. The special instruments to eliminate welding stress, high precision machining planer Ensure the precision and no deformation.
3. The major machine body makes stability and no shacking high speed.
4. XYZ all apply imported screw, high precision gear frame and linear square guide, ensure The high accuracy.
5. The professional mechanical design, scientific a structure and generous appearance, Gantry height 200MM can ensure Z axis working size.
6. XYZ axis use anti-dust system, prevent dust working, make sure the long lifespan Of spare parts.
7. High quality drive motors, spindle motors, cables inverters, etc.
8. Powerful dust extraction system to prevent no dust In the process of machining.
9. Strong adsorption system to ensure the efficiency is greatly improved in the process of machining.
10. The advanced professional control system compatible with many instructions formats,
May achieve process function in interruption of power supply, breakpoint and next day Which is more convenient and save labor.
11. Professional CNC control system, can compatible with many kinds CAM software, Such as: TYPE3/ARTCAM/UG/PRO-E/MASTERCAM.
12. We can produce the machine as your requirements.

Technical spefication

Brand	Firm
Model	FM-1530
Engraving area (W*L*thickness)(mm)	1500*3000*200
Working Form	Full-automatic
Spindle Power	3.0KW water cooling spindle
Spindle Rotate(rpm)	6000~24000
Motor Driver	Stepper motor (Chinese servo motor or imported servo motor is optional)
Tool Diameter(mm)	Ø3.175,Ø4,Ø6, Ø12.7mm
Machine Structure	Industry square tube structure
Transmission System	Imported ball screw or high accuracy gear rack
X,Y,Z Rail	Imported square rail
Mechanical Accuracy	<0.03/300mm
Engraving Speed(mm/min)	8000~12000mm/min
Feeding Speed	manual
Data Transmission	PC connect
Support Format	G code or HPGL
Working Voltage	AC220V/50Hz or 380V/50Hz
Support Format	G Code or HPGL
Range of Application	Woodworking relief engrave ,Cutting , Hollow
Machine Net Weight	1200Kg

Applications:
Widely used in antique furniture with relief carving, wood carving, furniture- processing, in
Struments making 3D light box making, making, aluminum composite panel, funding mound
Decorative doors and windows processing etc.

Special configurations;
It can be customized more large format and special models, and it can be optional standard configuration spindle or importing, auto-change tool system, oil lubrication system,
Vacuum inhaling and dust collect etc.

Guarantee & After Sales Service:
1. One year quality guaranty, the machine with main parts (excluding the consumables) shall be changed free of charge when problems happened during the warranty period.
2. Lifetime maintenance free of charge.
3. Free training course at our plant.
4. We will provide the consumable parts at an agency price when you need replacement.
5.12 hours on line service each day, free technical support.

Our Company
Jinan Firm CNC Equipment Co., Ltd is situated in Jinan city, Shandong province. We are a professional and good reputation manufacturer of CNC router (router cnc, cnc wood router), laser engraving machine, CNC plasma cutter, laser cutting machine, laser marking machine in China to the new and existing customers that are spread throughout the South America, Middle East, Southeast Asia, Africa, Europe and other counties of the world and the machines has passed the EU CE certificate
The aim of Jinan Firm CNC Router is to continuously upgrade the technique, to help our customers produce the best quality and high precision products.



FAQ
Question 1:How long about the machine's guarantee ?
Answer :1 year
Question 2:How about your after service ?
Answer :Technical support by phone, e-mail or MSN around the clock.
Question 3: How can we install the machine?
Answer :Friendly English version manual and operation video CD disk.
Question 4: How about the payment terms?
Answer:30% T/T for deposit, 70%T/T paid before shipping.
T/T, West Union, Paypal
Question 5: Do You Arrange Shipment For The Machines?
Answer: Yes, dear esteemed customers, for FOB or CIF price, we will arrange shipment for you. For EXW price, clients need to arrange shipment by themselves or their agents.
