1300mm X 2500mm Woodworking CNC Router
Jinan Dwin Technology Co., Ltd.- Type：Engraving Router
- Spindle Layout：Vertical
- Spindle Number：Single-Spindle
- Feed Mode：Manual
- Controlling Mode：CNC
- Certification：CE, FDA
Base Info
- Model NO.：DW1325
- Customized：Customized
- Condition：New
- Color：Customized
- Spindle Power：3.0kw,4.5kw,5.5kw,7.5kw
- Working Size：Customized
- Spindle Quantity：Customized
- Table：Vacuum Table or T-Slot Table or Together
- Z Axis Height：Customized
- Working Voltage：AC380V 3pH 50Hz,60Hz
- Operating System：DSP,Mach3,Nc-Studio System
- Software Compatability：Type3 Software,Ucancam Software(Option:Artcam Soft
- Table Surface：Bakelite Vacuum Ttable (Option:T-Slot Table)
- Max.Power Consumption (Without Spindle)：2.0kw
- Transport Package：Plywood Box, Free From Fumigation
- Specification：CE
- Trademark：dwin made in china
- Origin：Jinan, Shandong, China
- HS Code：8465990000
- Production Capacity：50 Sets Per Month
Description
Basic Info.
Model NO. DW1325 Customized Customized Condition New Color Customized Spindle Power 3.0kw/4.5kw/5.5kw/7.5kw Working Size Customized Spindle Quantity Customized Table Vacuum Table or T-Slot Table or Together Z Axis Height Customized Working Voltage AC380V 3pH 50Hz/60Hz Operating System DSP/Mach3/Nc-Studio System Software Compatability Type3 Software,Ucancam Software(Option:Artcam Soft Table Surface Bakelite Vacuum Ttable (Option:T-Slot Table) Max.Power Consumption (Without Spindle) 2.0kw Transport Package Plywood Box, Free From Fumigation Specification CE Trademark dwin made in china Origin Jinan, Shandong, China HS Code 8465990000 Production Capacity 50 Sets Per MonthProduct Description

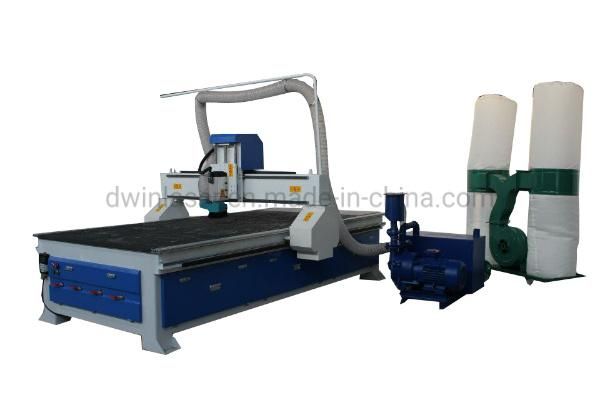

1300mm x 2500mm Woodworking CNC Router DW1325
Following features:
Place of Origin: China
1) Woodworking: three-dimensional wave board processing, wooden door, screen, craft window processing and different kinds of furniture assistance processing
2) Advertisement stuff: the advertisement label and marking manufacturing, cutting, various kinds of materials and advertisement decoration products manufacturing
3) Mold manufacturing: our routers may carve metal molds including copper, aluminum, iron, as well as non-metal molds like marble, plastic board and wooden board
4) Other lines: our routers may carve various kinds of shade vulture, relief, craft and gift
5) High speed processing: the curving and linear speeds are consistent and the running rate amounts to above 35 meters/minutes
6) Excellent parts: our company uses Italy ball screw, imported linear rail and outstanding step-by-step system. We also use imported bearing and highly efficient main axle electrical machinery
7) Compatible software: our software is compatible with type 3/Artcam/Castmate and other kinds of CAD/CAM design software
8) Convenient hold controls: we uses advanced USB connection type with DSP operating system. Our routers can completely work off-line and do not take any computer resources
9) Besides, our routers have realized automatic starting and stopping of DSP operating system
10) Excellence performance: our routers have the features of recording after stop and the power failure may be restored
12) The vacuum table can have strong absorbing ability .together with the Vacuum pump for 5.5kw
Application and Usage:
- Kitchen Cabinets
- Office furniture
- Real wood and MDF panels
Features
1. Cast steel structure makes our router more stable
2. Auto lubrication makes maintenance much easier
3. Separate controlling cabinet makes operations more convenient
Machine specifications:
Specifications:
1 | X,Y,Z Working Area | 1300x2500x200mm |
| 2 | Table Size | 1460x2750mm |
| 3 | X,Y,Z Traveling Positioning Accuracy | ±0.05/300mm |
| 4 | X,Y,Z Repositioning Positioning Accuracy | ±0.05mm |
| 5 | Table Surface | Bakelite Vacuum Ttable (Option:T-slot table) |
| 6 | Frame | Cast steel structure |
| 7 | X, Y Structure | Rack and Pinion Drive,Hiwin Rail Linear Bearings |
| 8 | Z Structure | Ball Screw, Hiwin Rail Linear Bearings |
| 9 | Max.Power Consumption (Without spindle) | 2.0Kw |
| 10 | Max.Rapid Travel Rate | 32000mm/min |
| 11 | Max.Working Speed | 20000mm/min |
| 12 | Spindle Power Motor | 4.5KW Spindle water cooling |
| 13 | Spindle Speed | 0-24000RPM |
| 14 | Drive Motors | Stepper system(Option:Servo System) |
| 15 | Working Voltage | AC380V 3PH 50HZ/60HZ |
| 16 | Command Language | G Code |
| 17 | Operating System | DSP/Mach3/Nc-studio System |
| 18 | Interface | USB |
| 19 | Flash Memory | 128M(U Disk) |
| 20 | Collet | ER25 |
| 21 | X,Y Resolution | <0.02mm |
| 22 | Software Compatability | Type3 software,Ucancam software(Option:Artcam software) |

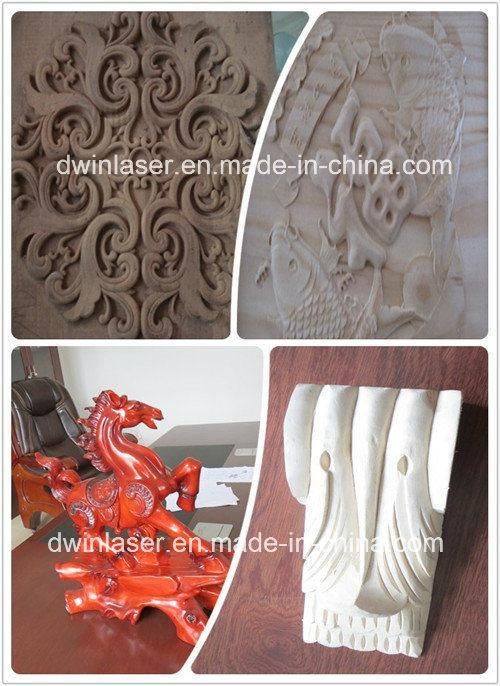

Samples

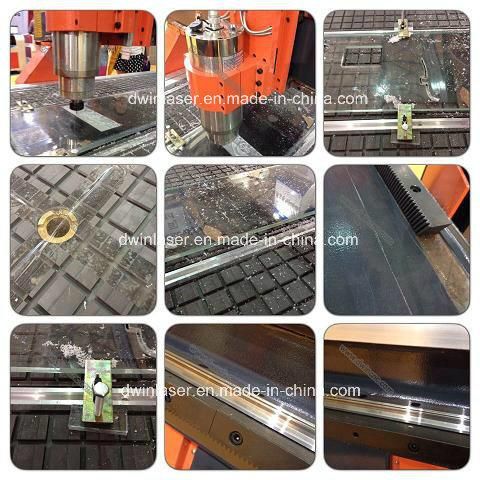

Machine details
Company information
