• Model NO.：DW1325
• Customized：Customized
• Condition：New
• Color：Make The Machine Color as Customers Requirement
• Machine Type：Woodworking CNC Router
• Spindle Power：3kw,4.5kw,5.5kw
• Rail：Hiwin Square Rail
• Working Area：1300X2500X200mm
• Table：Vacuum Table
• Cooling System：Watercooling,Aircooling
• Tranmission：Ball Screw
• Control System：Nc Studio ,DSP
• Software：Types3
• Warranty：12 Months
• Transport Package：Playwood Box
• Specification：1300x2500mm
• Trademark：DWIN
• Origin：Jinan City Shandong Province China
• HS Code：8465990000
• Production Capacity：100set,Month

Type

Woodworking cnc router

Model

DW-1325  cnc router

Working area

1325X2500mm

Table size

1440X3000mm

Table structure

T-slot table (vacuum optional)

Working accuracy

0.05mm

Repositioning accuracy

0.05mm

Transmission

X and Y by rack and pinion, and Z by screw

Max. No-load speed

17m/min

Max. Working speed

12m/min

Spindle power

3.0KW/4.5KW/5.5KW

Spindle speed

0-24000RPM

Power supply

AC220V/50-60Hz

Command

G code/mmg/plt/

Controlling system

Syntec system/ DSP

Dimension

1700*3100*1500mm

Total weight

Approx. 2000kg

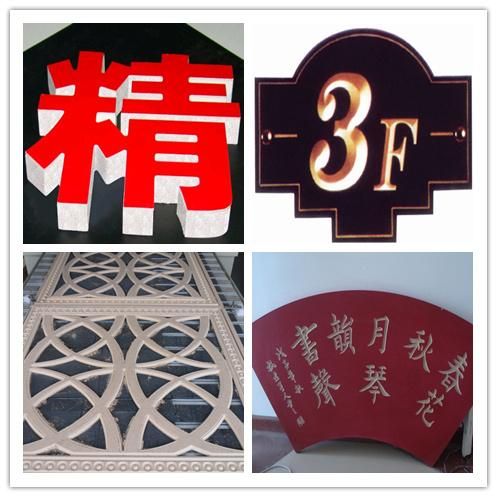

Samples :


Warranty :


1) 18 month warranty

2) Free training to make sure you master the operating of cnc router (on internet or by
telephone)

3) 24-hour technical supporton Internet or by Telephone, free instructions and problem
solving

4) Video CD for machine using and maintaining
