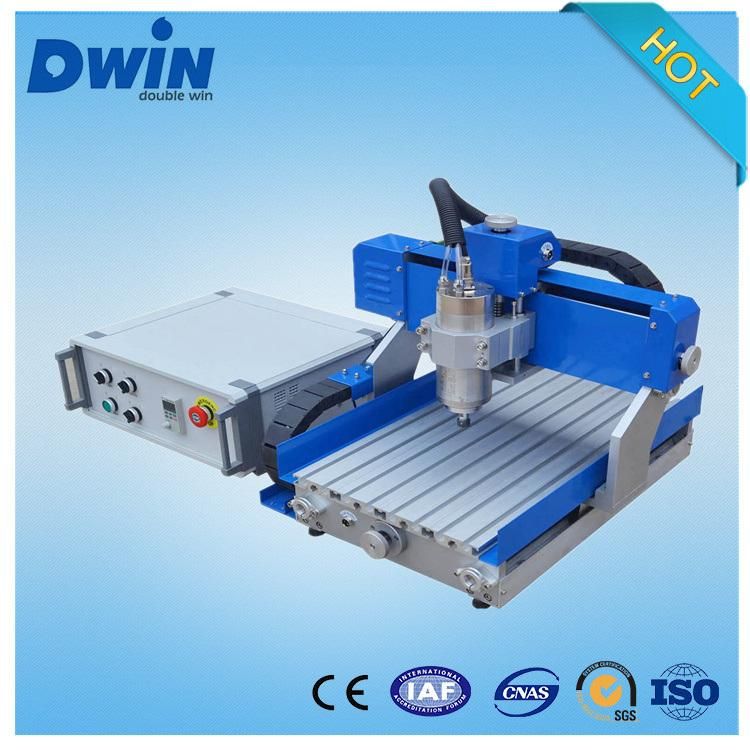

Hot Sale Mini Desktop CNC Router Hobby (DW3030)
Jinan Dwin Technology Co., Ltd.- Type：Mini CNC Router
- Spindle Layout：Vertical
- Spindle Number：Single-Spindle
- Feed Mode：Manual
- Controlling Mode：CNC
- Certification：CE, FDA
Base Info
- Model NO.：DW3030
- Customized：Customized
- Condition：New
- Color：Customized
- Work Dimensions：300mm*300mm *60mm
- Body Dimensions：600mm*600mm*600mm
- Max.Speed：4200mm,Min
- Working Speed：0 - 3000mm,Min
- Mechanical Precision：0.01mm
- Software：Type 3 Software, Artcut Software, Artcam Software
- Driver Type：Stepper Motor
- Spindle Speed：0 - 24000rpm
- Spindle Power：1.2kw Variable Speed, Water Cooled Motor
- Command：G Code, U00, Mmg, Plt
- Transport Package：Playwood Box
- Specification：CE, FDA, SGS
- Trademark：DWIN
- Origin：Jinan City Shandong Province China
- HS Code：8465990000
- Production Capacity：50 Set,Month
Description
Basic Info.
Model NO. DW3030 Customized Customized Condition New Color Customized Work Dimensions 300mm*300mm *60mm Body Dimensions 600mm*600mm*600mm Max.Speed 4200mm/Min Working Speed 0 - 3000mm/Min Mechanical Precision 0.01mm Software Type 3 Software, Artcut Software, Artcam Software Driver Type Stepper Motor Spindle Speed 0 - 24000rpm Spindle Power 1.2kw Variable Speed, Water Cooled Motor Command G Code, U00, Mmg, Plt Transport Package Playwood Box Specification CE, FDA, SGS Trademark DWIN Origin Jinan City Shandong Province China HS Code 8465990000 Production Capacity 50 Set/MonthProduct Description
Hot Sale Mini Desktop CNC Router Hobby (DW3030)
Features:
1.The machine adopts international advanced accurate guide rail,slide pre-tight installment (guaranteed no space is between the slides) and German original ball screw to realize steady movement ,high precision and small vibration.
2.March 3 control system that adopted by the machine has the advantages of break point and break power continue engraving,assisned G code engraving ,etc.(The DSP handle operation system which enables the machine work without the computer can be choosen .)
Applicable materials:
PVC board,ABS, double-color board,acrylic,MDF,stainless steel,copper,alumnium, zinc etc materials. Technical parameters:
| Machine body: | DW3030 Whole cast iron |
| Work dimensions: | 300 x 300 x 60mm |
| Body dimensions: | 600 x 600 x 600mm |
| Z-axis working area: | 60mm |
| Max. Feeding height: | 60mm |
| Cut thickness of material: | <20mm |
| Max.Speed: | 4200mm/min |
| Working speed: | 0 - 3000mm/min |
| Mechanical precision: | 0.01mm |
| Software: | Type 3 software, Artcut software, Artcam software |
| Max. Power consumption: | 900W |
| Power supply : | AC 220/50Hz |
| Driver type: | Stepper motor |
| Memory: | 1MB |
| Spindle: | 1.2KW variable speed, water cooled motor |
| Spindle speed: | 0 - 24000RPM |
| Blade diameter: | 1 - 6m |
| Control system: | Artcut or Wei hong (NCSTUDIO) or DSP (USB interface) |
| Command: | G code, u00, mmg, plt |
| Interface: | RS232 |
Samples:
