Woodworking 50t 80t 100t Automatic Loading and Unloading Cold Press Machine
Qingdao Zhongding Machinery Co., Ltd.- Work Forms：Hydraulic Pressure
- Processing Technics：Cold Press
- Structure：Frame Type
- Pressing Shape：Flat Press
- Platen Surface Pressure：Low Pressure
- Pressing Layer：Single Layer
Base Info
- Model NO.：MJ50B
- Work Mode：Continuous
- Controlling Mode：Artificial
- Automatic Grade：Semiautomatic
- Certification：CE, ISO
- Transport Package：Plywood Case
- Specification：3500*1800*1600mm
- Trademark：QDZD
- Origin：Qingdao
- HS Code：84659900
- Production Capacity：200 Set
Description
Basic Info.
Model NO. MJ50B Work Mode Continuous Controlling Mode Artificial Automatic Grade Semiautomatic Certification CE, ISO Transport Package Plywood Case Specification 3500*1800*1600mm Trademark QDZD Origin Qingdao HS Code 84659900 Production Capacity 200 SetProduct Description

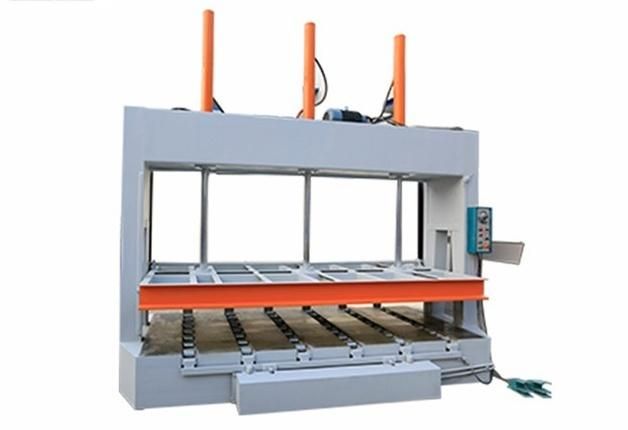

Woodworking 50T 80T 100T Automatic Loading and Unloading Cold Press MachineMJ50B Cold Press Machine
Specification:
| Max. pressure | 50 T |
| Dimension of the platen | 1300*1250 mm |
| Working speed | 180 mm/min |
| Total power | 5.5 kw |
| Overall dimension | 3500*1800*1600 mm |
| Net weight | 2900 kg |
| Stroke | 1300 mm |
Advantage:
-There are six roller on work table which are designed to feed in/out the workpiece easily.
-The press machine works under hydraulic system efficiently and steadily.

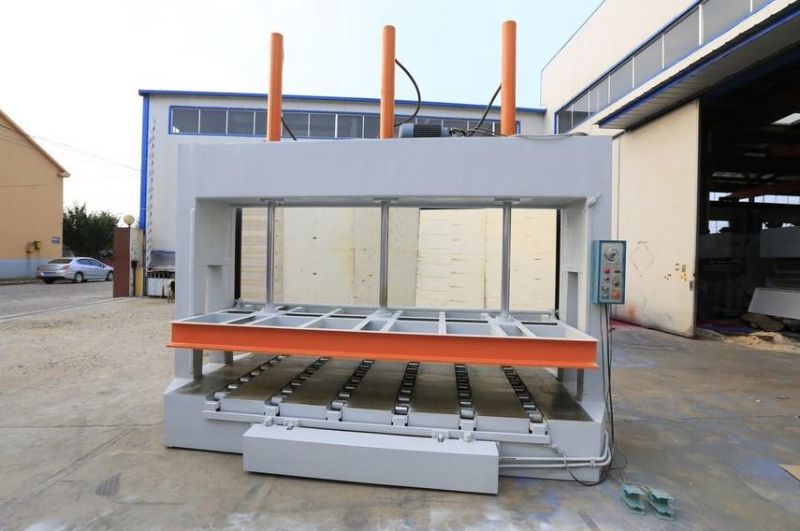

Product details:
