• Model NO.：MM5813R-R
• Color：White
• Transport Package：Plastic
• Specification：2990*3400*3000mm
• Trademark：HZH
• Origin：Qingdao
• HS Code：84659600
• Production Capacity：30sets,Month

Basic Info.

Model NO. MM5813R-R Color White Transport Package Plastic Specification 2990*3400*3000mm Trademark HZH Origin Qingdao HS Code 84659600 Production Capacity 30sets/Month

Product Description

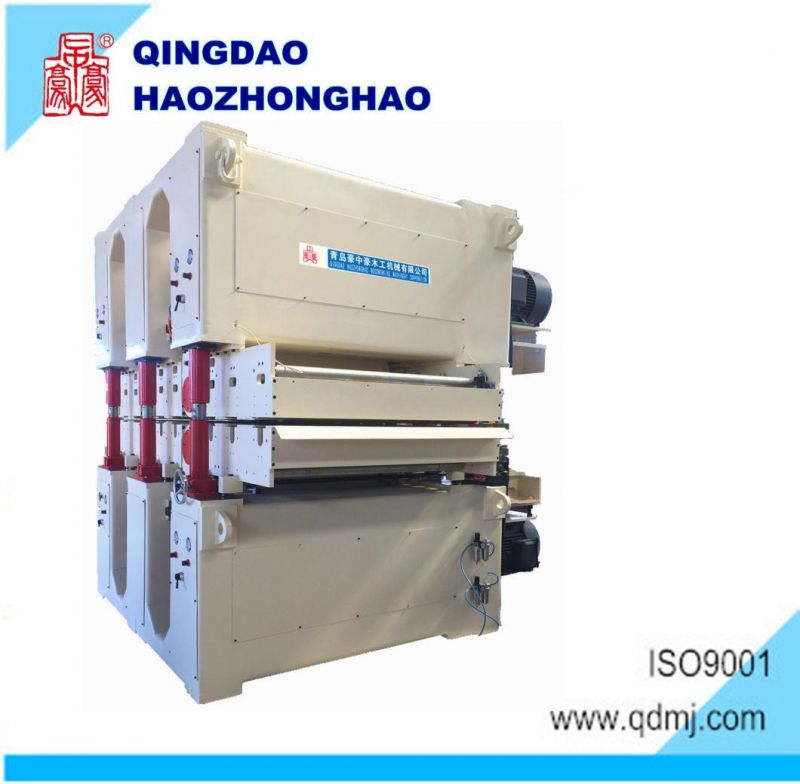

We supply high quality Woodworking Belt Sander MM5813R-R

Product Application

The double--side calibrating sanding machine series is unlimited by the original thickness tolerance.It is significant for the woodworking machinery to calibrate the wood--based panel and get the required thickness and precision through double--side sanding.high--precision(thickness tolerance with up or down 0.08mm after double-side sanding),top--quality,high efficiency(complete calibrating and polishing single--side or double--side of panel only once)are its advantage.it is mainly applied in calibrating and fine-sanding particleboard,block board,MDF,high-pressure overlaying board,multi-layer,cement particleboard,medium or high-density calcium silicate board and solid wood etc
It is unlimited by the original thickness tolerance. It is significant for the woodworking machinery to calibrate the wood-based panel and get the required thickness and precision through double-side sanding.
High-precision (thickness tolerance with ±0.08mm after double-side sanding), top-quality, high efficiency (complete calibrating and polishing single-side or double-side of panel only once) are its advantage.
Standard sanding roller is steel, can change to rubber roller according to your requirement

MM5813R-R front and rear unit are calibration sanding roller


Model	MM5813R-R
Sanding units	4
Working width	≤1300mm
Working thickness	≤120mm
Working length	≥900mm
Working precision	±0.08mm
Sandpaper size	1350*2800mm
Speed of sandpaper	25m/s
Feeding speed	6-30m/min
Front unit Roller diameter	Φ320mm
Rear unit Roller diameter	Φ320mm
front unit motor power	75Kw*2
rear unit motor power	55Kw*2
Feeding motor power	15kw
Lifting motor power	5.5kw
Brush roller motor	0.75kw*2
Working air pressure	0.6Mpa
Volume of dust-collecting	56000m³/h
Speed of dust-collector	≥25m/s
Weight	25T
Dimension	3420x3520x3213mm

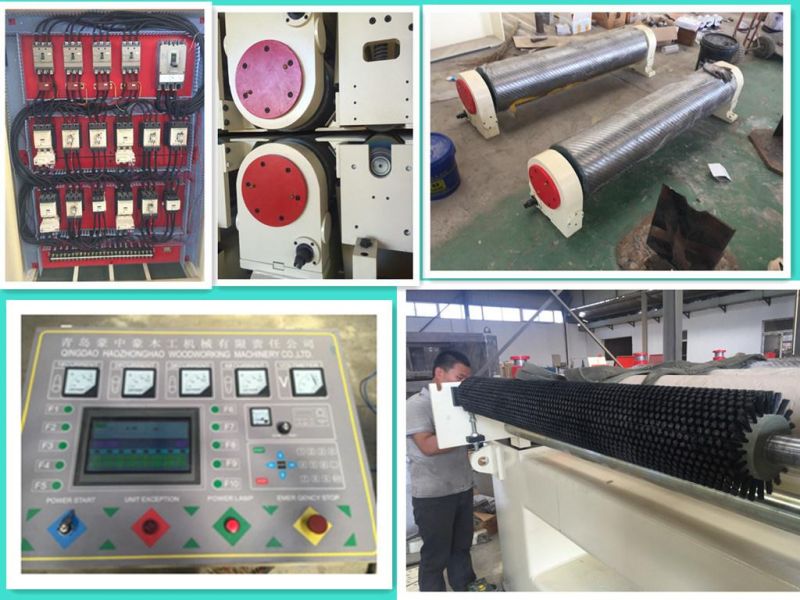

Details Image


Packing&Delivery
Packaging:The normal package is PLASTIC FILM also we can packing with your requirements  Delivery:About 30 days after receive the down payment delivery

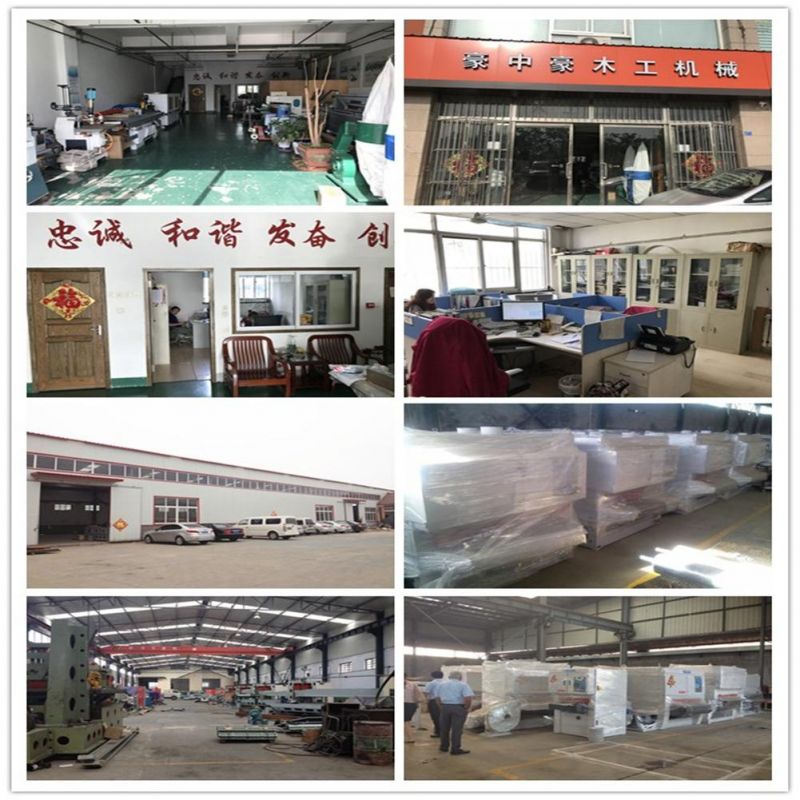

Our company&factory


Our Certifications



RFQ
What is the Warranty of machine?
Machine supplied quality guarantee period: one year for mechanical parts and three months for electrical parts. Warranty is counting from the date of B/L.

Why choose HAOZHONGHAO?
1,Professional: We have more than ten years experiences in exporting high quality woodworking machinery, especially Sanding Machine, Panel Saw, Veneer Slicer and Grinder.
2,Excellent: Established in 1958, ISO9001 certificated, CE certificate
3,Economial: We offer the good price with great quality because we do high-volume production manufacturer.
4 Location: One hour reach Qingdao sea port
