• Model NO.：FM1325
• Customized：Customized
• Condition：New
• Color：Customized
• Working Area：1300*2500mm
• Xy Guide Rail：Square Rail
• Cutting Thickness：0.3-40mm
• Cutting Speed：0-8000mm,Min
• Guide：Taiwan Hiwin Linear Guide
• Transmission：Helical Rack and Pinion
• Control System：DSP,Nc Studio
• Motor：Stepper, Servo Optional
• Drive：Leadshine Drive, Servo Optional
• Spindle：Water Cooled Spindle
• Transport Package：Plywood
• Specification：CE, SGS, ISO
• Trademark：FIRMCNC
• Origin：Jinan, China
• HS Code：8465990000
• Production Capacity：30 Sets, Month

Basic Info.

Model NO. FM1325 Customized Customized Condition New Color Customized Working Area 1300*2500mm Xy Guide Rail Square Rail Cutting Thickness 0.3-40mm Cutting Speed 0-8000mm/Min Guide Taiwan Hiwin Linear Guide Transmission Helical Rack and Pinion Control System DSP/Nc Studio Motor Stepper/ Servo Optional Drive Leadshine Drive/ Servo Optional Spindle Water Cooled Spindle Transport Package Plywood Specification CE, SGS, ISO Trademark FIRMCNC Origin Jinan, China HS Code 8465990000 Production Capacity 30 Sets/ Month

Product Description

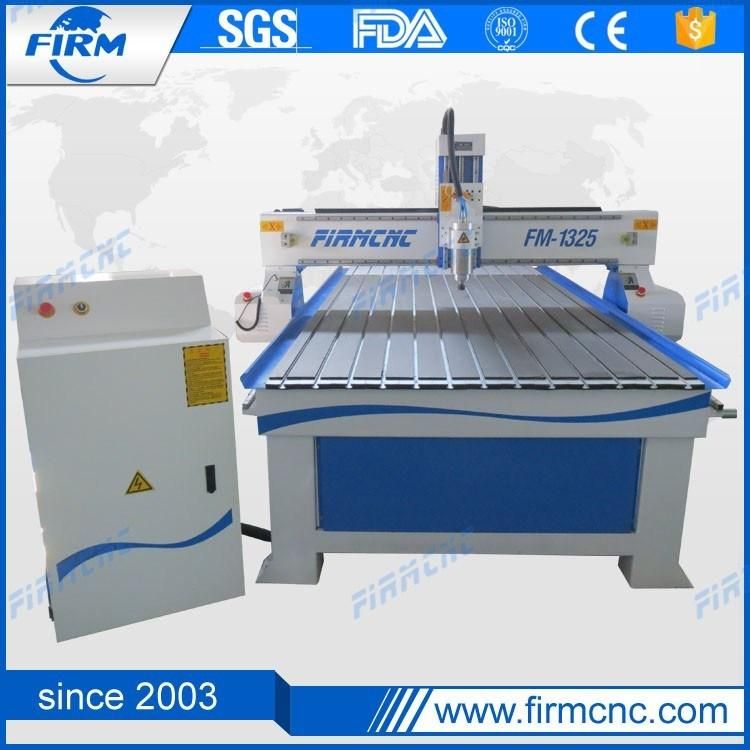

FM1325 Woodworking CNC Engraving Craving Machine

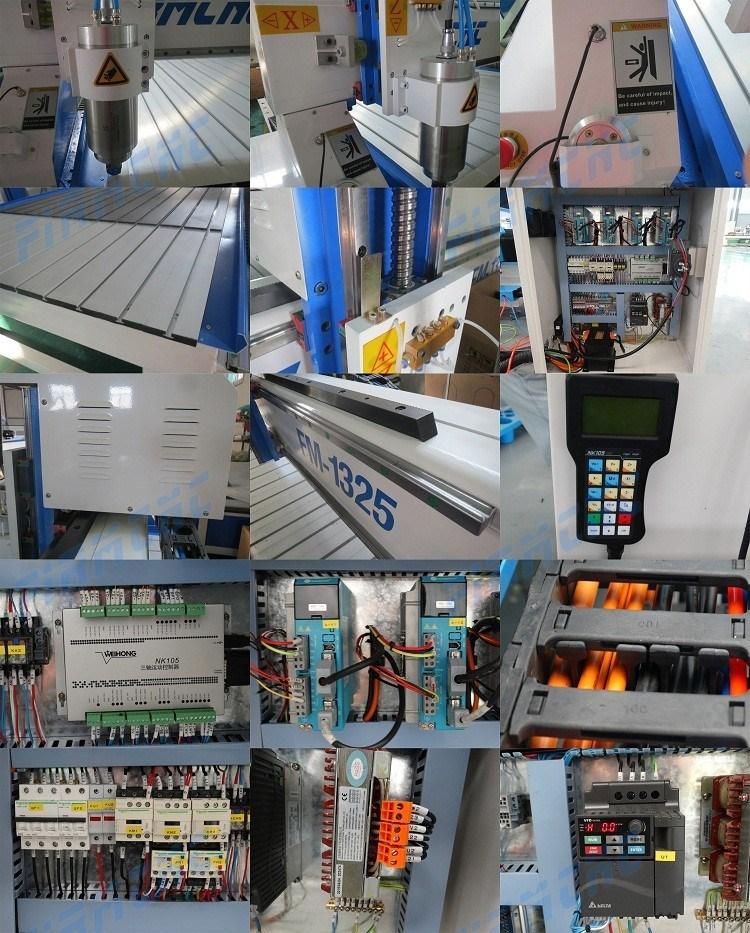

The characteristics of this CNC router
1. High speed, high torque, high precision 3.0Kw water cooling guarantees the high working speed and accuracy
2. Taiwan Hiwin square rails guarantees the accuracy and strength of the machine.
3. Import servo motor adopt the current control system save the power consumption.
4. DSP control system, no need computer.
5. The key component parts all adopts casting tempering finish machining technology, ensures stiffness and accuracy.
6. It has the break-point memory points for 10 pcs, reducing materials waste.
7. Iron cast wholly frame, double-screw auto eliminating clearance ball screw, floor-type liner guide transmission.
8. Well designed dust and wanter proof device ensure the machine easy maintenance.
9. CAD/CAM designing software like Type 3/ArtCAM/Castmate /wentai and so on.
10. XYZ all apply imported screw, high precision gear frame and linear square guide, ensure the high accuracy.
11. The professional mechanical design, scientific structure and generous appearance.


Samples

Technical specification

Name	Specification
Machine Structure	Welded
X Y Guide Rail	Square Rail
X Y Transmission	Imported Rack gears
XYZ Axis Driver	Servo Motor(or Leadshine Stepper Motor)
Control System	Start control system(or DSP)
Working Dictate	G Code
Working Area(X*Y)	1300×2500mm
Cutting thickness	0.3-40mm
Cutting Speed	0-8000mm/min
Cutting precision	≤0.05mm
Repeat precision	≤0.05mm
Plasma Generator	American Hypertherm(Domestic LGK)
Document Transmission Form	USB Interface
Working Form	Untouched Arc Striking
Working Voltage	3-Phase 380V
G.W.	980KGS
Packing	Wooden case
Remarks	Configured with Taiwan servo speed reducing device

Application
1.Wood working :Solid wave board process,door of cabinet,wooden door,artistic wooden door ,no-paint door,avoid wind,process of the artistic window,
shoes cleaning machine,the cabinet of the playing machine and the board, mahjong table,computer table .
2 Advertising:Advertising board,Label design,Acrylic cutting,model, of the multi material decoration products.
3.Model industry:It can engrave on the steal materials such as copper, aluminum ,iron etc and  non-mental materials such as man-made marble,
sand, plastic board PVC materials, wood board etc.
4.Other field:It can engrave many image, embossment,and widely used in artistic industry.

Package:
1) Foam and wrapping film on the surface of the machine inside. Rain-proof, Dust proof.
2)Standard export plywood case. Upwards, moistureproof shipping marks. Safety guaranteed.
3) fumigation-free
4)With shipping mark if you like.
5)Outside: Marked packing size, model, weight and other information

After sale service
1. 24 hour Technical support by phone, e-mail or MSN around the clock.
2. Friendly English version manual and operation video CD disk.
3.7-15 working days after down payment or full payment.
4. Machine will be adjusted before it is delivered; operation disk/CD was included.
5. Our technician can give you remote guide online (Skype or MSN) if you have any question.
6. Engineers available to service machinery overseas, seller and buyer discuss the charges.

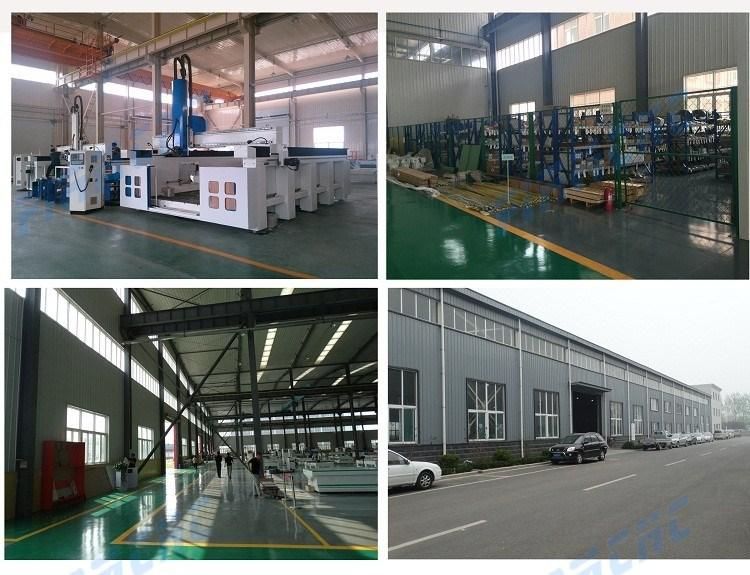

Company information:
FIRMCNC Group located in Jinan,Shandong PR, Founded in 2003. Leader of laser marking machine appliance manufacture.
We are an all-round enterprice,which is comprehensive in R&D, manufacture, and sales on laser marking machine appliances.


JINAN FIRM CNC EQUIPMENT CO.,LTD
A-505Jingliu Road, Huaiyin District, Jinan City, Shandong Province, China.
Tel: 0086-0531-69986330        Fax : 0086-0531-69986330
Website: http://firmcnc.en.made-in-china.com
firmcnc.en.made-in-china.com
Cell phone: +86-13954117091
