• Model NO.：ZDR-R1000
• Color：Customized
• Gross Weight：1800kg
• Sliding Table：European Style
• Voltage：220V 1phase , 380V 3phase (Optional)
• Shipping Port：Qingdao
• HS：846420900
• Size of Sanding Belt：1020*2020mm
• Working Air Pressure：0.55MPa
• Main Motor Power：20.25kw
• Feeding Speed：6-30m,Min
• Min. Working Length：350mm
• Max Working Width：1000mm
• Material Thickness：2.5-120mm
• Transport Package：Wooden Box
• Specification：1900*1400*2050mm
• Trademark：QDZD
• Origin：China
• HS Code：8465930000
• Production Capacity：500sets,Month

Basic Info.

Model NO. ZDR-R1000 Color Customized Gross Weight 1800kg Sliding Table European Style Voltage 220V 1phase / 380V 3phase (Optional) Shipping Port Qingdao HS 846420900 Size of Sanding Belt 1020*2020mm Working Air Pressure 0.55MPa Main Motor Power 20.25kw Feeding Speed 6-30m/Min Min. Working Length 350mm Max Working Width 1000mm Material Thickness 2.5-120mm Transport Package Wooden Box Specification 1900*1400*2050mm Trademark QDZD Origin China HS Code 8465930000 Production Capacity 500sets/Month

Product Description

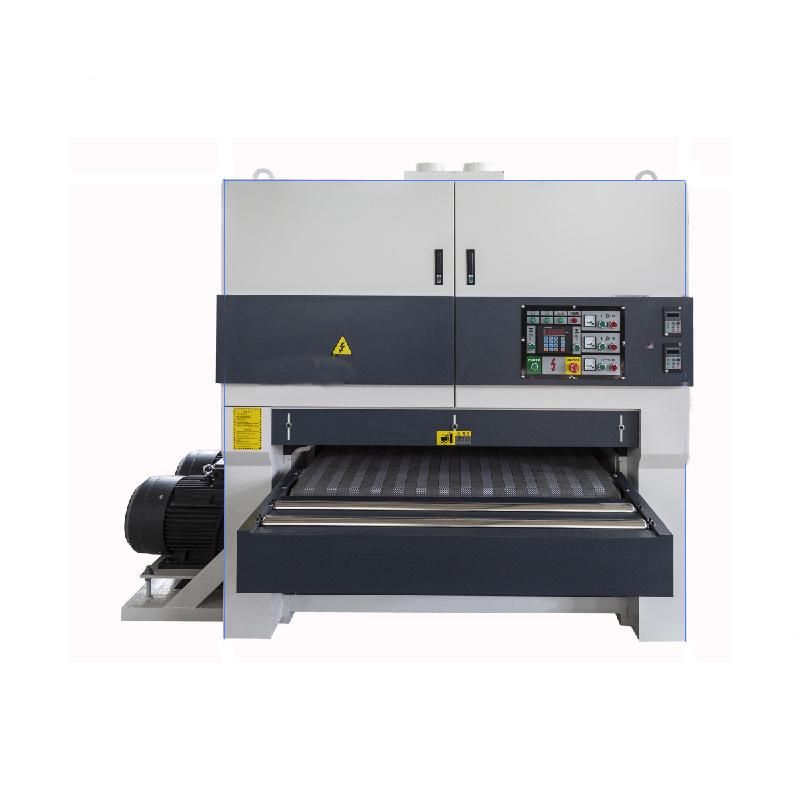

Lacquered Belt Sander Woodworking Machine for Woodworking


Technical Parameters

Model	ZDR-R630	ZDR-R1000	ZDR-R1300
Max working width	630mm	1000mm	1300mm
Material thickness	2.5-120mm	2.5-120mm(option 2.5-160mm)	2.5-120mm(option 2.5-160mm)
Min. Working length	350mm(option250mm)	350mm(option250mm)	350mm(option250mm)
Feeding speed	6-30m/min	6-30m/min	6-30m/min
Belt speed	Frequency control	Frequency control	Frequency control
Size of sanding belt	650*1900mm	1020*2020mm	1320*2020mm
Total power	16.87kw	20.25kw	26.37kw
Working air pressure	0.5mpa	0.55mpa	0.55mpa
Volume of dust collecting	5000m³/h	5000m³/h	5000m³/h
Speed of dust collecting	25-30m/s	25-30m/s	25-30m/s
Overall dimension (L*W*H)	1700*1100*2050mm	1900*1400*2050mm	2100*2450*2050mm
Weight	1300kg	1800kg	3200kg

Company Introduction

        Qingdao Zhongding Machinery Co., Ltd is a leading company of specializing in manufacturing and exporting woodworking machine for more than 20 years. We perform a variety of services to not only supply our clients with top quality woodworking machinery but also adequate maintenance, spare parts and technical advice.
        Our products mainly include Precise Panel Saw, Edge Banding Machine, Multiple Drilling Machine, Press Machine etc., which have been exported to lots of countries and regions, such as Europe, Russia, Southeast Asia, Middle East, North America, and Australia.
       We have established complete sales system.Our company has got ISO9001 international system certificate and CE security certificate.













The Workshop

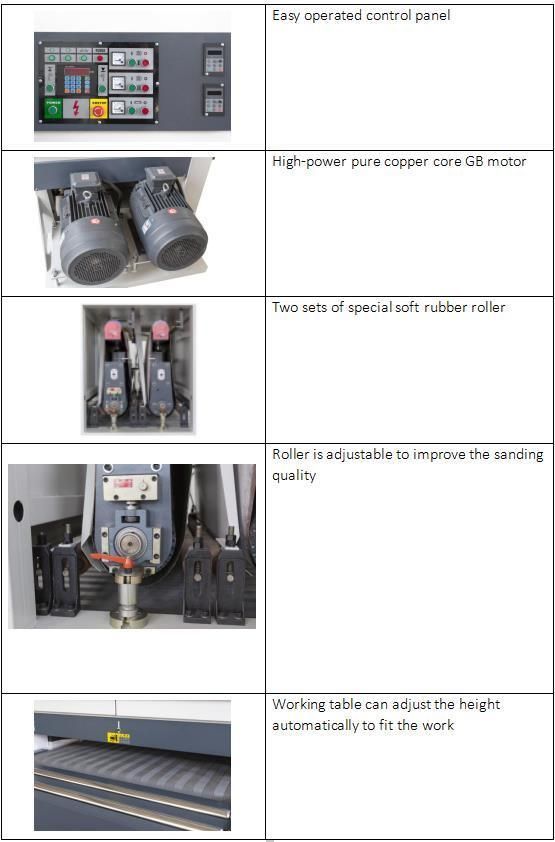

 Product Details:


Customer Visiting:













Our Certificate:


The package:
