• Model NO.：ZDV7
• Certification：CE, ISO
• Customized：Customized
• Condition：New
• Color：Customized
• Gross Weight：850kg
• Sliding Table：European Style
• Voltage：220V 1phase , 380V 3phase (Optional)
• Shipping Port：Qingdao
• HS：84659100
• Transport Package：Wooden Box
• Specification：3250*3150*900mm
• Trademark：QDZD
• Origin：China
• HS Code：84659100
• Production Capacity：500sets,Month

Basic Info.

Model NO. ZDV7 Certification CE, ISO Customized Customized Condition New Color Customized Gross Weight 850kg Sliding Table European Style Voltage 220V 1phase / 380V 3phase (Optional) Shipping Port Qingdao HS 84659100 Transport Package Wooden Box Specification 3250*3150*900mm Trademark QDZD Origin China HS Code 84659100 Production Capacity 500sets/Month

Product Description

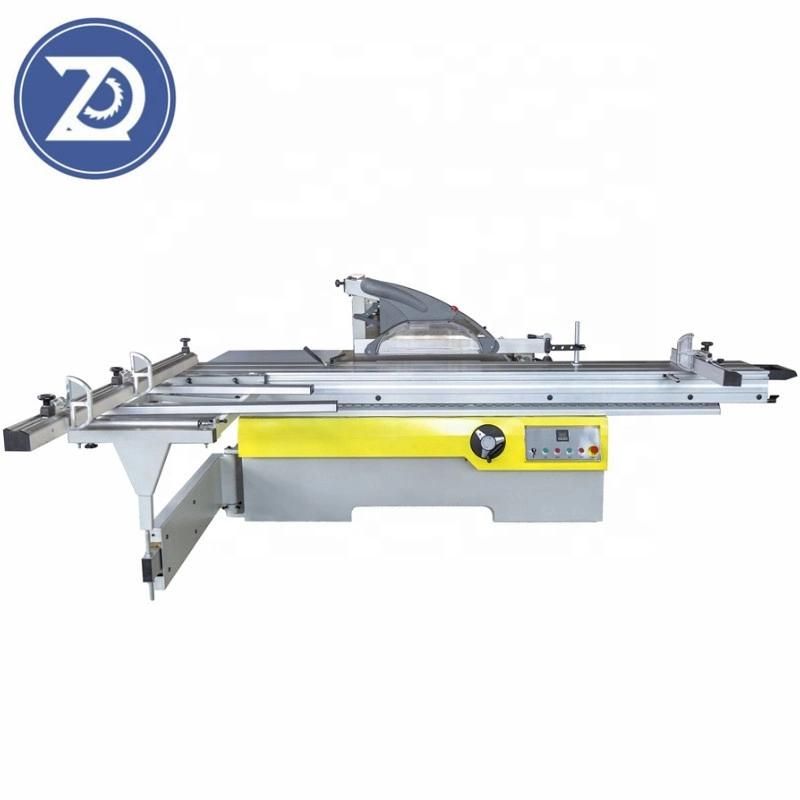

Panel Cutting Machine Panel Saw With Scoring Blade




Technical Parameters


Gross cut capacity	3200mm
width of cut between the saw blade and rip fence	1250mm
Tilting saw group	0-45
Diameter of main saw blade	300mm
Diameter of scoring saw blade	120mm
Max cutting height 90°/ 45°	80/55mm
Speed of main saw spindle	4000/6000 rpm
Speed of scoring saw spindle	8000 rpm
Main saw motor power	5.5kw
Scoring saw motor power	1.1kw
Main spindle diamater	30mm
Scoring saw spindle diameter	20mm
Gross weight	850kgs
Overall dimension	3250*3150*900mm

Company Introduction

        Qingdao Zhongding Machinery Co., Ltd is a leading company of specializing in manufacturing and exporting woodworking machine for more than 20 years. We perform a variety of services to not only supply our clients with top quality woodworking machinery but also adequate maintenance, spare parts and technical advice.
        Our products mainly include Precise Panel Saw, Edge Banding Machine, Multiple Drilling Machine, Press Machine etc., which have been exported to lots of countries and regions, such as Europe, Russia, Southeast Asia, Middle East, North America, and Australia.
       We have established complete sales system.Our company has got ISO9001 international system certificate and CE security certificate.



The Workshop

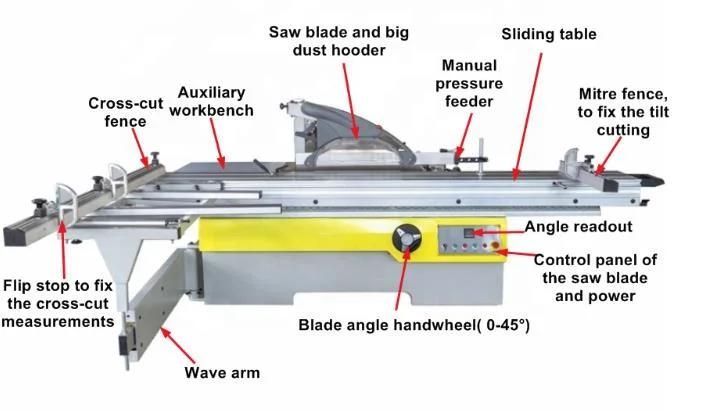

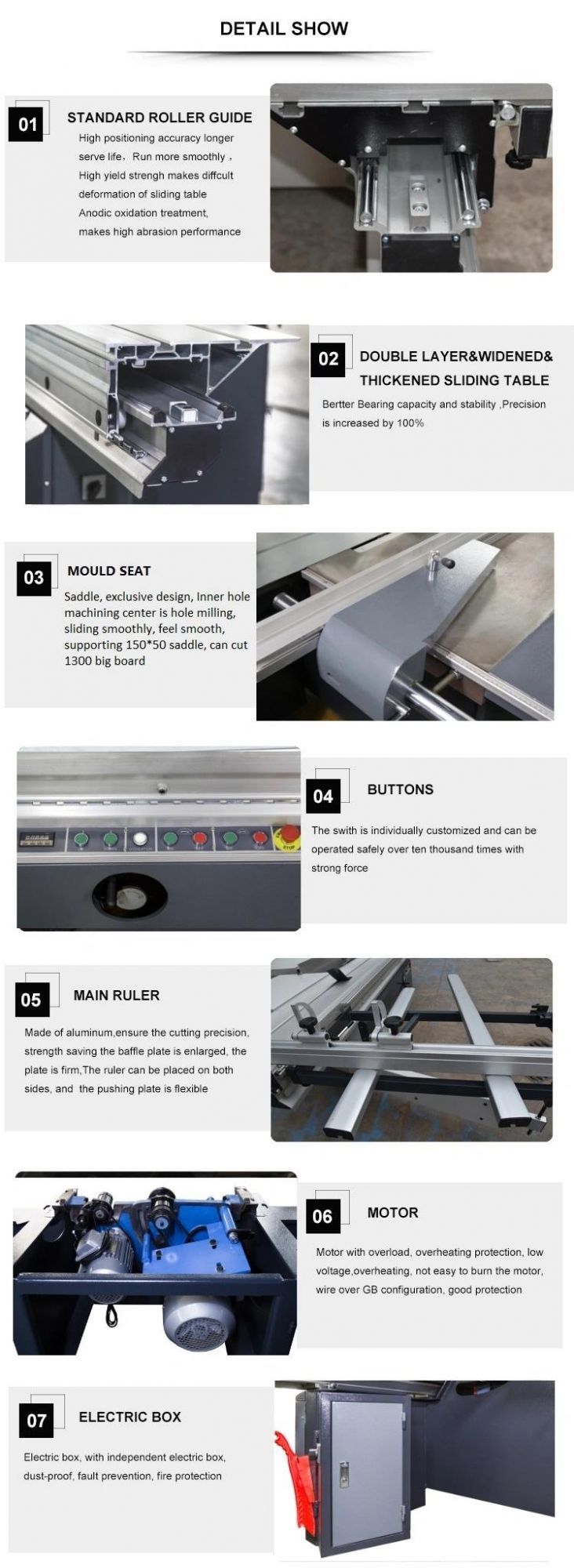

 Product Details:

Optional Parts:




Feature:

1,Apply to processing all kinds of density boards,shaving boards,artificial boards,ABS board, PVC board, organic glass plates and solid wood and others with wood structure and similar hardness.

2,Moveable table guide track is chromium steel bar structure, exact and durable

3,The sliding table is made of high strength extruded aluminum alloy, and it is high in strength and won't bent

4,With oxidation treatment, the sliding table surface is beautiful and durable

5,The body is welded with heavy-duty steel and with special heat treatment, better stability and lower noise


Customer Visiting:



Our Certificate:

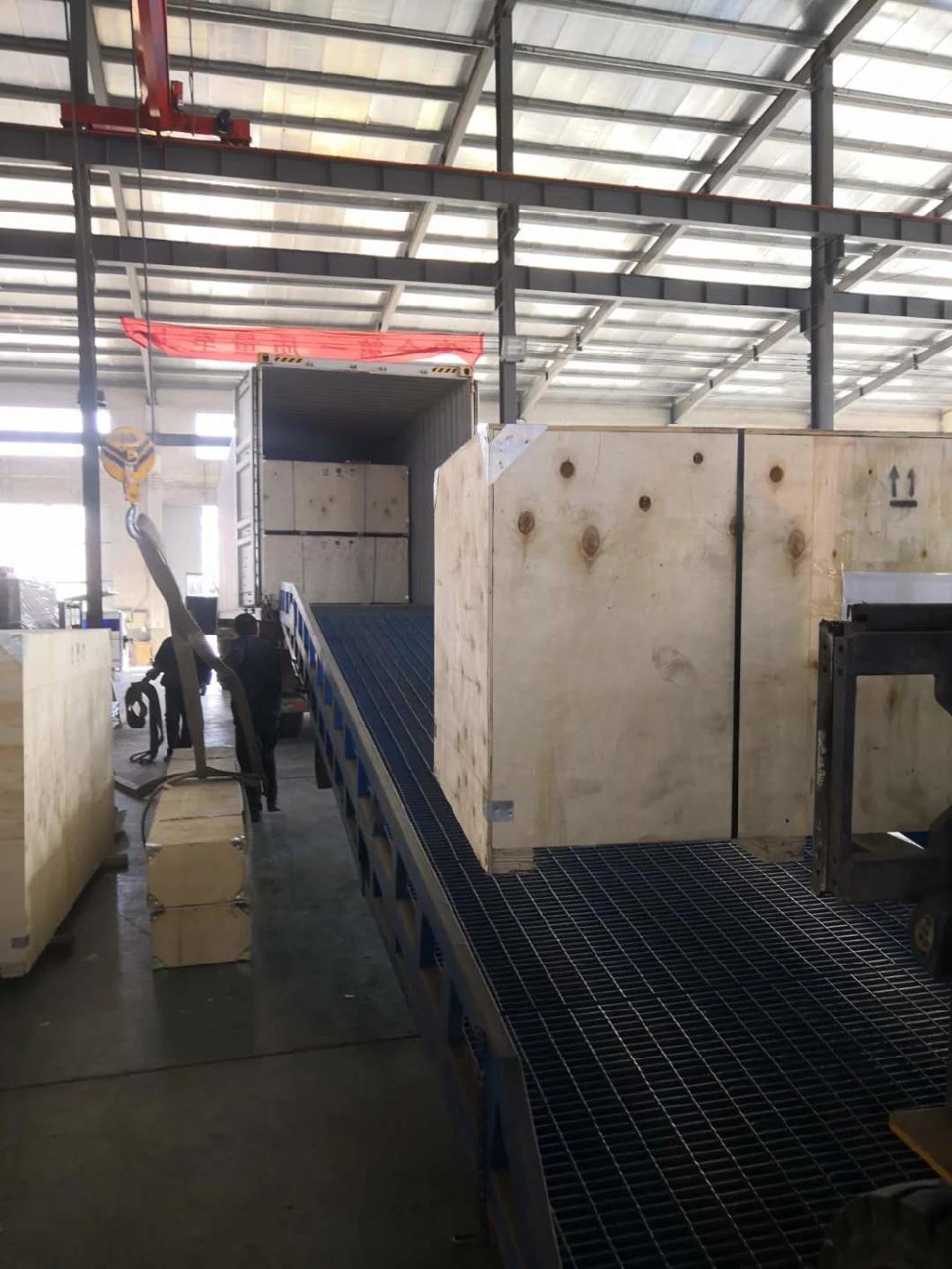

The package:
