Woodworking Machine Wide Belt Sanding Planer and Calibration Sanders Machine

QINGDAO SOSN MACHINERY CO., LTD.
  • Warranty:1
  • Type:Belt Wood Sander
  • Automatic Grade:Semiautomatic
  • Variable Speed:Variable Speed
  • Certification:CE, ISO
  • Customized:Customized

Base Info

  • Model NO.:B-R-RP1300
  • Condition:New
  • Color:Customized
  • After-sales Service:1
  • Working Width:1300mm
  • Min Working Length:500mm
  • Working Thickness:3-110mm
  • Conveyor Speed:6-30m,Min
  • Total Motor Power:80.05kw
  • Application:Wood Door
  • Transport Package:Strong Stretch Film
  • Specification:4800KG
  • Trademark:SOSN
  • Origin:China
  • HS Code:846593000
  • Production Capacity:150 Sets Per Month

Description

Basic Info.

Model NO. B-R-RP1300 Condition New Color Customized After-sales Service 1 Working Width 1300mm Min Working Length 500mm Working Thickness 3-110mm Conveyor Speed 6-30m/Min Total Motor Power 80.05kw Application Wood Door Transport Package Strong Stretch Film Specification 4800KG Trademark SOSN Origin China HS Code 846593000 Production Capacity 150 Sets Per Month

Product Description

Woodworking Machine Wide Belt Sanding Planer and Calibration Sanders Machine
Heavy duty planer and sanding machine planer sander machine for MDF wood

Planer and sander machine is mainly used for solid wood board, panel, finger joined panel, door, flooring etc, with advanced technology, high precision, reasonable structure and easy operation.

Woodworking Machine Wide Belt Sanding Planer and Calibration Sanders Machine

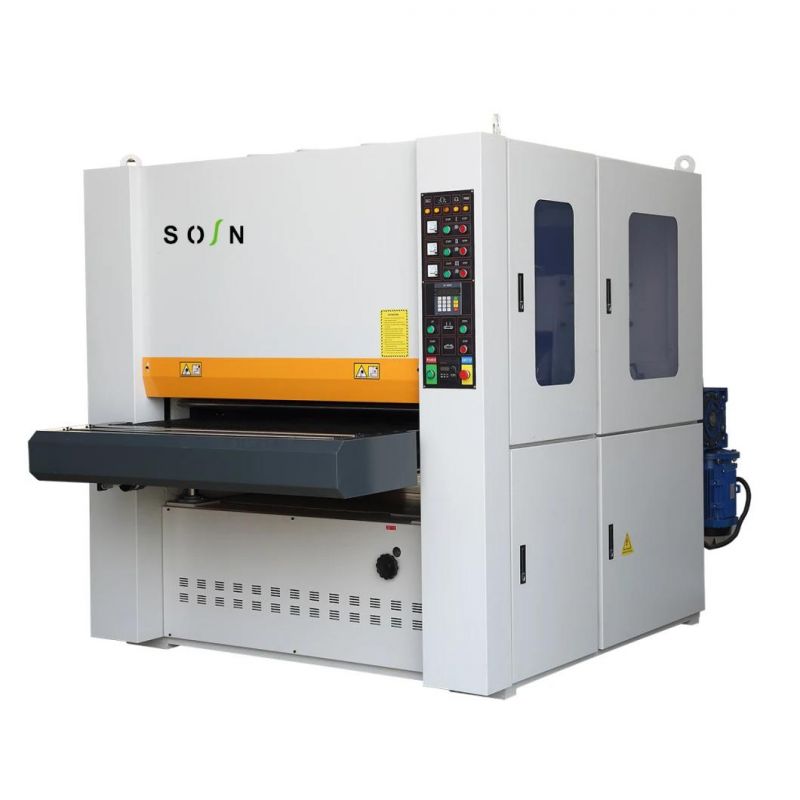

1). Main pictures
Woodworking Machine Wide Belt Sanding Planer and Calibration Sanders Machine


2).Features
--Imported planer roll, will be thick roll and soft roll (or a combination of sand frame), and then after the first planer sand polishing process.
--With floating pressure boots, short sand material available.
--Casting stop device is used to avoid rebounding and hurting the plate during processing.
--Conveyor belt drive adopts variable-frequency helical gear worm reducer, more stable and reliable.

3). Main parameter
Working  width1300mm
Min.Working  length500mm
Working  thickness3-110mm
Feeding  speed5-25m/min
Total  motor  power80.05kw
Motor  for  first  unit22kw
Motor for second unit30kw
Motor for third unit22kw
Feeding motor5.5kw
Lifting motor0.55kw
Abrasive belt size1330*2200mm
Working air pressure 0.6MPa
Volume of dust collection device12000m3/h
Overall dimensions3000*2000*2050mm
Net weight4800kg

We also have 630mm, 1000mm, 1300mm working width planer sanding machine for your choice.

4) Details

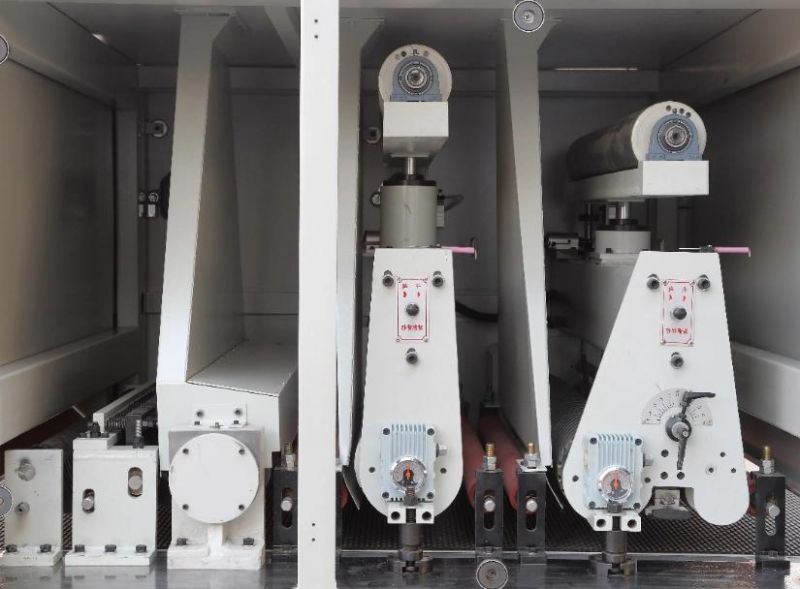

Inside structure of  the sanding machine: one planer roller + one sanding roller + one sanding roller + one polishing pad.

Woodworking Machine Wide Belt Sanding Planer and Calibration Sanders Machine

 5).Machine at workshop.

Woodworking Machine Wide Belt Sanding Planer and Calibration Sanders Machine
Woodworking Machine Wide Belt Sanding Planer and Calibration Sanders Machine
Woodworking Machine Wide Belt Sanding Planer and Calibration Sanders Machine
Woodworking Machine Wide Belt Sanding Planer and Calibration Sanders Machine
Woodworking Machine Wide Belt Sanding Planer and Calibration Sanders MachineWoodworking Machine Wide Belt Sanding Planer and Calibration Sanders MachineWoodworking Machine Wide Belt Sanding Planer and Calibration Sanders Machine

No worry for any installation or operation of this sanding machine, we are here to help you.

Heavy duty frame, Unique internal structure, top-brand spare parts, professional installation workers, in time after sale service, this machine surely can highly improve your working efficiency!
