High Quality China 1325 Woodworking CNC Router with Cheap Price for Woodcarving
Jinan Blue Elephant CNC Machinery Co., Ltd.- Type：Engraving Router
- Spindle Layout：Spindle Over
- Spindle Number：Double-Spindle
- Feed Mode：Mechanical
- Controlling Mode：CNC
- Certification：CE, ISO, FDA
Base Info
- Model NO.：ELECNC-1325
- Customized：Customized
- Condition：New
- Color：Customized
- Product Name：New Type CNC Router Engraver Milling and Drilling
- X,Y,Z Working Area：1300X2500X200mm
- Spindle：Water Cooling Spindle
- Control System：DSP Control System(Options: Ncstudio,Mach3 PC Soft
- X, Y Structure：Helical Rack, Hiwin Rail Linear Bearings
- Z Structure：Hiwin Rail Linear Bearings and Ball Screw
- Drive Motors：Stepper System
- Frame：Welded Structure
- Command Code：G Code
- Table Surface：Vacuum and T-Slot Table
- Transport Package：Standard Export Wooden Case
- Specification：CE, FDA, ISO, SGS
- Trademark：BLUE ELEPHANT
- Origin：Shandong, China
- Production Capacity：200 Sets Per Month
Description
1
X,Y,Z Working Area
1300x2500x200mm
2
X,Y,Z Traveling Positioning Accuracy
±0.03/300mm
3
X,Y,Z Repositioning Accuracy
±0.03mm
4
Table Surface
T-slot Table
5
Frame
Welded Structure
6
X, Y Structure
helical rack, Hiwin Rail Linear Bearings
7
Z Structure
Hiwin Rail Linear Bearings and Ball Screw
8
Max. Power Consumption
(Without Spindle) 2.5kw~3Kw
9
Max. Rapid Travel Rate
33000mm/min
10
Max. Working Speed
25000mm/min
11
Spindle Power
2.2KW water cooling spindle for both heads
12
Spindle Speed
0-24000RPM
13
Drive Motors
Stepper System
14
Working Voltage
AC380V V/50/60Hz,3PH (Option: 220V)
15
Command Language
G Code
16
Operating System
DSP control system(options: NCstudio/Mach3 PC Software)
17
Collet
ER20
18
X,Y Resolution
<0.01mm
19
Software Compatibility
Type3/UcancameV9 Software
20
Running Environment Temperature
0 - 45 Centigrade

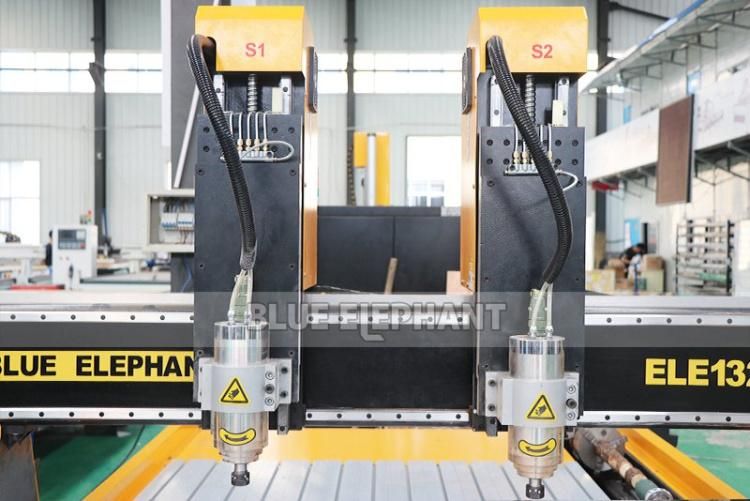

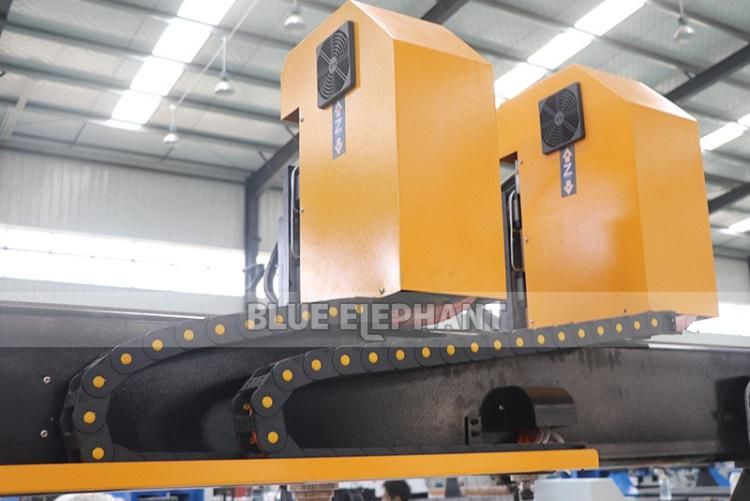

1325 Double head two spindles cnc router
Quality Control
1. Skilled and strict Quality Inspection Team is available during the material purchasing and production procedure.
2. All finished machine we shipped out are 100% strictly tested by our QC department and engineering department
After sales service
1.Within 7 days since your local customs clearance: if the cnc machine's any parts has any problems, we will change it free.
2.Exceed 7 days since your local customs clearance but within warranty period: if the cnc machine parts have any problems, we can change the old machine parts to new ones free, but you should pay all the shipping cost.
3.Exceed warranty period: if the cnc machine parts have any problems, we can offer new machine parts with cost price and you also should pay all the shipping cost.
4. We offer 24 hours technical support by call, email
5. Our technician can give you remote guide online(Skype or MSN) if you have any question
6.We can record videos of operating the cnc router machine
7. Free training course in our factory
8.Machine will be adjusted before it is delivered , operation disk/CD was included.
Our factory
Jinan Blue Elephent CNC Machine CO.,LTD is a professional CNC machinery manufacturer.
We can offer you advanced technology, high quality,reasonable price and perfect post-sales service.
we look to the world's first class quality standard as reference. We have always been devoted to the research and manufacture of many different models and types CNC Routers dedicated to woodworking and other applications.
