• Model NO.：ELECNC-2025
• Customized：Customized
• Condition：New
• Color：Customized
• Voltage：AC380V, 3pH, 50,60Hz
• Dimension(L*W*H)：5000*2800*2450mm
• Spindle Power：9kw Italy Hsd Atc Air Cooling Spindle
• Control System：Taiwan Syntec 4 Axis Control System
• Inverter：11kw Delta Inverter
• Table Surface：Vacuum and T-Slot Working Table
• Drive Motors：850W Yaskawa
• X, Y Structure：Gear and Rack Transmission, Taiwan Hiwin Linear Ra
• Z Structure：Taiwan Tbi Ball Screw, Taiwan Hiwin Linear Guide
• Transport Package：Standard Export Wooden Case
• Specification：CE, ISO, SGS
• Trademark：BLUE ELEPHANT
• Origin：Shandong, China
• Production Capacity：200 Sets Per Month

Basic Info.

Model NO. ELECNC-2025 Customized Customized Condition New Color Customized Voltage AC380V, 3pH, 50/60Hz Dimension(L*W*H) 5000*2800*2450mm Spindle Power 9kw Italy Hsd Atc Air Cooling Spindle Control System Taiwan Syntec 4 Axis Control System Inverter 11kw Delta Inverter Table Surface Vacuum and T-Slot Working Table Drive Motors 850W Yaskawa X, Y Structure Gear and Rack Transmission, Taiwan Hiwin Linear Ra Z Structure Taiwan Tbi Ball Screw, Taiwan Hiwin Linear Guide Transport Package Standard Export Wooden Case Specification CE, ISO, SGS Trademark BLUE ELEPHANT Origin Shandong, China Production Capacity 200 Sets Per Month

Product Description

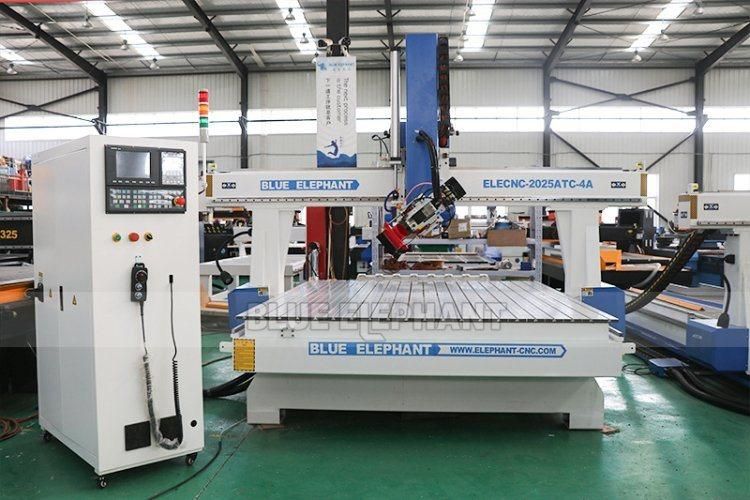

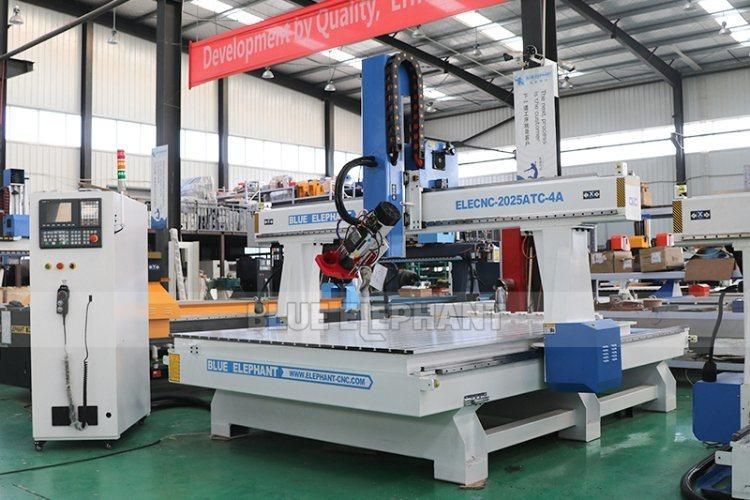

2025 ATC Manufacture cnc router high precision pcb drilling machine cheap cnc carving machine



Main feature

• Designed with linear type tool magazine, 8 tools can be changed automatically according to the various raw materials.
• The HQD air ATC cooling spindle of 2025 cnc engraving and cutting machine can swing ±90 degree to do 3d processing, realizing multi use woodworking.
• The 2025 cnc cutting machine is suitable for processing cabinet door, wooden door, solid wood furniture, panel wood furniture, wood carving horse head and some others.
• Support customized design.

Application

1. Advertisement: engraving and cutting of various labels and number plate, marble, etc for artistic effects on materials. Including marble, brass, steel, and other metallic material.
2. Crafts: engraving characters of any language and patterns on gifts and souvenirs, primitive processing and shaping of artistic crafts, and stiletto.
3. Moulding: engraving delicate letter and flower pattern, primitive and fine processing of the small mould.
4. Architectural models: engraving fine window, fencing and wall patterns, etc.
5. Seal: engraving seals and medal on materials such as buffalo horn, wood etc.
6. Label: engraving character, number, and other pattern on label for products and on product directly.
7. Wood processing: processing density board, stiletto for surfing board, processing of marbles, chair legs ,wood stairs and cabinets and furniture.

Technical parameter

Description	Parameter
Model	ELECNC-2025ATC-4A
X,Y,Z Working Area	2000*2500*500mm
Control system	Taiwan SYNTEC control system
Working Voltage	380V 3phase, 50Hz(Option)
Spindle	9kW  HQD Air ATC Cooling Spindle
INVERTER	11kw FULING INVERTER
Motor and driver	850W YASKAWA servo motor and 1kW YASKAWA driver, SHIMPO reducer
Gantry Structure	Gantry moving
Table Surface	T-slot+PVC working Table
Table structure	New type thicker and bigger heavy duty welded frame and gantry
X, Y, Z Transmission	Helical rack on X,Y axis and Taiwan TBI ball screw on Z axis
X,Y, Z Rail	ABBA 25# linear guide
Tool Sensor	Auto tool sensor calibration
Dust collector	3kW two bags dust collector

PS:All the working area and specifications can be customized according to your requests.

Our Factory
1.140: The company has more than 140 people on-site team to offer you with private customized services.

2.30: The company service department has more than 30 engineers standby to provide services after-sales, which including the remote service.

3.5300(80):Being exported to more than 80 countries in Europe and America; Providing services for more than 5,300 domestic and foreign manufacturers.

4.24:To establish a true partnership; Producing excellent machines are just the beginning. Providing 24-hour service is the foundation of our development. BLUE ELEPHANT understands you better.



Customer visiting

Packaging and shipping
1.Outside Package: Standard export wooden case.
2.Inner package: Strech film.
Dear friend, according to the regulations of Aliexpress, if we make deal oneline, we only can use the specified air freight, but CNC& Laser machines have motor(eletromagnetism), and big size package is not suitable for air shipping. We sent the machines including big size models to many specified sea port by shipping, such as Moscow, Belin, London, Sinagore, Ashdod etc.
Before you make order, let's talk more about details please.
