• Model NO.：BY814X8,5-I
• Work Mode：Continuous
• Controlling Mode：CNC
• Automatic Grade：Automatic
• Certification：CE, ISO, FDA
• Voltage：380V,50Hz
• Pressure：400-600t
• Position of Cylinder：Upside,Downside
• Thickness of Steel Plate：40mm
• Stroke of Cylinder：1000mm
• Thickness of Acctive Crossbeam：22mm
• Transport Package：Container
• Specification：400T, 500T, 600T
• Trademark：METRO
• Origin：China
• HS Code：8465990000
• Production Capacity：50set,Month

ModelBY814X8/5-INorminal Gross Pressure5000KNDirection of feeding plateHorizontalMax opening1200mmDiameter of cylinder360mm(Wuxi)Numbers of cylinder2pcsSide helpful cylinder63mmX2Pressurization≤25MPAStroke of cylinder1000mmPosition of cylinderUpsidePressure of unit plate blank15kgf/cm2Dimensions of the board2560X1280mmAllowed pressure≤25MPANet weight19000kgOverall dimensionsAbout 3600X1380X3750mmControl methodAutomatic pumping stationThickness of upper and lower crossbeams900mmThickness of steel plate40mmThickness of acctive crossbeam22mmThickness of steel plateoptionedWith chains tranport device

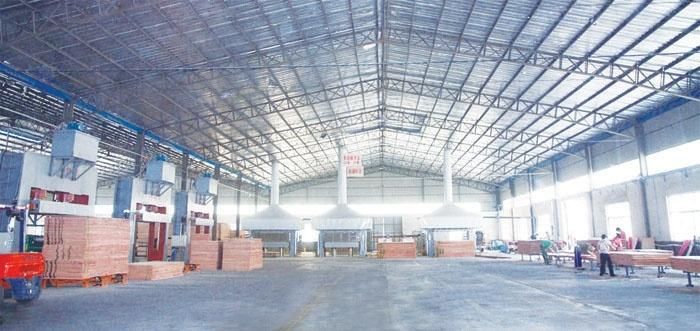

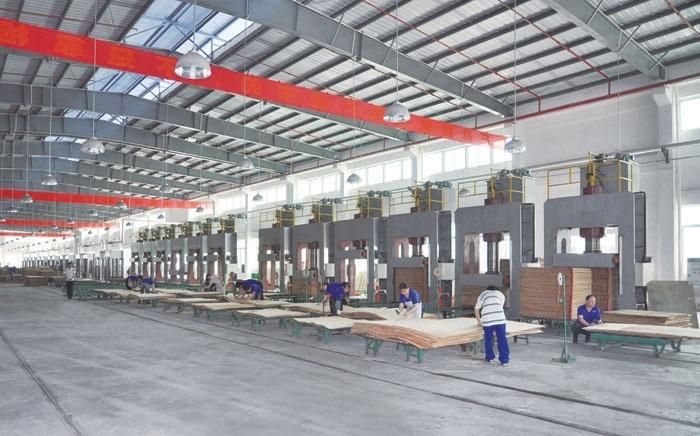

3. More Pictures:
